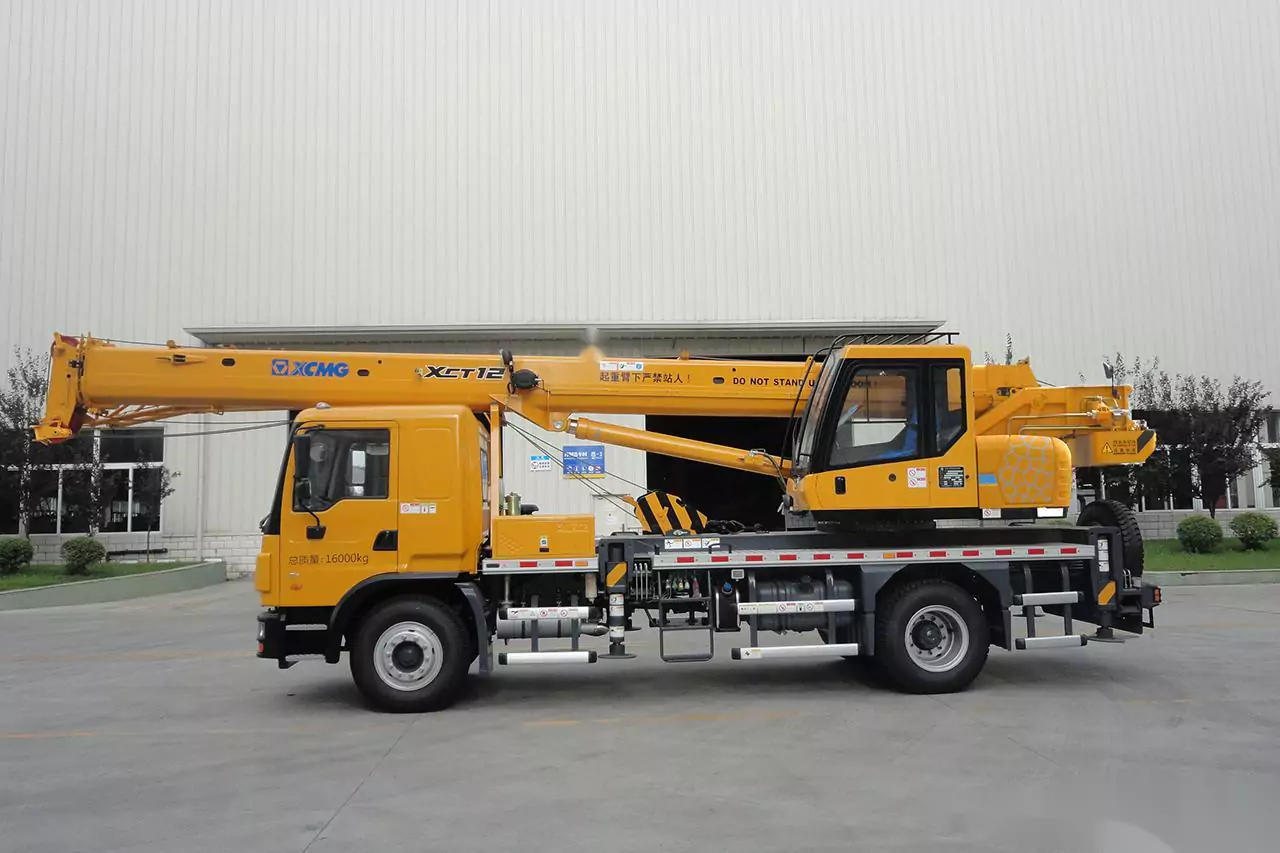

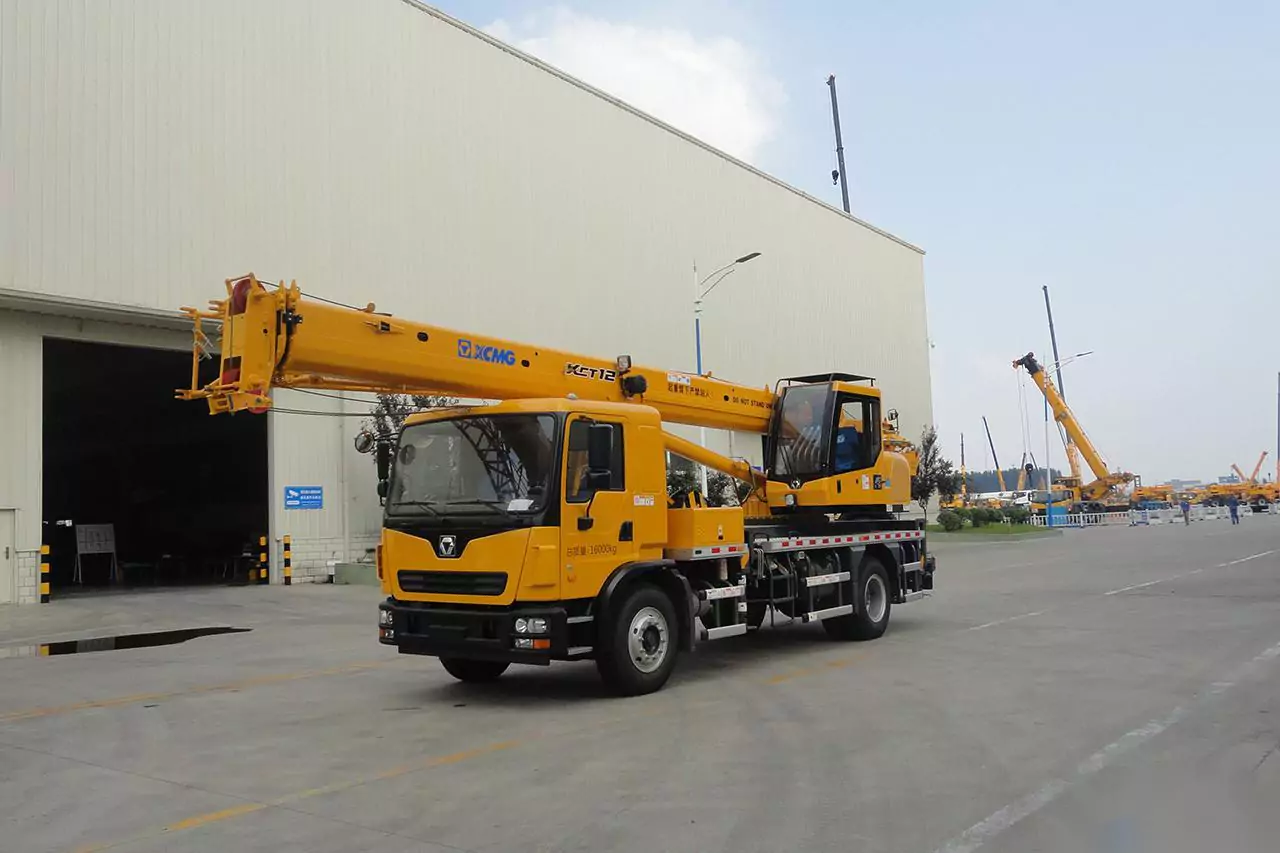

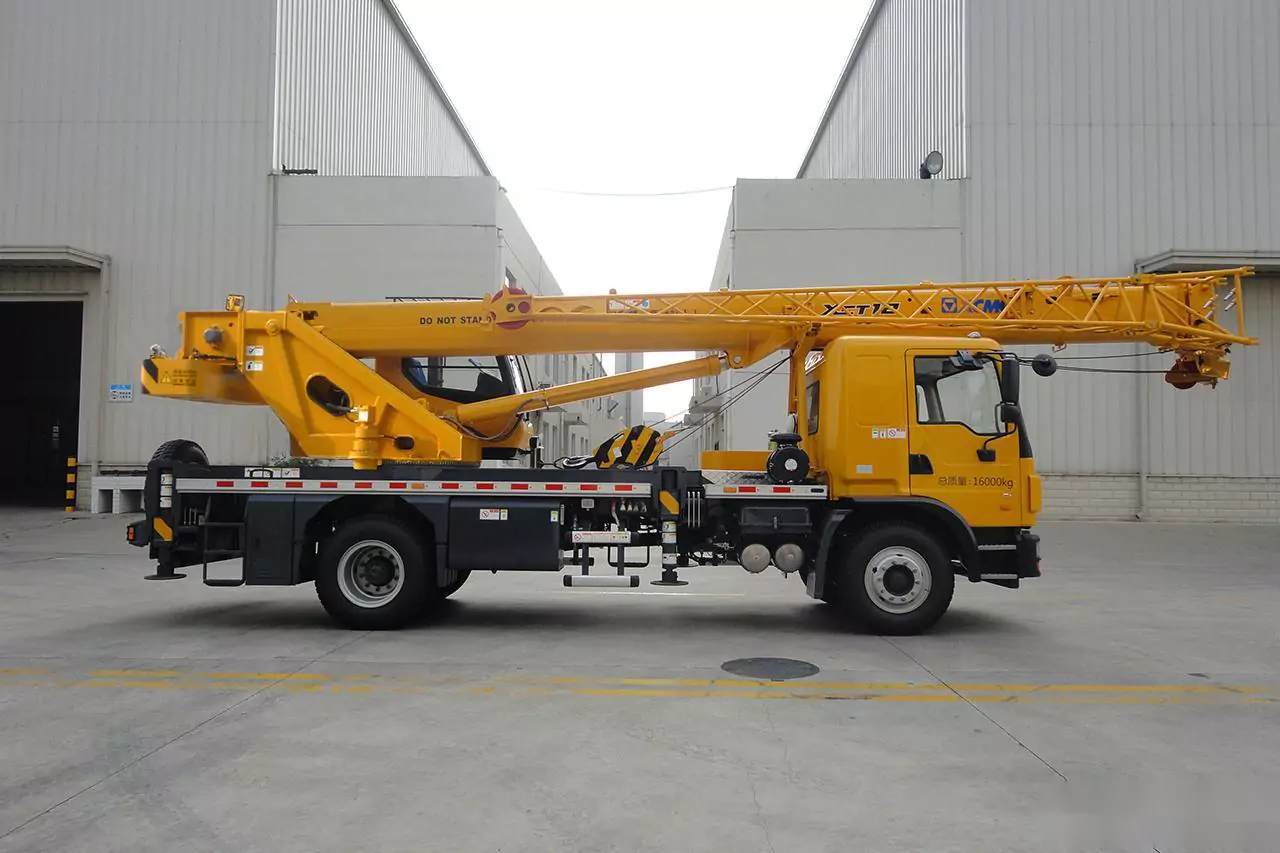

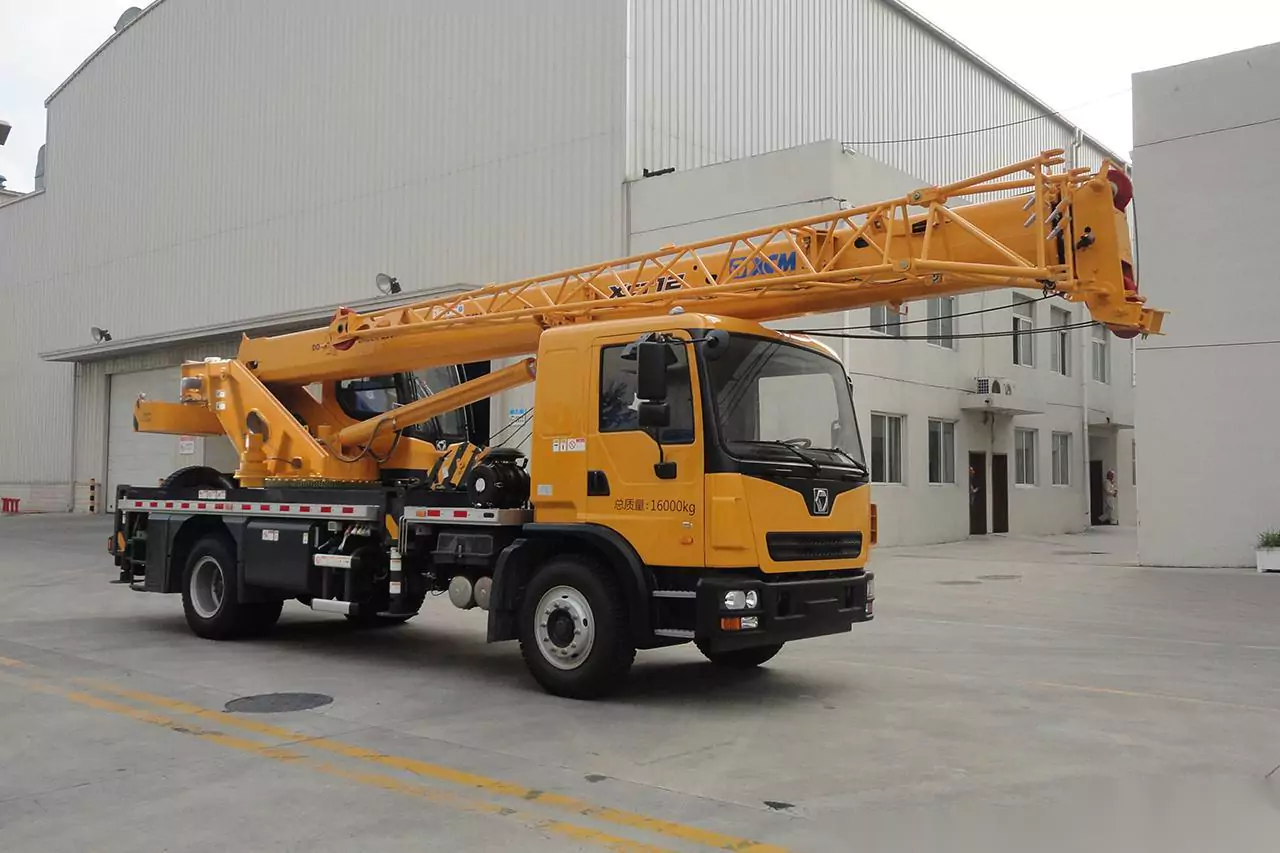

XCMG XCT12L3 Truck Crane

Home Product Truck Crane Crane

View larger image

XCMG XCT12L3 Truck Crane

Max Lifting Capacity：12 T

Fully-extended Boom：30.9 m

Engine Rated Power：170 Kw

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

XCMG XCT12L3 Truck Crane

XCT12L3 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

Performance Characteristics:

* 4-section boom of 30.5 m with eight side profile is adopted; the max. lifting load is 12 t; the max. lifting height is 38.1 m; the max. working radius is 26 m; The performance takes the lead comprehensively.

* New energy-saving hydraulic system with high efficiency, durability and fine control (lifting: 2.5m/min, slewing: 0.1°/s)

* Optimal transmission system first created in the industry contributes to strong off-road performance and low oil consumption; the grade-ability is 41%.

Parameter

Maximum Rated Lifting Capacity	12t
Fully-extended Boom	30.9m
Engine Rated Power	170kw
Maximum Travel Speed	90Km/h
Maximum Gradeability	41％
