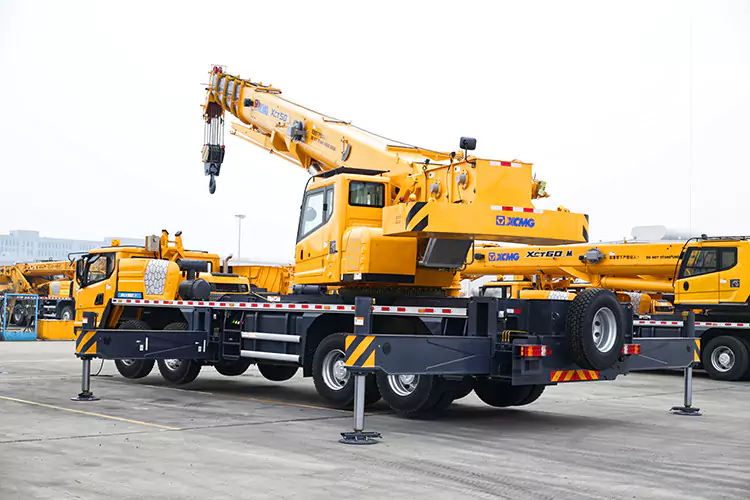

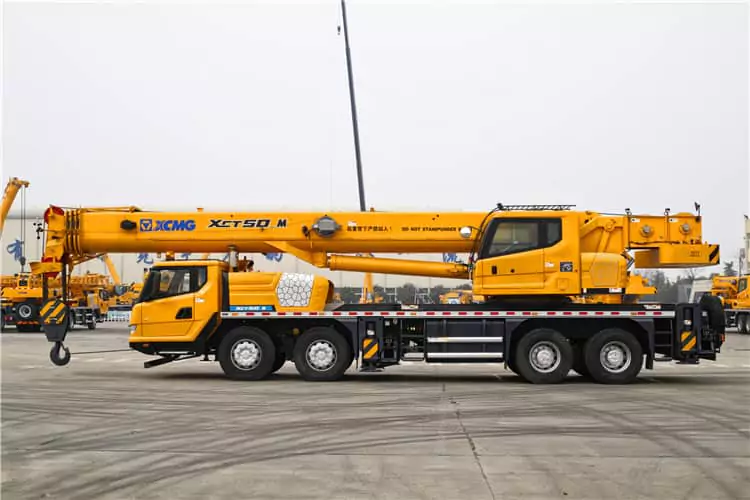

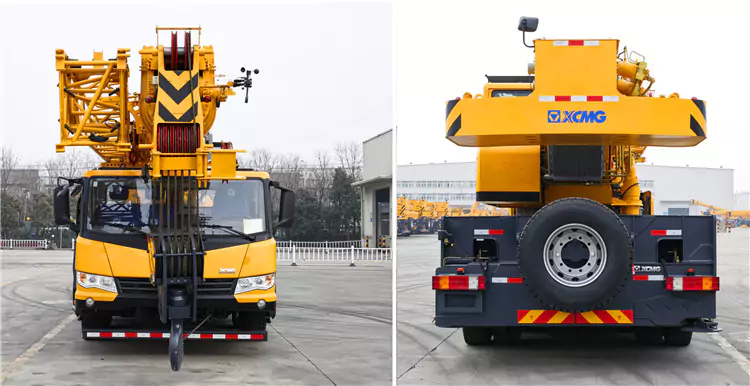

XCMG XCT50_M Truck Crane

XCT50_M Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

The machine is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 60℃.

1.Drive train

Heavy truck group engine, rated power 247kw, max. torque 1350N.m

Max. travel speed 90Km/h, Max. gradeability 38%

2.Slewing mechanism

Single-row four-point ball contact external tooth slewing ring, may continuously slew 360°.

3.Super lifting performance

5-section boom of 43.5 m with U-type profile is the longest of the same class in the industry; the max. parts of line is 12 for the main hook block. The performance is 8% higher than that of the competitors. The telescoping mode is updated from sequential telescoping to random telescoping. The change of boom length is more efficient, and the performance of medium-long boom is higher.

4.New energy-saving hydraulic system

The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized.

5.Low-speed large-torque power drive system

Resulting in perfect combination of high power performance and low fuel consumption, i.e.12% reduction in fuel consumption for driving, 15% for operation, and 15% improvement in power performance.
