XCMG XD123 Tandem Roller

Home Product Roller/Compactor Double Drum Roller

View larger image

XCMG XD123 Tandem Roller

Features

Engine Model：Cummins QSB4.5 (C160-30)

Operating Weight： 12300Kg
Axle Load Front：6150Kg

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

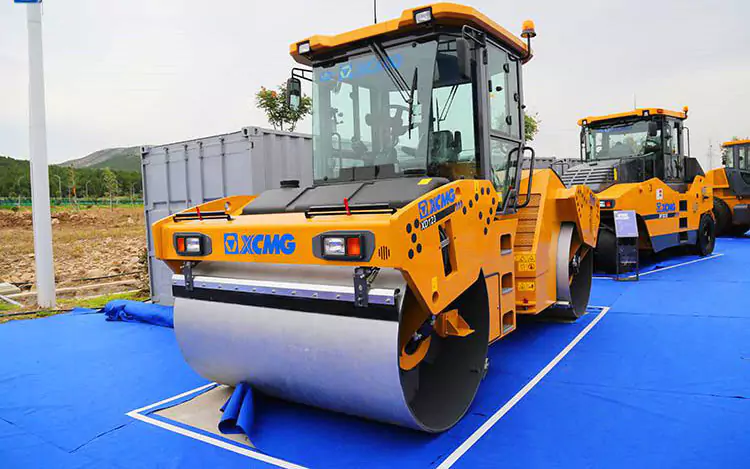

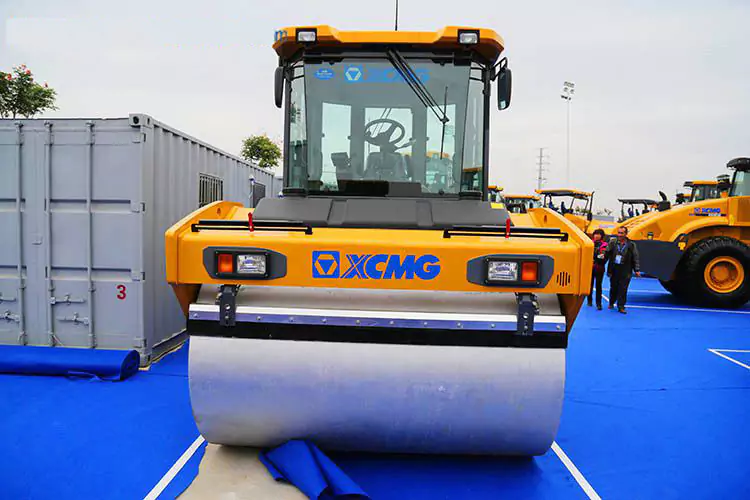

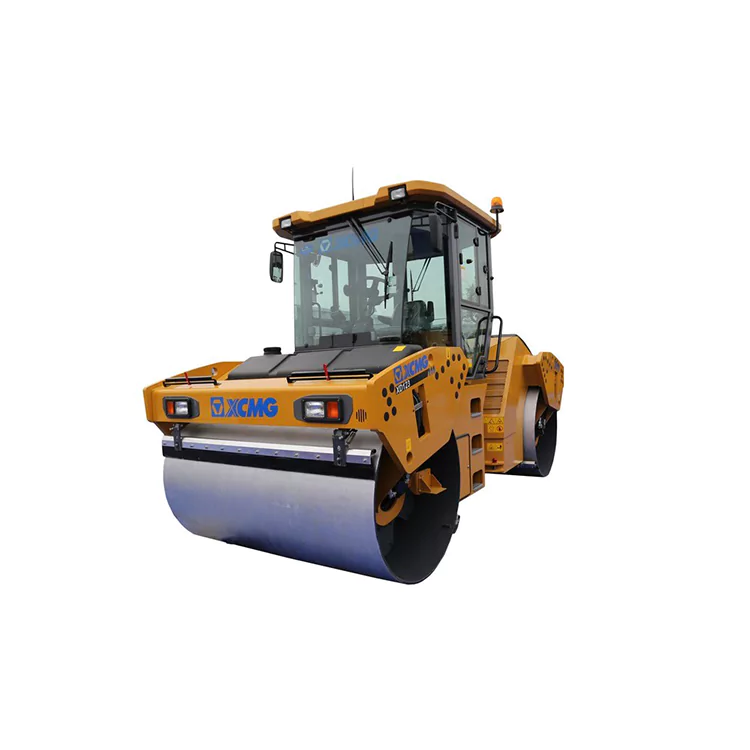

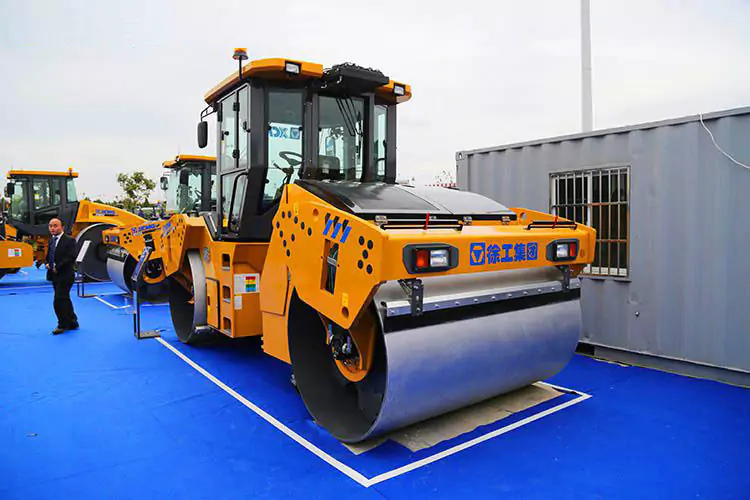

XCMG XD123 Tandem Roller

XD123 Vibratory roller is a type of asphalt compaction machinery product which is independently researched and developed by XCMG Road Machinery Business Unit based on decades of experience in compaction machinery research and development. It is designed for the compaction of asphalt pavement, asphalt layer of different materials and different thickness, especially suitable for roads, parking lots, airports and other large engineering projects, can also be used for compaction of roadbed and sub-base material, wide application scope.

* The console can rotate about 35 degrees, improving the driving comfort.

* The steering wheel can adjust angle according to the need of the driver.

* Control handle, display, etc. are arranged on the right side to broaden the front view.

* Speed frequency management system guides the user to compaction operation.

* Guiding the user to improve operation efficiency.

* The vibration drum realizes the center of four-in-one combination.

* Preventing the over-compaction and less-compaction.

Parameter

Operating weight	12300Kg
Axle load, front	6150Kg
Axle load, rear	6150Kg
Static linear load	283N/cm
Engine manufacturer	Cummins
Engine Model	QSB4.5 (C160-30)
Rated Power	119Kw/2200rpm
Speed range (1)(2)(3)	0-6/0-12/-km/h
Vibration frequency	45/55Hz
Vibration amplitude	0.75/0.30mm
Centrifugal force	85/140kN
Working width	2130mm
Max. gradeability	35%
Track radius, out	4800/6930mm
Overall dimensions	5146×2336×3076mm
