Features
Axle Load Front：6150Kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

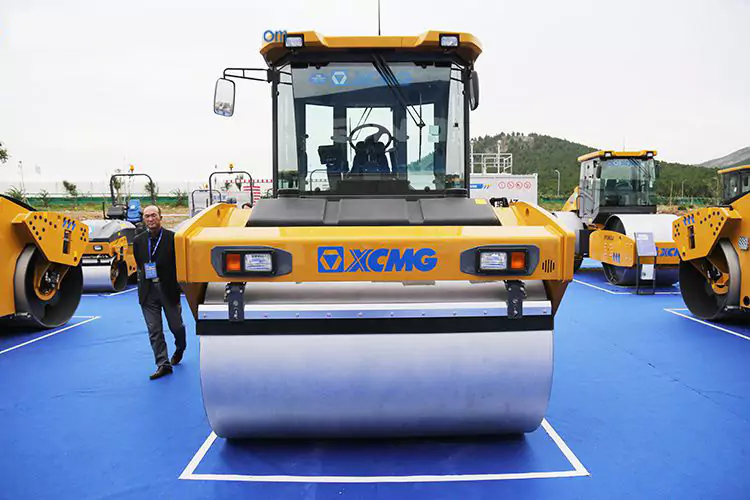

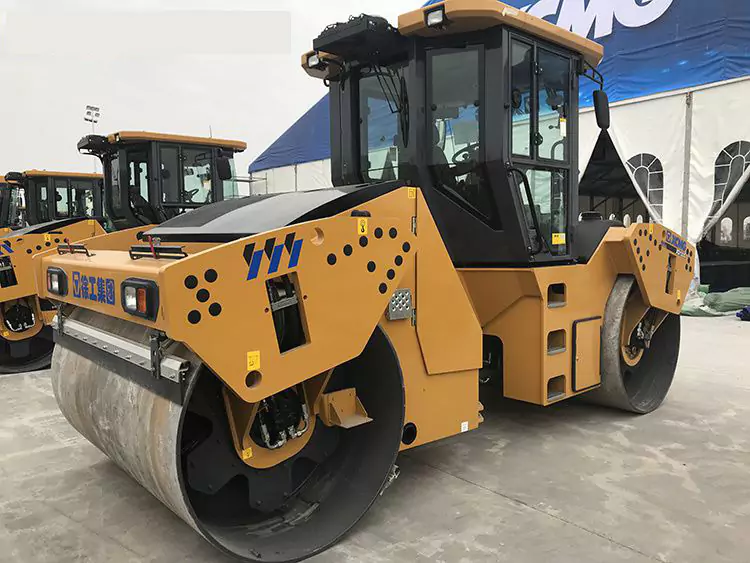

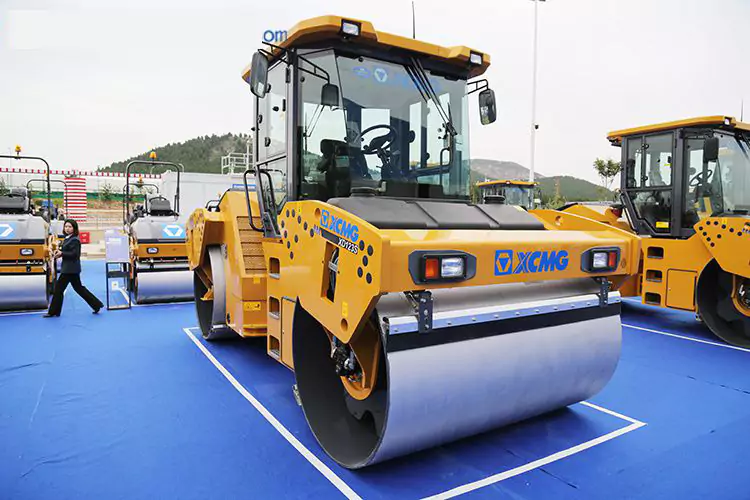

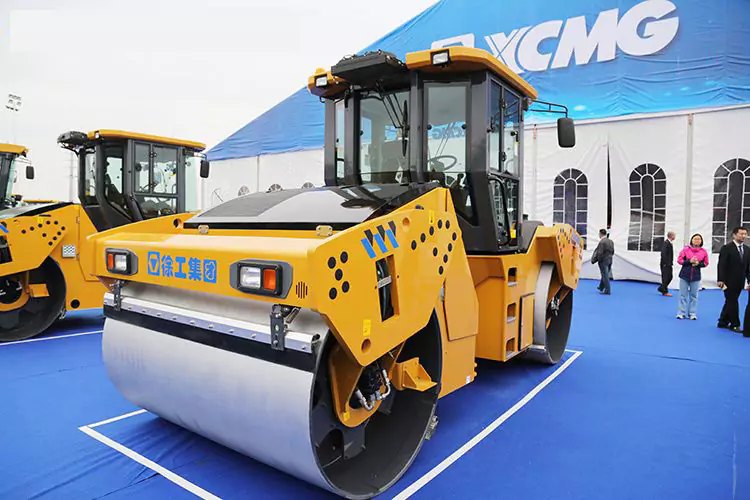

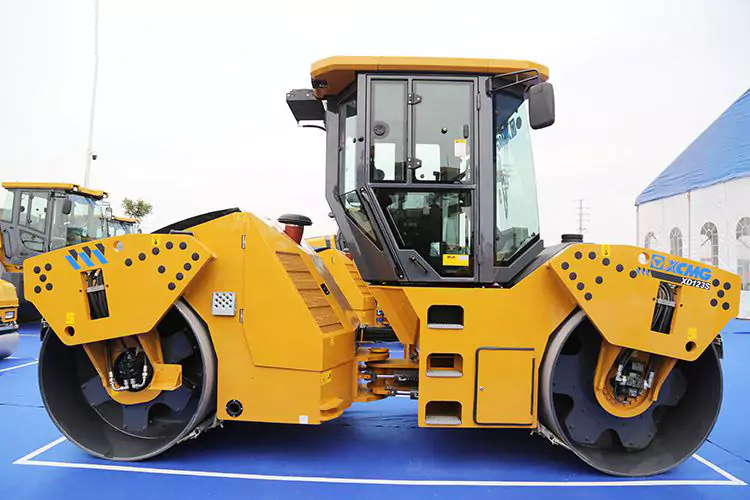

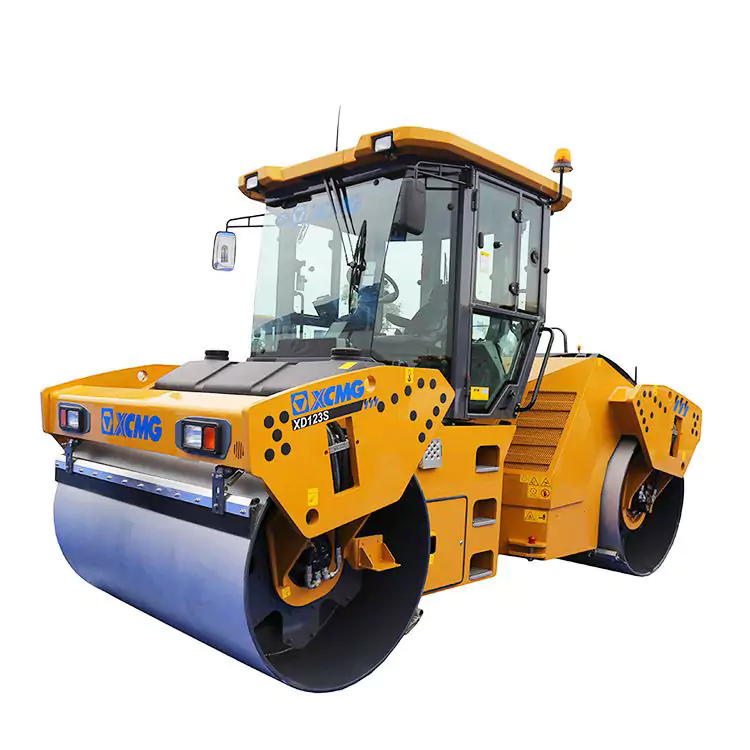

XCMG XD123S Tandem Roller
XD123S vibratory roller is designed intended for compacting asphalt pavement. It also can be used to compact layer of different materials and different thickness. With a wide application range it is very suitable for surface compaction work for public roads, parking lots, airports and other large engineering projects, as well as the compaction work on roadbed and sub-base material.
Parameter
| Operating weight | 12300Kg |
| Axle load, front | 6150Kg |
| Axle load, rear | 6150Kg |
| Static linear load | 279N/cm |
| Engine manufacturer | Cummins |
| Engine Model | QSB4.5 |
| Rated Power | 113Kw/rpm |
| Speed range (1)(2)(3) | 0-6/0-8/0-12km/h |
| Vibration frequency | 67/50Hz |
| Vibration amplitude | 0.3/0.8mm |
| Centrifugal force | 103/159kN |
| Working width | 2130mm |
| Max. gradeability | 35% |
| Track radius, out | 4470/6600mm |
| Overall dimensions | 5146×2336×3102mm |
