XCMG XD143 Tandem Roller

Features

Engine Model：Cummins QSB4.5-C160-30

Operating Weight： 14000Kg
Axle Load Front：7000Kg

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

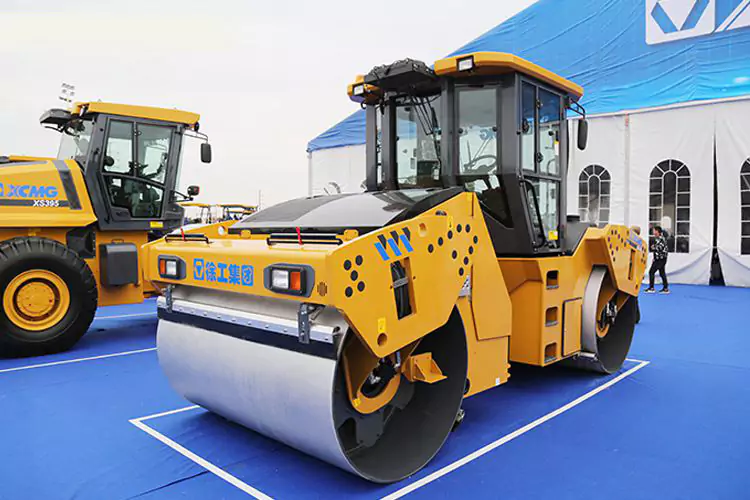

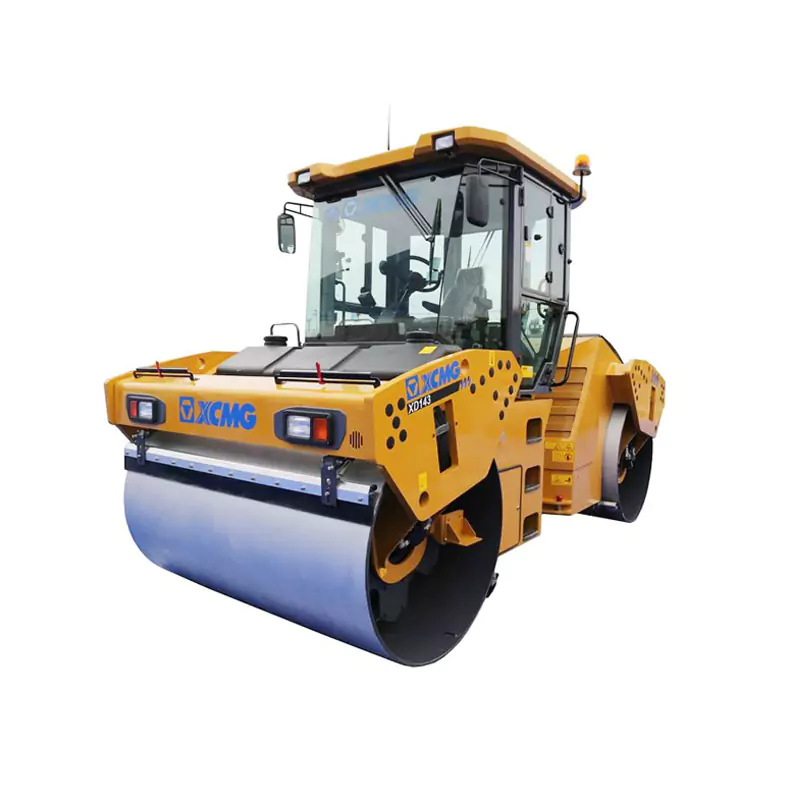

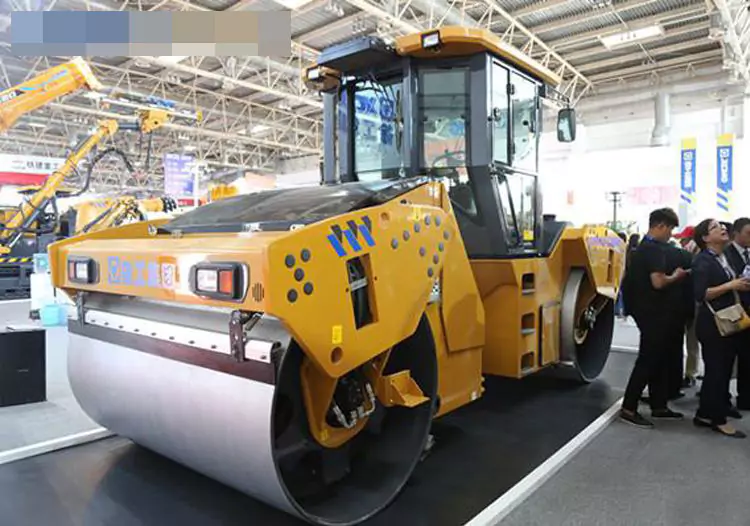

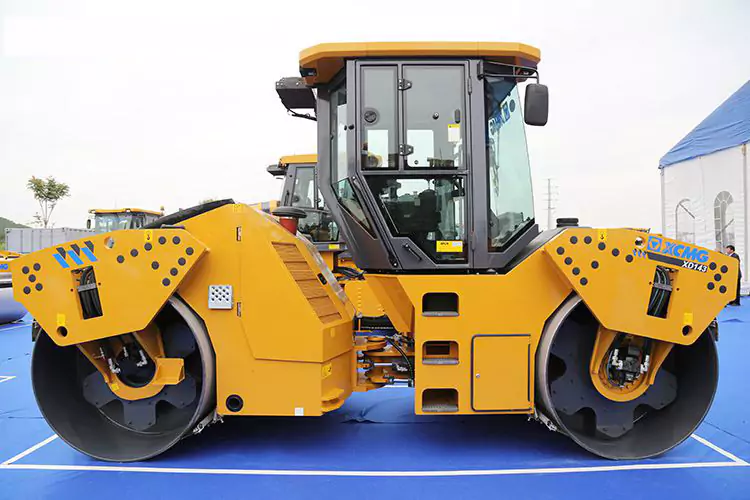

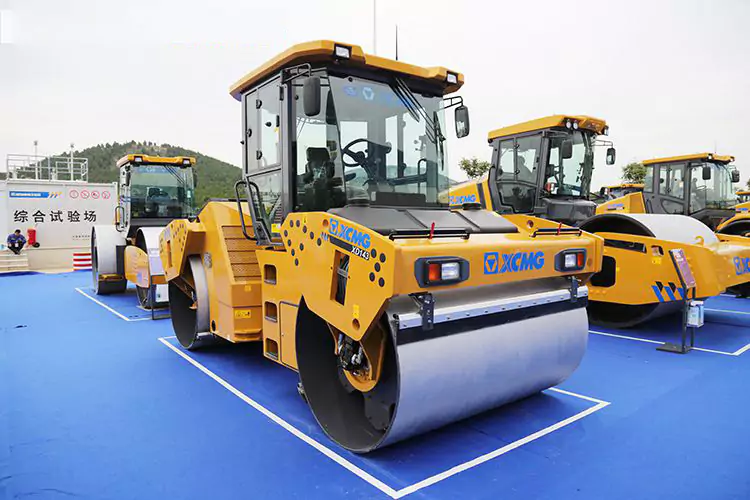

XCMG XD143 Tandem Roller

XD143 Vibratory roller is a type of asphalt compaction machinery product which is independently researched and developed by XCMG Road Machinery Business Unit based on decades of experience in compaction machinery research and development. It is designed for the compaction of asphalt pavement, asphalt layer of different materials and different thickness, especially suitable for roads, parking lots, airports and other large engineering projects, can also be used for compaction of roadbed and sub-base material, wide application scope.

Parameter

Operating weight	14000Kg
Axle load, front	7000Kg
Axle load, rear	7000Kg
Static linear load	322N/cm
Engine manufacturer	Cummins
Engine Model	QSB4.5-C160-30
Rated Power	119Kw/rpm
Speed range (1)(2)(3)	0-6/0-12/-km/h
Vibration frequency	45/55Hz
Vibration amplitude	0.85/0.35mm
Centrifugal force	158/98kN
Working width	2130mm
Max. gradeability	35%
Track radius, out	4800/6930mm
Overall dimensions	5146×2336×3096mm
