XCMG XD143S Tandem Roller

Features

Engine Model：Cummins QSB4.5

Operating Weight： 14000Kg
Axle Load Front：7000Kg

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

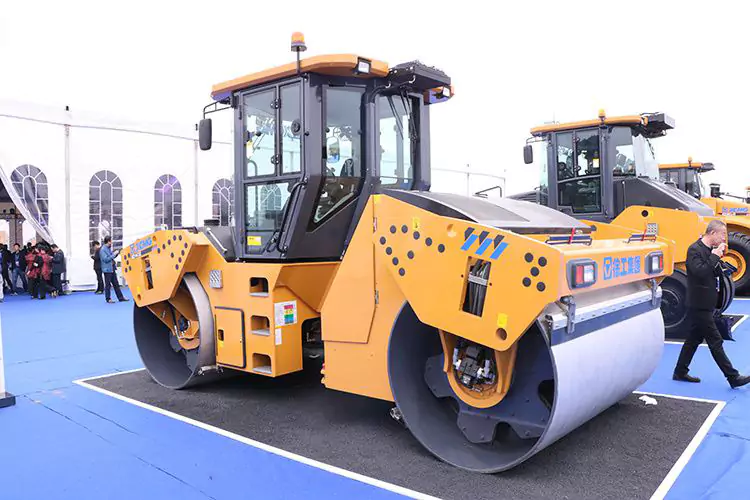

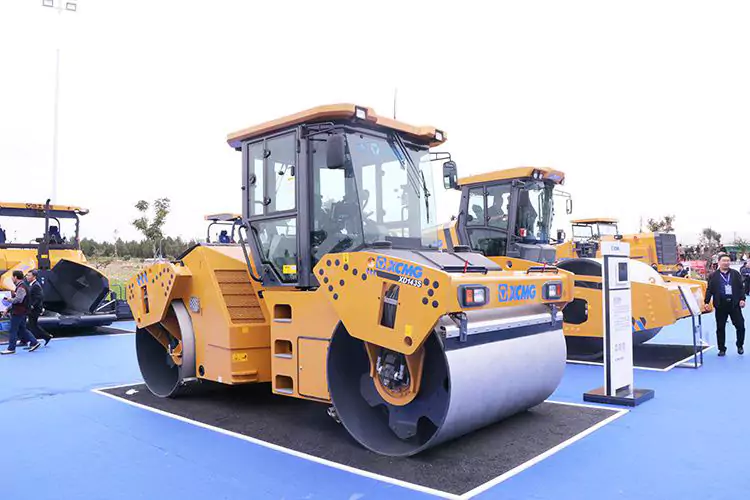

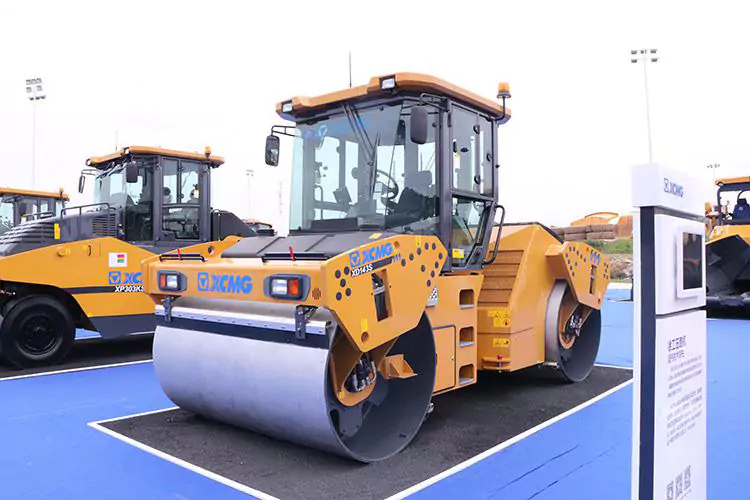

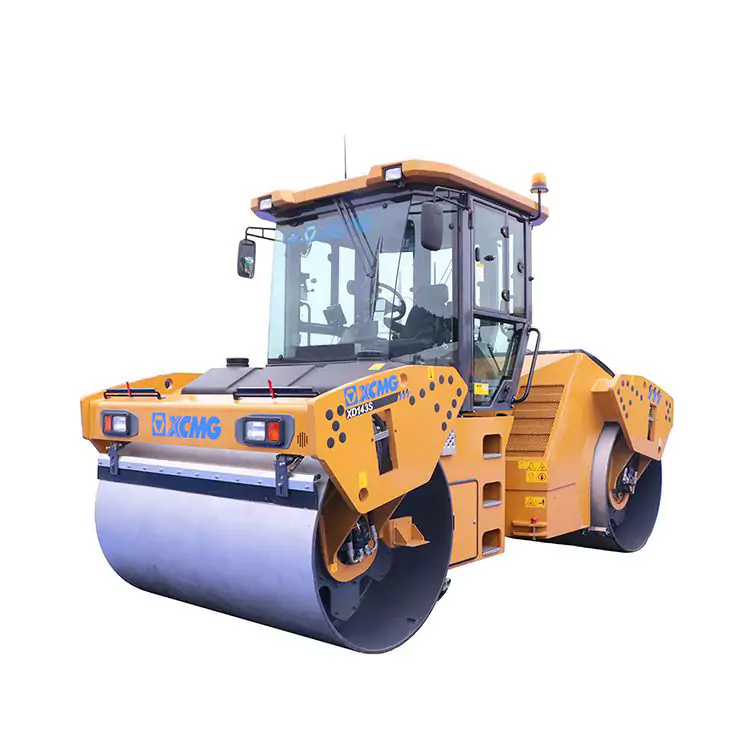

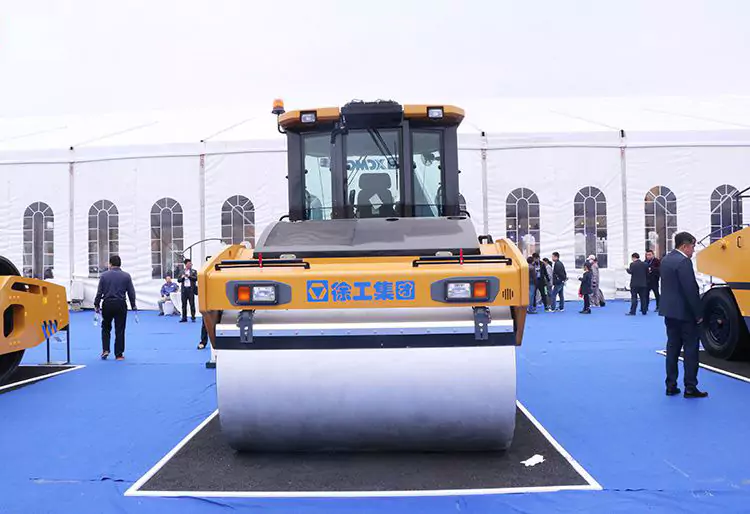

XCMG XD143S Tandem Roller

XD143S vibratory roller is designed intended for compacting asphalt pavement. It also can be used to compact layer of different materials and different thickness. With a wide application range it is very suitable for surface compaction work for public roads, parking lots, airports and other large engineering projects, as well as the compaction work on roadbed and sub-base material.

Parameter

Operating weight	14000Kg
Axle load, front	7000Kg
Axle load, rear	7000Kg
Static linear load	330N/cm
Engine manufacturer	Cummins
Engine Model	QSB4.5
Rated Power	113Kw/rpm
Speed range (1)(2)(3)	0-6/0-8/-km/h
Vibration frequency	67/50Hz
Vibration amplitude	0.3/0.8mm
Centrifugal force	110/170kN
Working width	2130mm
Max. gradeability	35%
Track radius, out	4470/6600mm
Overall dimensions	5146×2336×3102mm
