Bucket Capacity:3.8-4.5m³
Engine Power:566kw
Operating Weight :65800kg
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

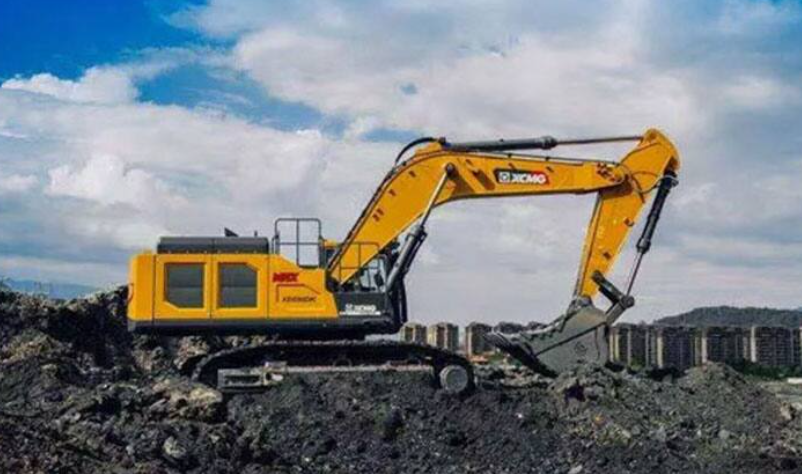

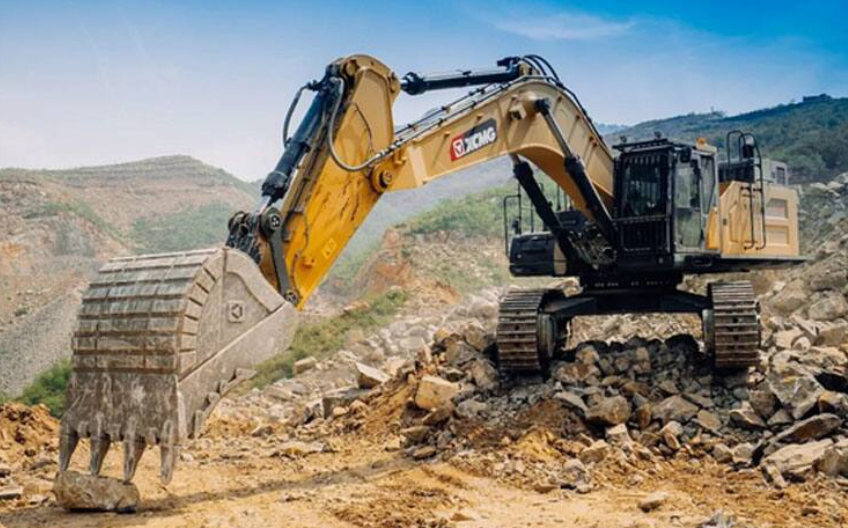

XCMG XE690DK Crawler Excavator
XCMG XE690DK MAX large excavator is customised with high power, large displacement, low-speed and high torque heavy-duty engine which meets the National III emission standard. It has high reliability, high responsiveness, double supercharging, strong power, and sufficient power reserve, which is extremely suitable for heavy-duty working conditions such as mining operations. Extra-long warranty period significantly reduces the whole-life maintenance cost of the machine.
1: Customised heavy-duty engine with high power, large displacement, low speed and high torque, which meets the National III emission standard;
2: High reliability, high responsiveness, double supercharging, strong power, sufficient power reserve, extremely suitable for mining operations and other heavy-duty working conditions; long warranty period, significantly reducing the whole machine life maintenance costs.
3:Configuration of large displacement, large diameter electronically controlled hydraulic system, the application of advanced electric flow segmented control system, the whole machine operation is fast, efficient, accurate and smooth.
4:Split independent intelligent temperature control system, fluid temperature control power distribution on demand, the machine noise is lower, more efficient, energy saving, maintenance is easier.
5:Operation mode bionic memory function, compound action, responsiveness, impact of high degree of freedom personalised adjustment, support for a variety of operating habits demand, rapid identification of heavy-duty working conditions, digging more powerful.
6: DC parallel dual air filter, mining dust, high temperature environment adaptability, longer life, better filtration effect.7: Bucket working device, according to the need to support the high and low platform operating mode, to meet the needs of different working conditions, effectively improve operational efficiency and save energy.
8: Mining strengthened adjustable chassis, high power travelling reducer, the whole machine has more traction, smoother operation and more convenient transport.
Parameter
Operating weight | 65800Kg |
Bucket capacity | 3.8-4.5m³ |
Engine Model | Import engine |
Rated power/speed | 566Kw/2100rpm |
Maximum torque/speed | 3000N.m/1500rpm |
Travel speed(H/L) | 4.9km/2.9h |
Swing speed | 7.3r/min |
Displacement | 16.72L |
Bucket digging force | 382Kn |
Arm digging force | 318Kn |
