View larger image
Load capacity： 230kg
Load capacity of extended platform ：115kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

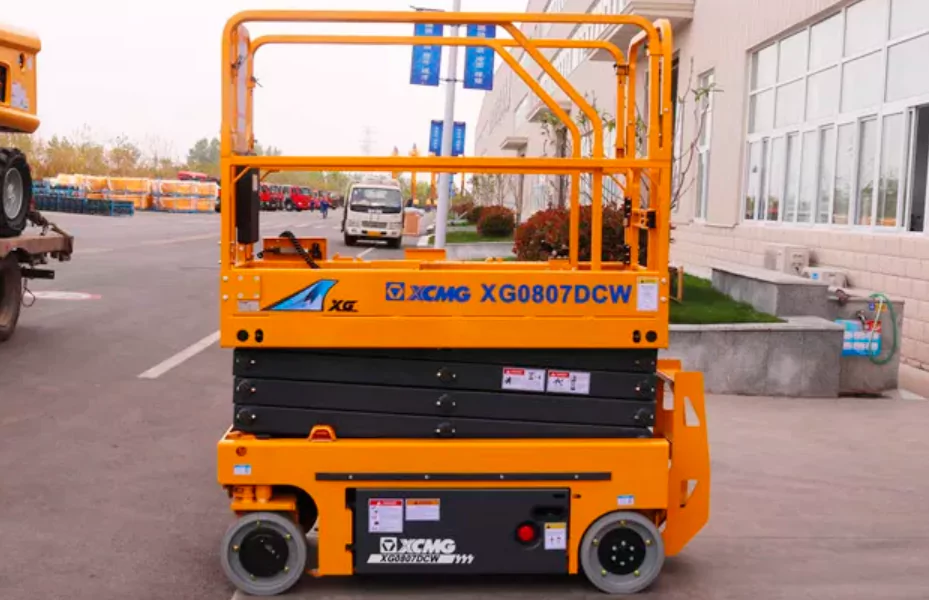

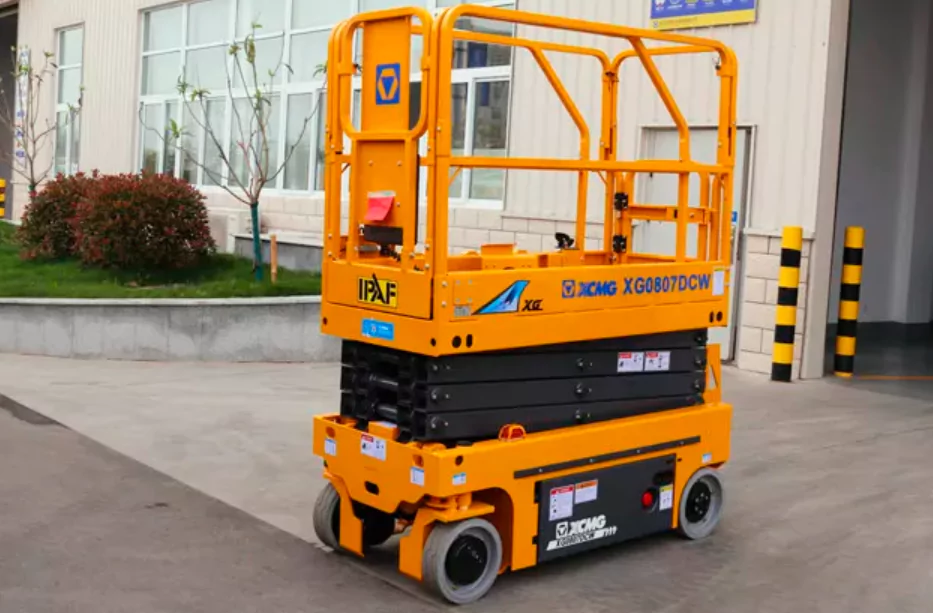

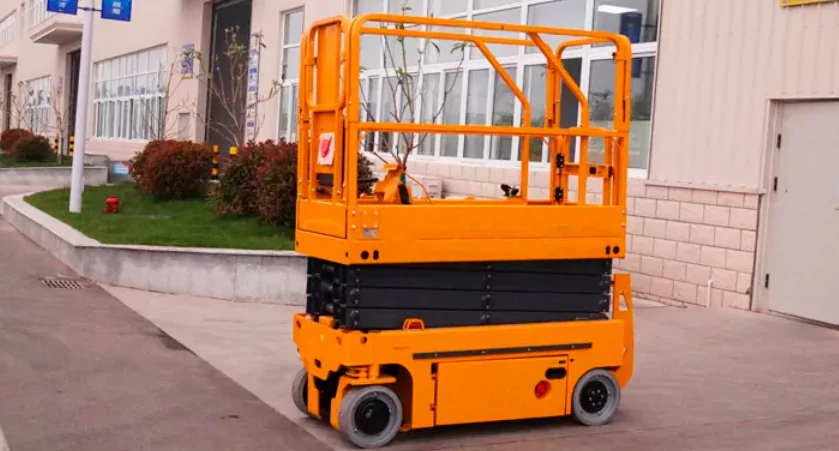

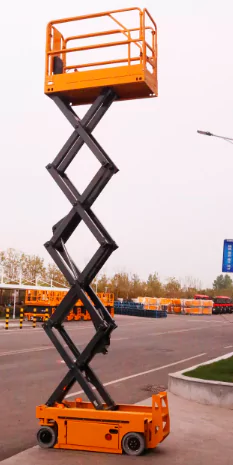

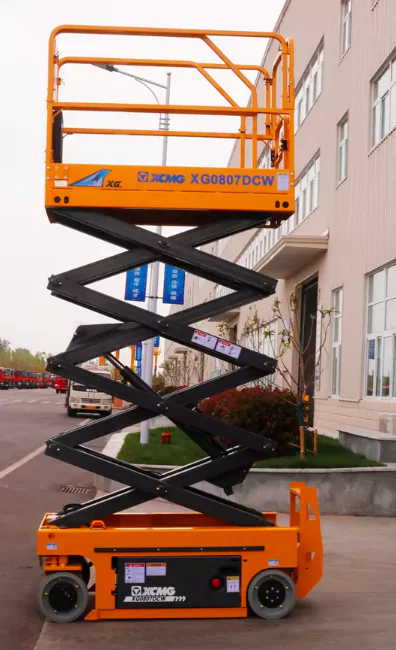

XCMG XG0807DC Scissor Lift
Advantages and features
1.Effective and energy-saving electric-drive system features zero emission and low noise.
2.Active protective mechanism such as pothole protective mechanism and the self-developed safety control system meeting the customer needing for safety, reliability and intelligence.
3.Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier. “Zero Turning Radius ”is unique and enable machine to corner in narrow room.
4.Max. payload at 230kg, leading the industry.Maximum traveling speed 4.5 km/h and 25% gradeability make the driving easier.
Parameter
| Load capacity | 230kg |
| Load capacity of extended platform | 115kg |
| Max.Occupant Capacity | / |
| Max.Working height | 7.8m |
| Max.Platform height | 5.8m |
| Overall length（no ladder） | / |
| Overall width | / |
| Overall height（platform folded） | / |
| Working platform dimension（Length x Width） | 1670x740x1235mm |
| Length of extension platform | 900mm |
| Min.ground clearance（pit protector rising/descending） | / |
| Wheel base | 1360mm |
| Min.turning radius（inner/outer wheel） | / |
| Lifting motor(kW) | / |
| Max.Traveling speed at low level | 4.5km/h |
| Max.Traveling speed at high level | 0.8km/h |
| Lifting/Descending duration of platform | / |
| Max.gradeability | 25% |
| Max. Inclination（side/forward and backward） | / |
| Battery(v/Ah) | 24V |
| Charger(v/A) | 225Ah |
| Tire specification | / |
| Total machine weight | 1550kg |
Request a Quote
