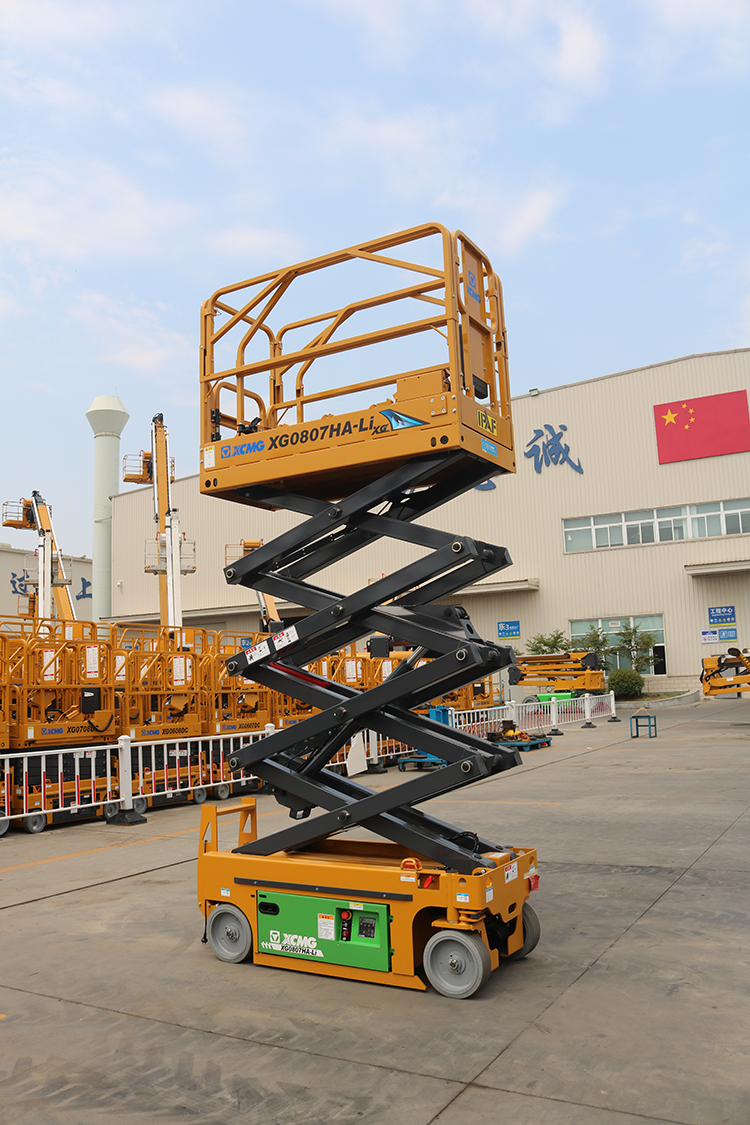

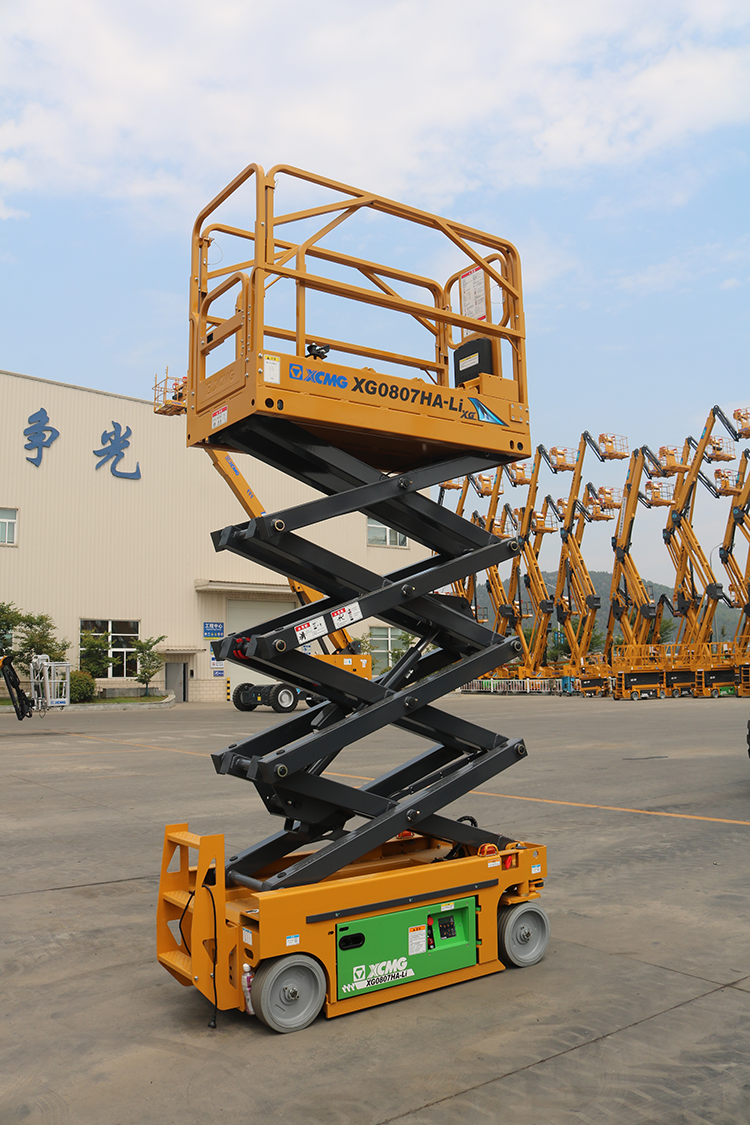

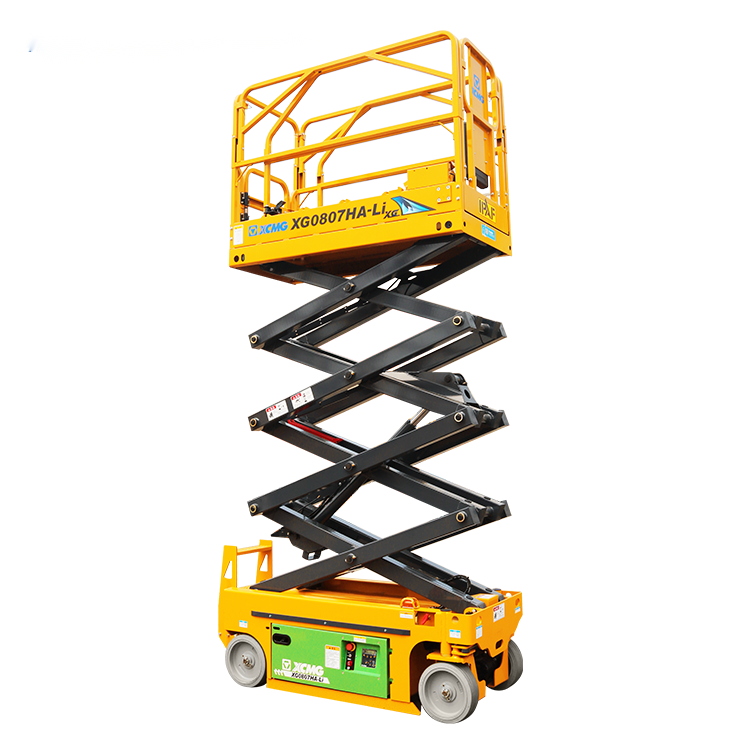

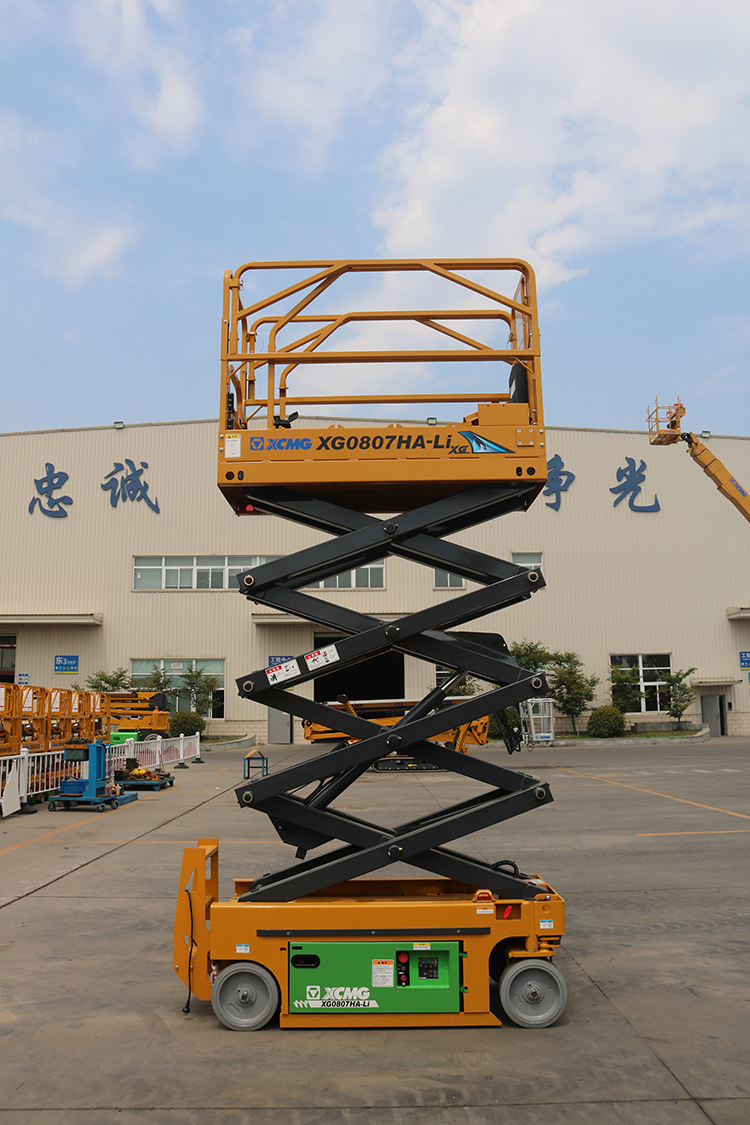

XCMG XG0807HA-Li Scissor Lift
VS


Load capacity: 230kg

Load capacity of extended platform :115kg


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

XCMG XG0807HA-Li Scissor Lift


Advantages:

1. The electric drive system of zero emission, low noise, high efficiency, and high energy-conservation is applied and the traceless tires are equipped to realize environmental-friendly and convenient constructions in enclosed places, including office buildings, hospitals, and schools, to minimize the environmental influence.

2. The active safety protection mechanisms, including pit protection mechanism, are applied and the independently designed safety control system is installed to sufficiently meet the multiple needs (Including safety, reliability, and intelligence) of customers with humanized design thinking, complete safety protection, and rich optional equipment combination.

3. The narrow structure design enables the machine to pass through single gateway with ease and the folding railings are used to realize easier transportation and translocation.

4. The small turning radius design can guarantee flexible use in narrow spaces.

5. Load capacity at 230kg is leading in this field.

6. The 4.5km/h dirve speed and 25% gradeability make the operations easier.

Parameter

Load capacity230kg
Load capacity of extended platform115kg
Max.Occupant Capacity2
Max.Working height7.8m
Max.Platform height5.8m
Overall length(no ladder)1900mm
Overall width760mm
Overall height(platform folded)2160mm
Working platform dimension(Length x Width)1670 x 740mm
Length of extension platform900mm
Min.ground clearance(pit protector rising/descending)71/20mm
Wheel base1360mm
Min.turning radius(inner/outer wheel)0/1.75m
Lifting motor(kW)3.3kw
Max.Traveling speed at low level4.5km/h
Max.Traveling speed at high level0.8km/h
Lifting/Descending duration of platform/
Max.gradeability25%
Max. Inclination(side/forward and backward)/
Battery(v/Ah)4 x 6/280V/Ah
Charger(v/A)24/30V/A
Tire specification/
Total machine weight1550kg
