Load capacity: 230kg
Load capacity of extended platform :115kg
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

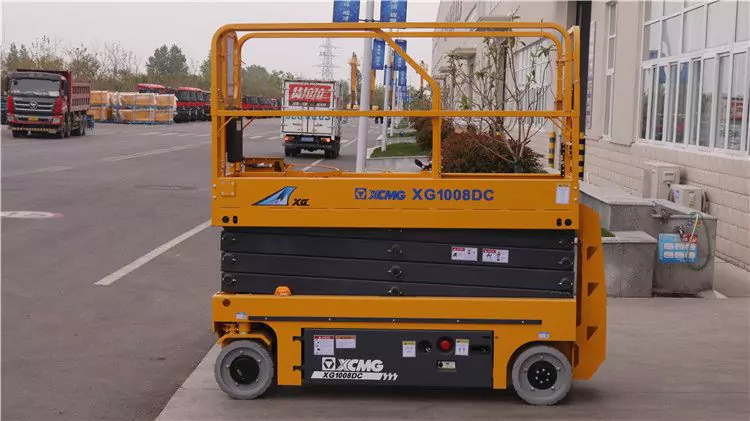

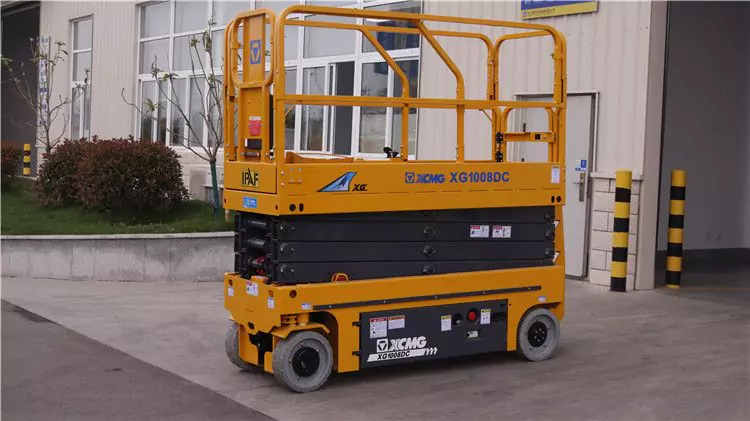

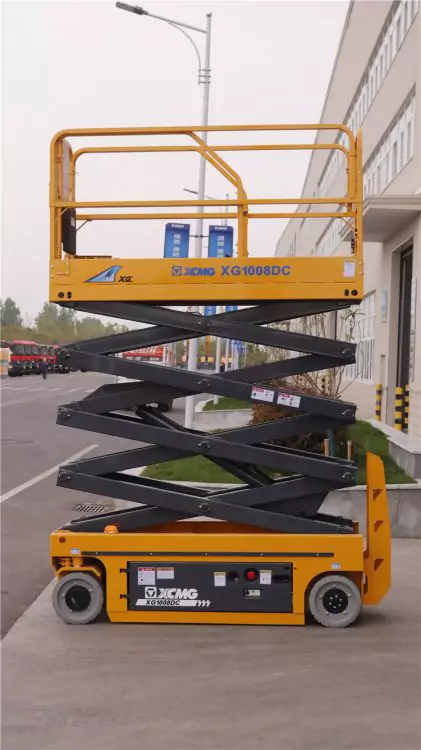

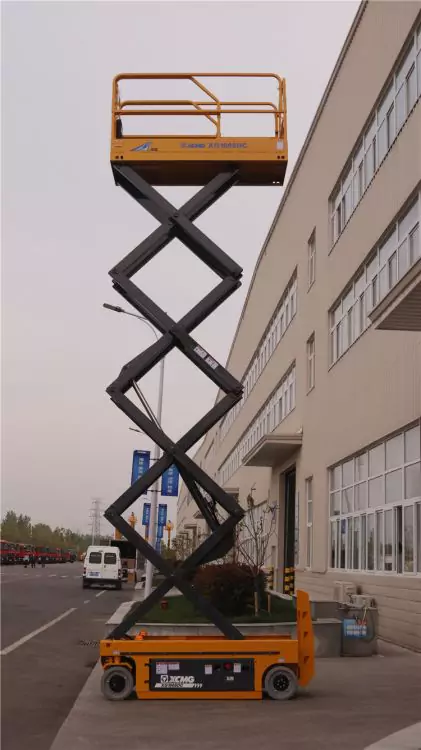

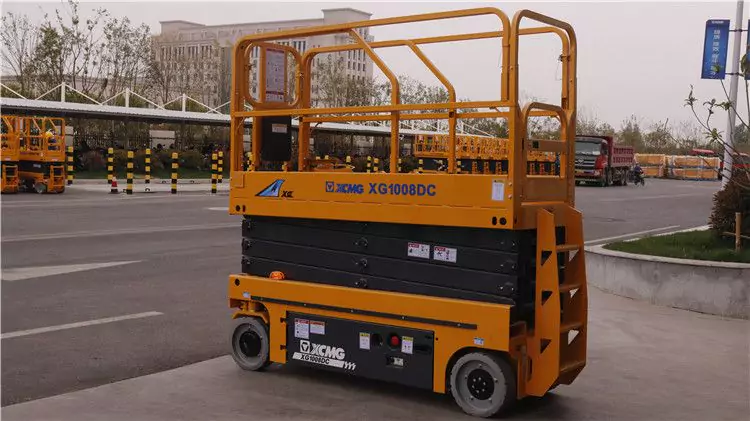

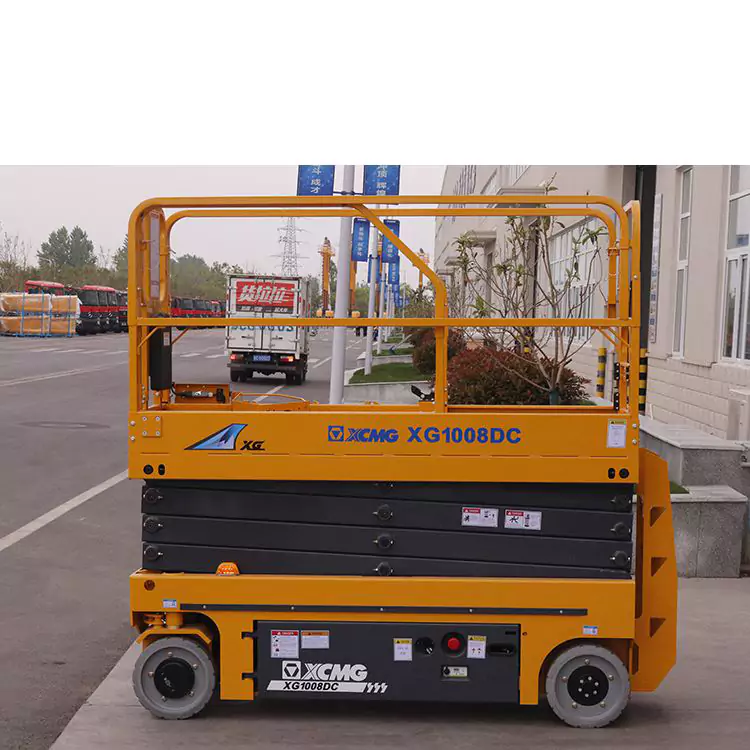

XCMG XG1008DC Scissor Lift
Parameter
Load capacity | 230kg |
Load capacity of extended platform | 115kg |
Max.Occupant Capacity | / |
Max.Working height | 10m |
Max.Platform height | 1.2m |
Overall length(no ladder) | / |
Overall width | / |
Overall height(platform folded) | / |
Working platform dimension(Length x Width) | 2270x810x1246mm |
Length of extension platform | 900mm |
Min.ground clearance(pit protector rising/descending) | 100/20mm |
Wheel base | 1877mm |
Min.turning radius(inner/outer wheel) | 0/2.3m |
Lifting motor(kW) | 3.3/0.75kw |
Max.Traveling speed at low level | 4km/h |
Max.Traveling speed at high level | 0.8km/h |
Lifting/Descending duration of platform | / |
Max.gradeability | 25% |
Max. Inclination(side/forward and backward) | / |
Battery(v/Ah) | / |
Charger(v/A) | / |
Tire specification | / |
Total machine weight | 2150kg |
Request a Quote
