View larger image
Load capacity： 450kg
Load capacity of extended platform ：115kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

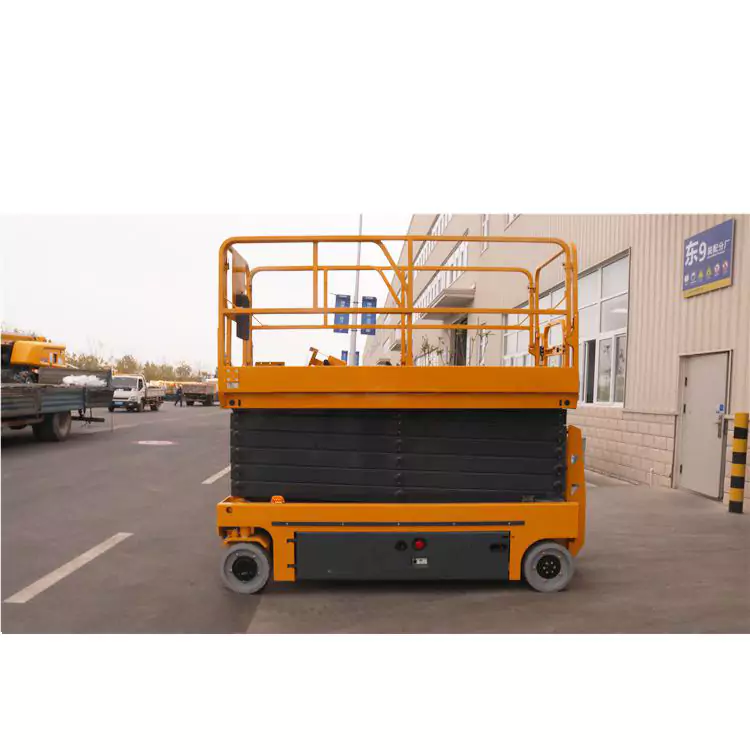

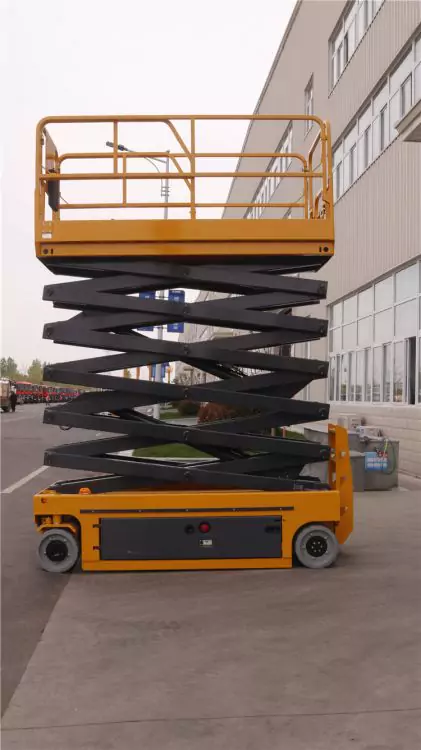

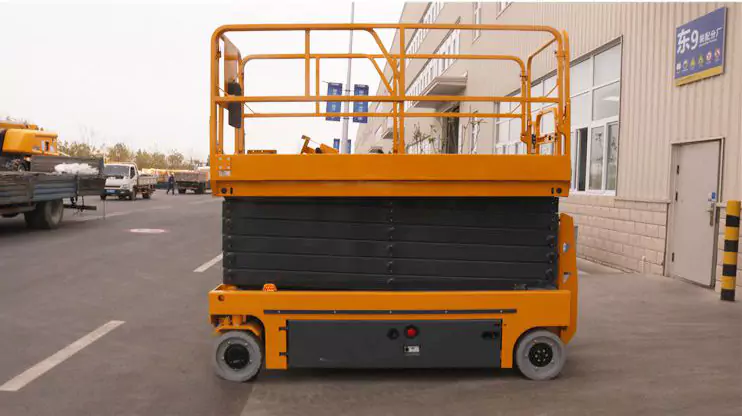

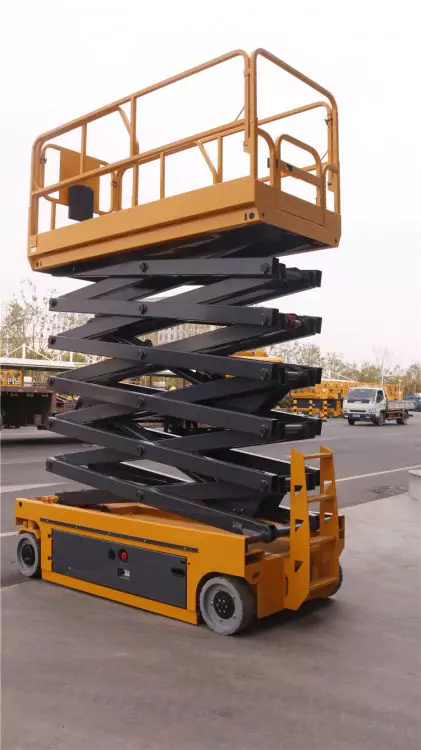

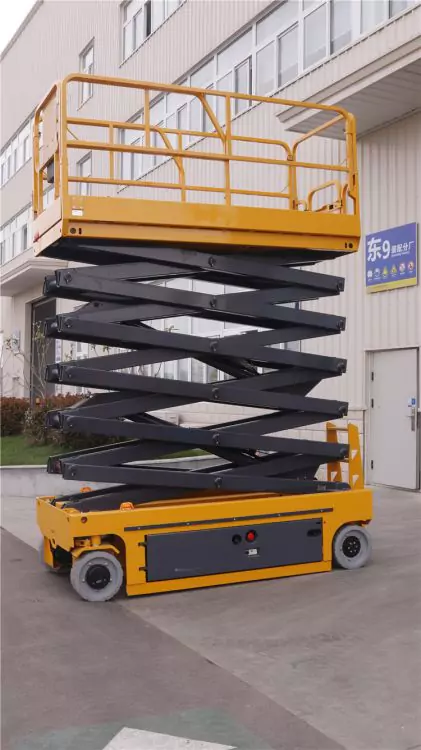

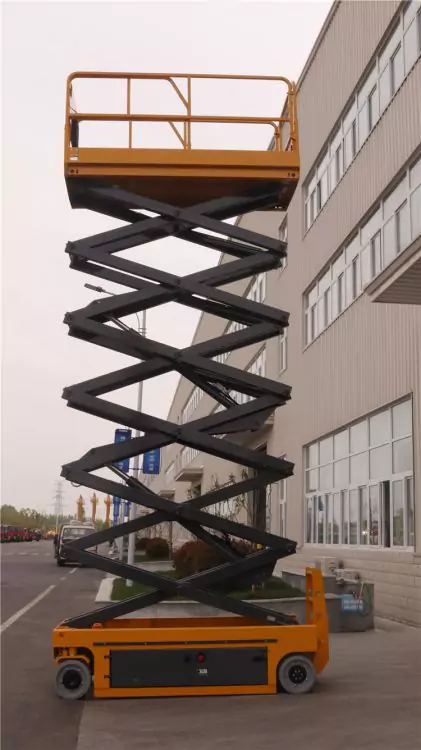

XCMG XG1012DC Scissor Lift
XG1012DC is a new elevating work platform developed and manufactured by XCMG, with working height at 10m, overall width at 1.17m, load capacity at 450kg, platform extending length at 0.9m, and gradeability at 25%.
Featuring compact structure, advanced performances, and complete safety protection, this machine is a special for building construction.
Featuring zero-emission, high environmental-friendliness, stable lifting & lowering, easy operations, and convenient maintenances, it can be extensively applied in factories, warehouses, airports, and stations and is especially suitable for narrow working environments.
Parameter
| Load capacity | 450kg |
| Load capacity of extended platform | 115kg |
| Max.Occupant Capacity | / |
| Max.Working height | 10m |
| Max.Platform height | 1.2m |
| Overall length（no ladder） | / |
| Overall width | / |
| Overall height（platform folded） | / |
| Working platform dimension（Length x Width） | 2277x1120x1263mm |
| Length of extension platform | 900mm |
| Min.ground clearance（pit protector rising/descending） | 100/20mm |
| Wheel base | 1877mm |
| Min.turning radius（inner/outer wheel） | 0/2.3m |
| Lifting motor(kW) | 3.3/0.75kw |
| Max.Traveling speed at low level | 4km/h |
| Max.Traveling speed at high level | 0.8km/h |
| Lifting/Descending duration of platform | / |
| Max.gradeability | 25% |
| Max. Inclination（side/forward and backward） | / |
| Battery(v/Ah) | / |
| Charger(v/A) | / |
| Tire specification | / |
| Total machine weight | 2620kg |
Request a Quote
