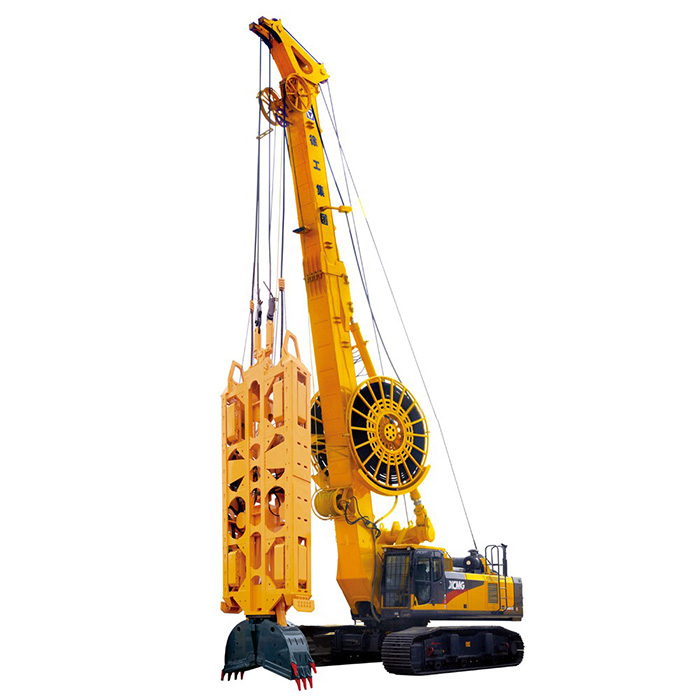

XCMG XG85S Underground Diaphragm Wall Equipment
VS


Wall depth:80m

Wall thickness:800-1800mm

Max.pull-down piston pull:750kN


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

XCMG XG85S Underground Diaphragm Wall Equipment


The swing-type luffing connection frame does not require disassembly and assembly during transition and is easy to transport; the XG85S underground continuous wall hydraulic grab chassis has an unfolded width of 3500-4900mm and a wheelbase of 5600mm, the largest size of the same model, making the grabbing working condition more stable; the upper module The double-winch single-row rope structure has a long service life, and the whole machine is easy to disassemble and transport; the main valve, main pump and winch motor adopt the Rexroth brand, which has good reliability; it has winch-lowering potential energy recovery technology and has good energy-saving effect; high / Medium/low three-speed controlled lowering technology, the maximum lowering speed can reach 80m/min, high efficiency in deep trench construction, strong ability to grab hard strata; independent cooling system, fan speed automatically adjusts with oil temperature, good energy saving effect; high-rise The plate main beam has a small turning radius and strong load-bearing capacity; it is equipped with folding maintenance pedals.

Parameter

Wall depth80m
Wall thickness800-1800mm
Max.pull-down piston pull750kN
Max.pull/push speed/
Grab opening time/
Grab closing time/
Hydraulic system pressure/
Work radius4400mm
Engine/
Model/
Rated Power345Kw
Undercarrige/
Max.traveling speed/
Max.grade ability/
Min.clearance/
Track shoe width800mm
Distance between tracks3500~4900mm
Dimension/
Working condition10800×4900×18900mm
Transporation condition/
Overall Drilling Weight100t
