Max. Working Height:16.05m
Max. Platform Height:14.05m
Max. Working Range:8.22m
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

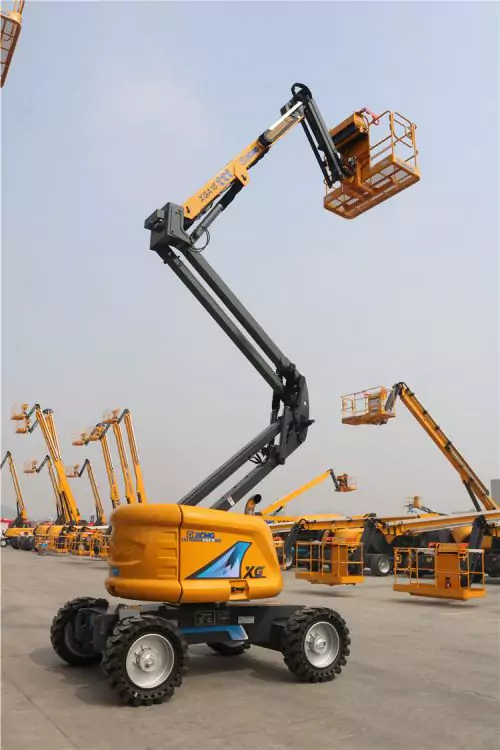

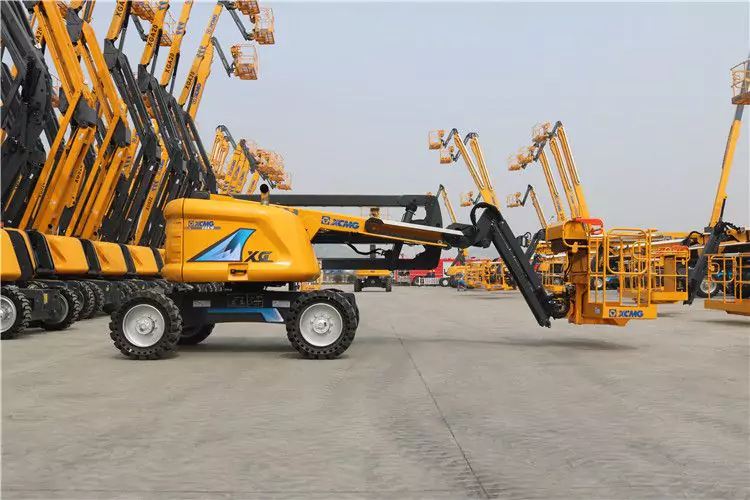

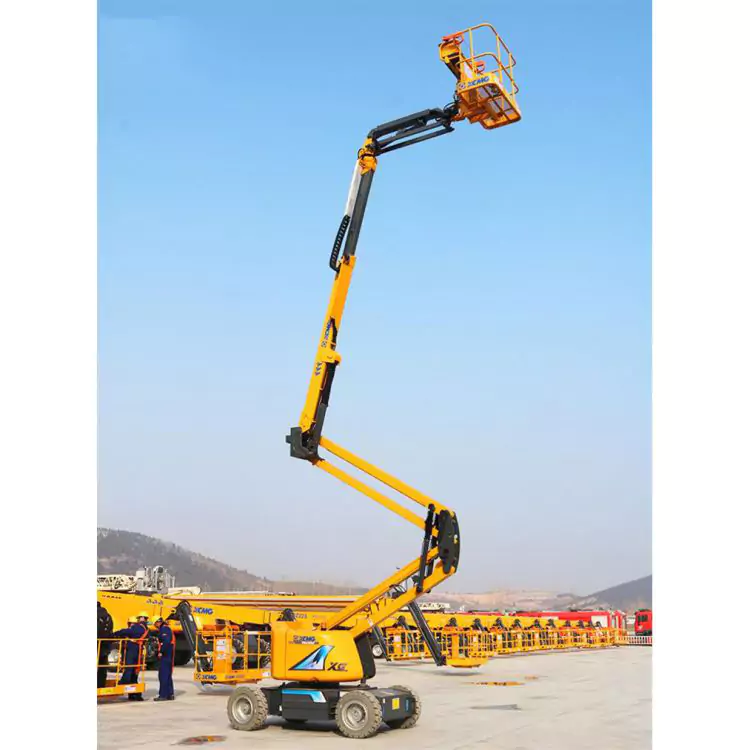

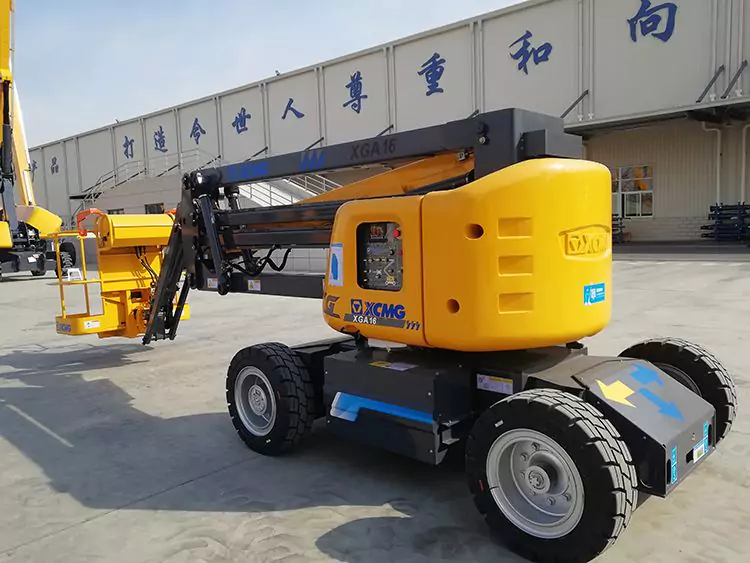

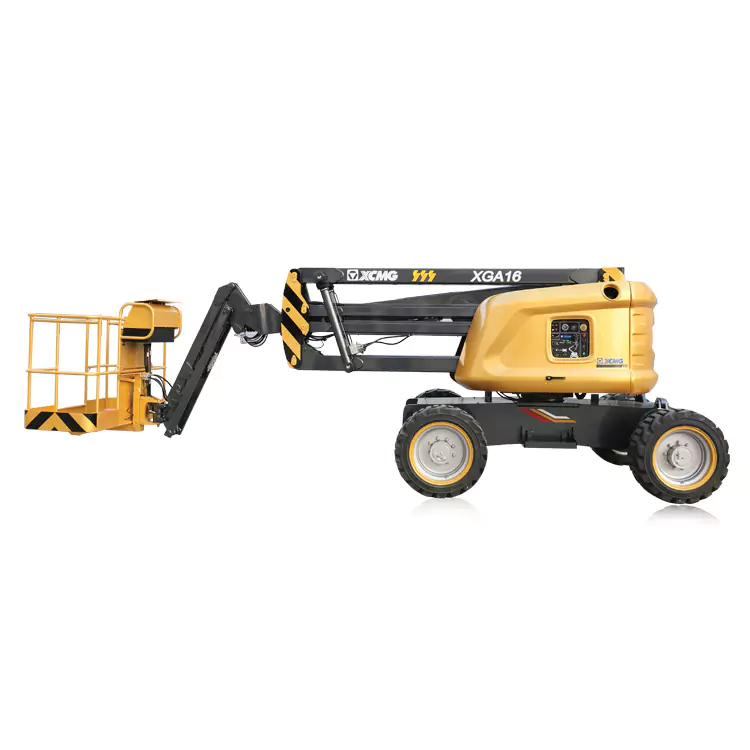

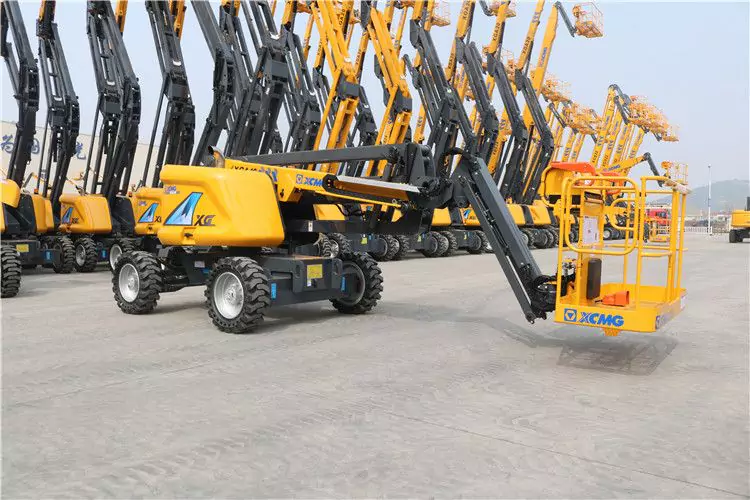

XCMG XGA16 Articulating Boom Lift
XGA16 is a 14m mobile articulated boom elevating work platform intended to meet the customer needs. It features intelligent and complete control system, humanized arrangement, lubrication-free design, and easy operations and maintenances and offers all-round safety protection and rich configuration options.

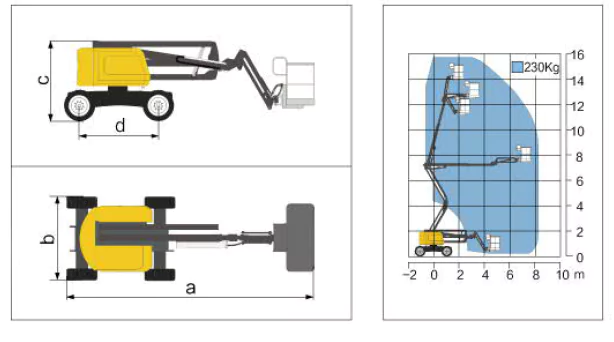

Parameter
Max. Working Height | 16.05m |
Max. Platform Height | 14.05m |
Max. Working Range | 8.22m |
Max. Load Capacity | 230 kg |
Boom Luffing Range | 0°~60° |
Rotation Angle of Turntable | / |
Rotation Angle of Platform | / |
Max. Tail Wagging | / |
Max. Travel Speed | 6.12 km/h |
Min. Turning Radius | / |
Min. Ground Clearance | / |
Max. Grade Ability | / |
Tire Specification | / |
Engine Model | Perkins 404D-22 |
Rated Power of Engine | 38KW/3000rpm |
Total Weight | 6900 kg |
Platform Size | 1.83×0.76×1.15 m |
Overall Length | / |
Overall Width | / |
Overall Height | / |
Wheel Base | 2.1 m |
