Max. Working Height：15.5m
Max. Platform Height：13.8m
Max. Working Range：8m
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

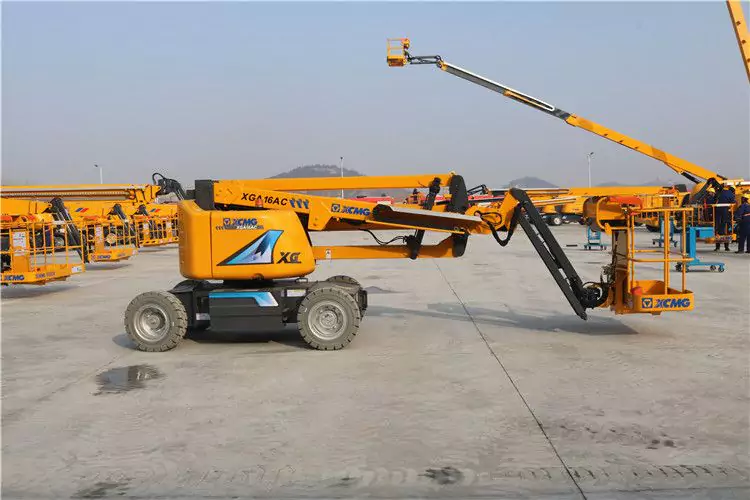

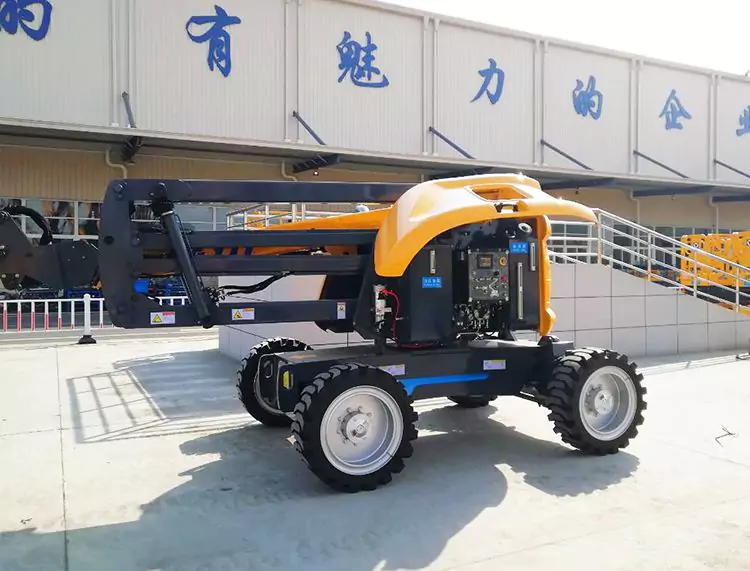

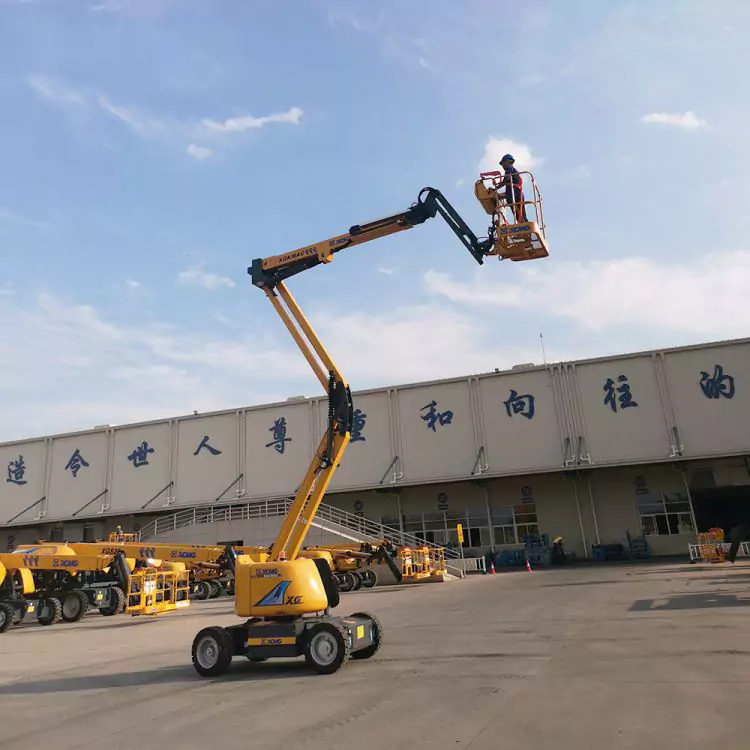

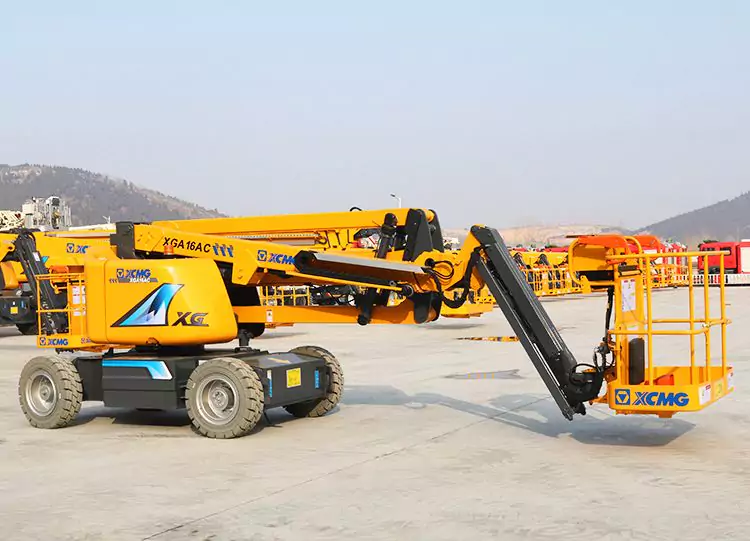

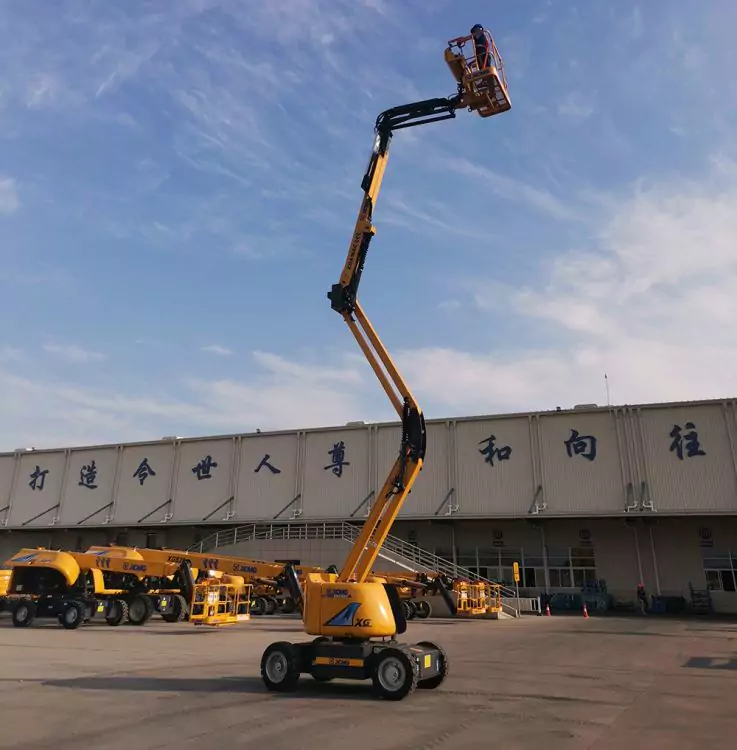

XCMG XGA16AC Articulating Boom Lift
XCMG XGA16AC Electric articulated mobile elevating work platform, compact structures and vehicle body 1.75m wide. Intelligent and perfect control system features the humanized layout, the maintenance-free design and easy use and maintenance, providing the multiple options and comprehensive safety.
［Advantages and features］
1. Σ-shaped boom combine and zero tail swing design make it more productive.
2. As small as 3.15m turning radius enables the machine to work in narrow space.
3. 48V and 420Ah large-capacity battery makes the cruising ability longer.
4. Advanced AC motor driven technologies; steering differential control technologies; powerful and steady actions; grade ability up to 30%.
5. DC pump and proportional control technologies are energy-saving and effective, making the work steadier and safer.
6. Environment friendly, zero emission, low noise, traceless traveling, suitable for indoor construction.
Parameter
| Max. Working Height | 15.5 m |
| Max. Platform Height | 13.8 m |
| Max. Working Range | 8 m |
| Max. Load Capacity | 227 kg |
| Boom Luffing Range | -60°~80° |
| Rotation Angle of Turntable | / |
| Rotation Angle of Platform | / |
| Max. Tail Wagging | / |
| Max. Travel Speed | 5.2 km/h |
| Min. Turning Radius | / |
| Min. Ground Clearance | / |
| Max. Grade Ability | ≥30％ |
| Tire Specification | / |
| Engine Model | / |
| Rated Power of Engine | / |
| Total Weight | 6500 kg |
| Platform Size | 1.4×0.7×1.15 m |
| Overall Length | / |
| Overall Width | / |
| Overall Height | / |
| Wheel Base | 2 m |
