Max. Working Height:18m
Max. Platform Height:16m
Max. Working Range:10.1m
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

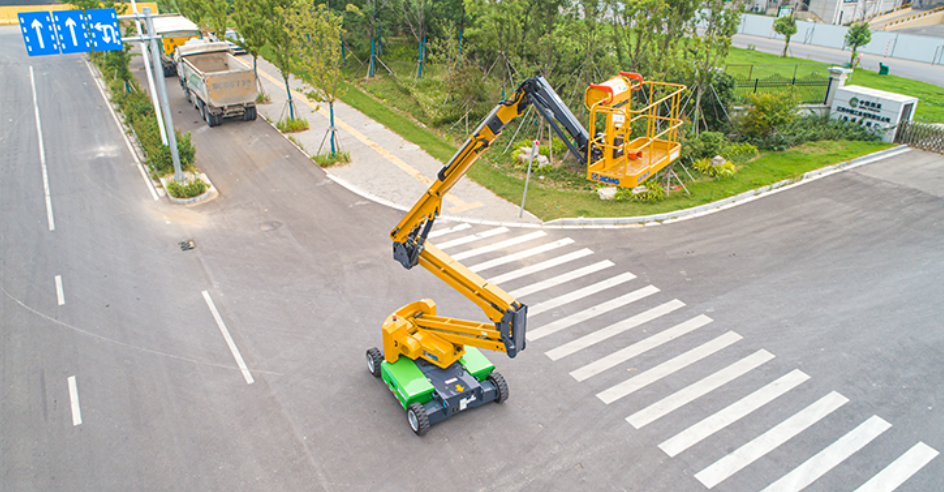

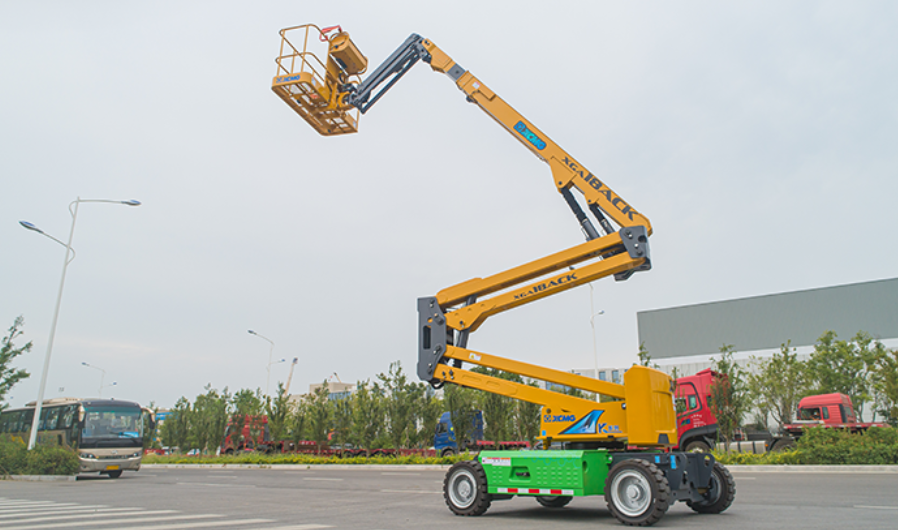

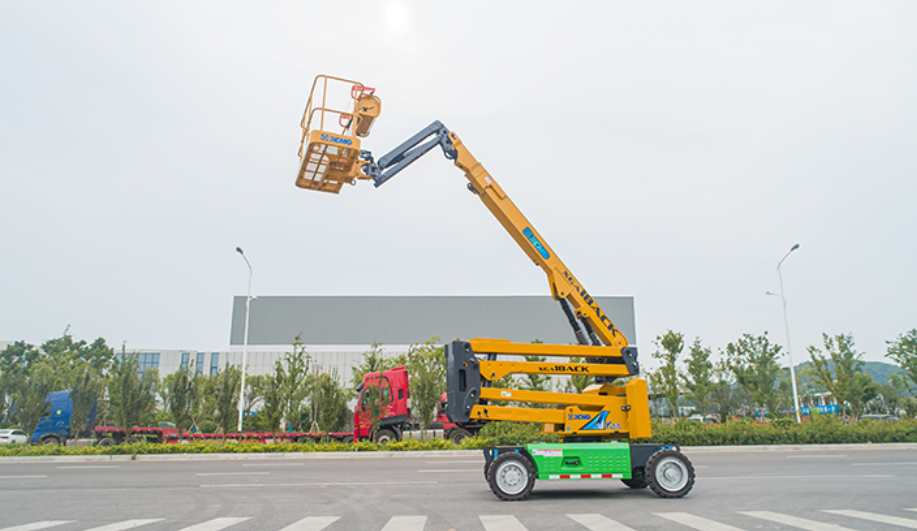

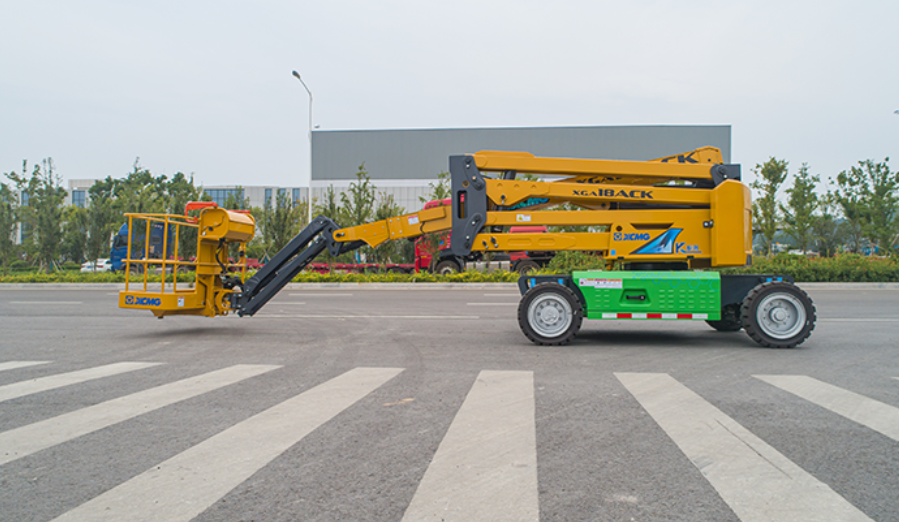

XCMG XGA18ACK Articulating Boom Lift
XGA18ACK is a 18m mobile articulated boom elevating work platform intended to meet the customer needs. It features intelligent and complete control system, humanized arrangement, lubrication-free design, and easy operations and maintenances and offers all-round safety protection and rich configuration options.
The Σ-shaped combination boom features compact structure and flexible telescoping and can realize vertical lifting/lowering and horizontal telescoping and super-strong obstacle-crossing capability. The 160° rotatable platform offers a higher operating range. The narrow turntable features compact layout and realizes “zero-tail swing” to improve the operating efficiency.
The off-road chassis, four-wheel drive system, perfusion type off-road wide tires, full-time axle balance system, and powerful engine enable the machine to achieve outstanding terrain adaptability. The telescoping and extendible work platform achieves a larger working space and works with folding railings to realize easier transportation and translocation.
Parameter
Max. Working Height | 18000mm |
Max. Platform Height | 16000mm |
Max. Working Range | 10100mm |
Max. Load Capacity | 256 kg |
Boom Luffing Range | 0~+65° |
Rotation Angle of Turntable | / |
Rotation Angle of Platform | / |
Max. Tail Wagging | / |
Max. Travel Speed | / |
Min. Turning Radius | / |
Min. Ground Clearance | / |
Max. Grade Ability | / |
Tire Specification | / |
Engine Model | / |
Rated Power of Engine | / |
Total Weight | 8600kg |
Platform Size | 1800x760x1150mm |
Overall Length | 7575mm |
Overall Width | 2320mm |
Overall Height | 2350mm |
Wheel Base | 2360mm |
