Max. Working Height:11.9m
Max. Platform Height:18.4m
Max. Working Range:11.9m
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

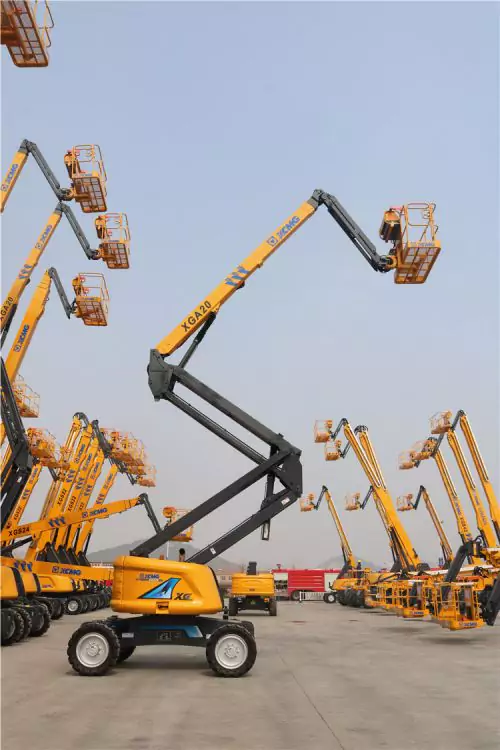

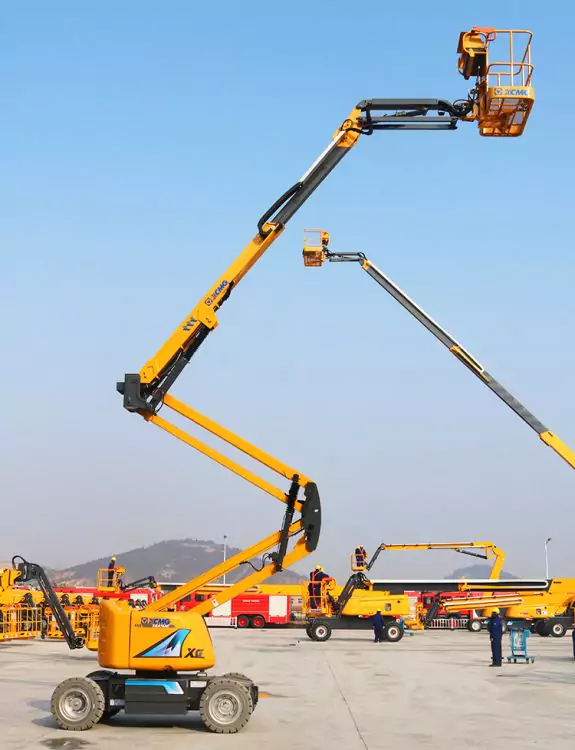

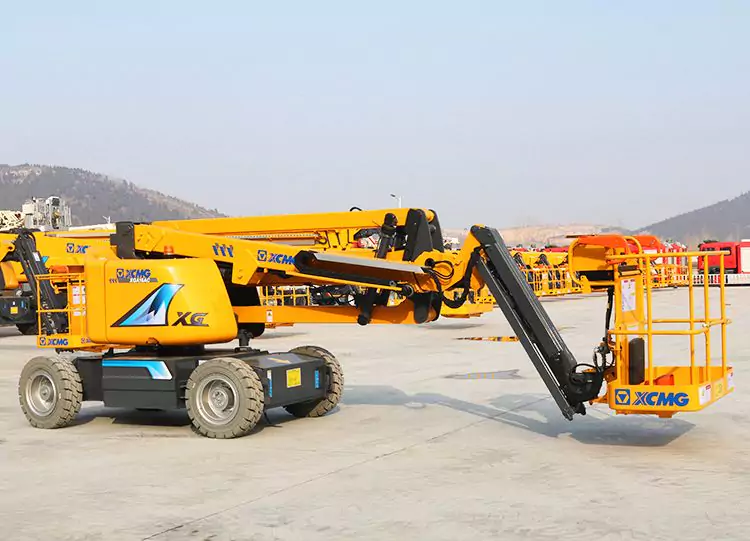

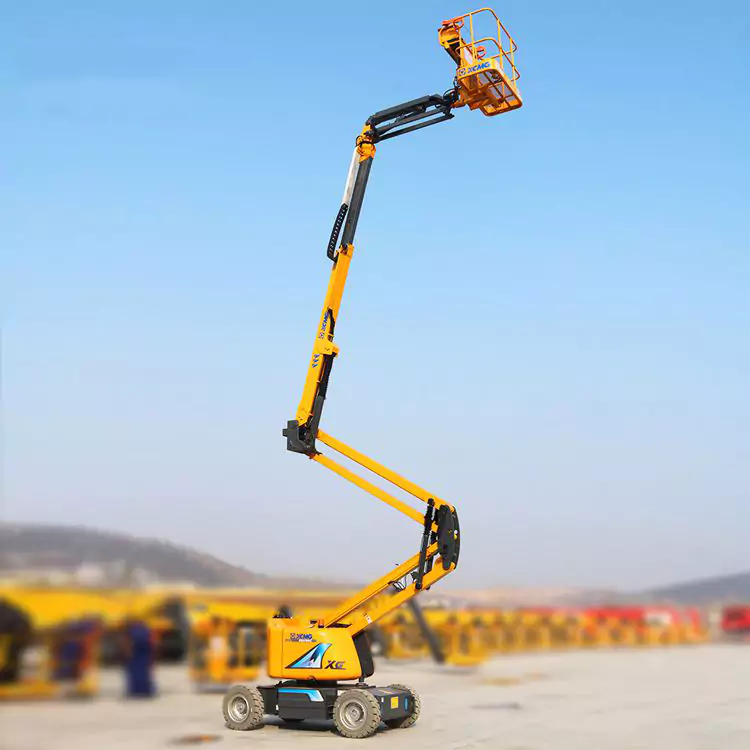

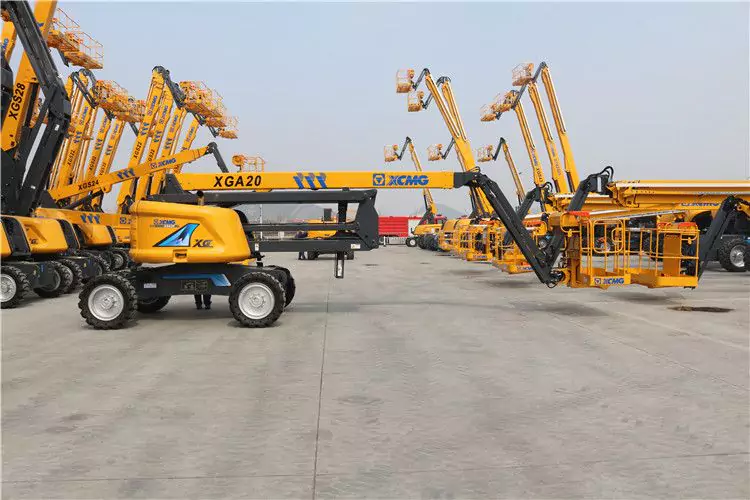

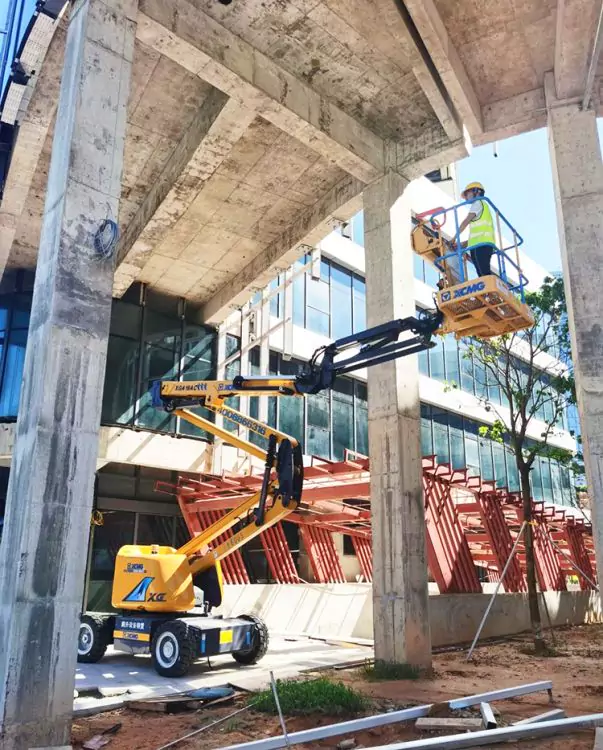

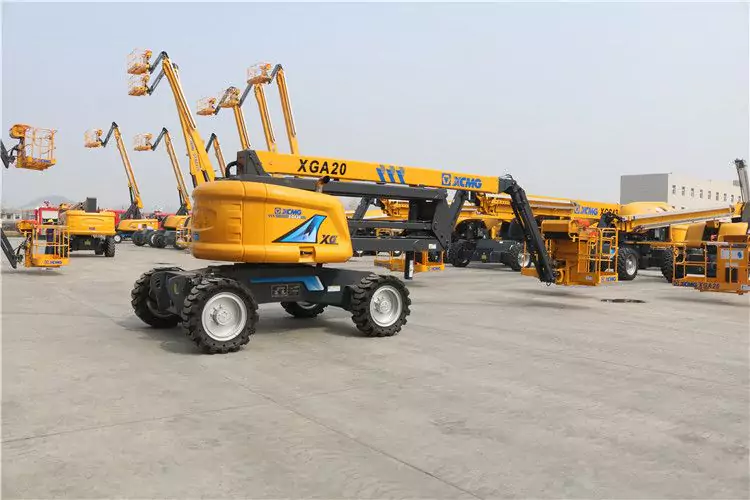

XCMG XGA20 Articulating Boom Lift
Advantages and highlights:
* Upwards, downwards and crossed multi-directional precise position and excellent extension
* The electrical system makes use of the distributed PLC-control technologies and the proportional valve being of self-adaptation method, leading the products in the terms of adaptability.
* Full-hydraulic drive, turntable free slewing by 360°, limitless angle in full work range, easy operation, reliable.
* 4WD drive, off-road wide tires and axle-balancing device enable the machine to be excellently suitable for any terrain, with gradeability up to 45% ranking the top in industry.

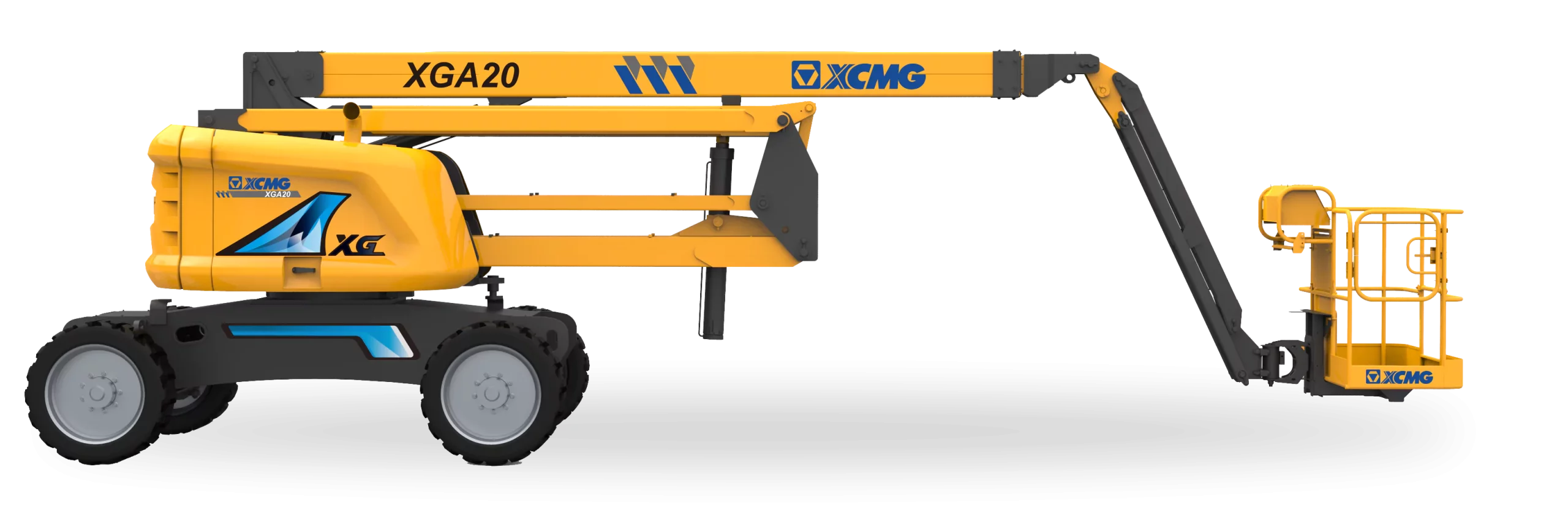

* The complete vehicle is compact. Before transportation, the crank is retracted back, shortening the transportation length to only 7m.
* Zero tail swing design could facilitate the entering of narrow room and the storage.
Parameter
Max. Working Height | 20.4m |
Max. Platform Height | 18.4m |
Max. Working Range | 11.9m |
Max. Load Capacity | 230kg |
Boom Luffing Range | 0~+70° |
Rotation Angle of Turntable | / |
Rotation Angle of Platform | / |
Max. Tail Wagging | / |
Max. Travel Speed | 6km/h |
Min. Turning Radius | 6m |
Min. Ground Clearance | 230mm |
Max. Grade Ability | 45% |
Tire Specification | 36×14-20/7.5 |
Engine Model | Perkins 404D-22 |
Rated Power of Engine | 38kw/(3000)r/min |
Total Weight | 10600kg |
Platform Size | / |
Overall Length | 9080mm |
Overall Width | 2490mm |
Overall Height | 2680mm |
Wheel Base | 2500mm |
