XCMG XGA20K Articulating Boom Lift
VS


Max. Working Height:20.63m

Max. Platform Height:18.63m


Max. Working Range:12.08m


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

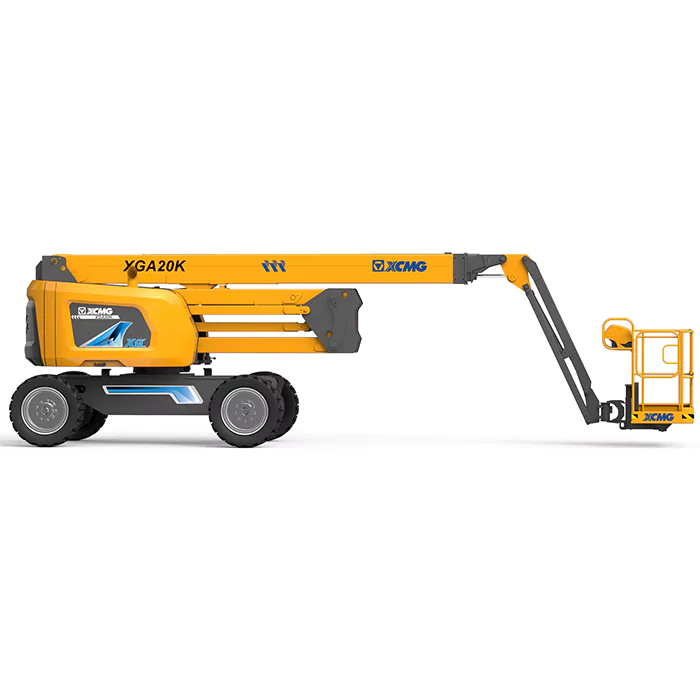

XCMG XGA20K Articulating Boom Lift


The XGA20K is a compact, highly efficient crank-arm type mobile elevating work platform designed for superior obstacle-surmounting capabilities and precision. Known for its strong driving performance, simple operation, and reliable safety features, it is ideal for a variety of applications in construction, steel structure work, petrochemical industries, venue maintenance, and equipment leasing.

Advantages and Features:

  1. Advanced Load Capacity: The platform offers a double load design with a capacity of 256/350 kg, placing it at the forefront of industry standards for load performance.
  2. Multi-Directional Precision: Equipped with precise up, down, and horizontal positioning capabilities, the platform excels in its stretching functions for versatile and efficient operation.
  3. Advanced Electrical System: The electrical system incorporates distributed PLC control technology and an adaptive proportional valve control method, enhancing environmental adaptability and ensuring superior operational flexibility.
  4. Full Hydraulic Drive and 360° Rotation: The platform features a fully hydraulic drive system with 360° free rotation, offering limitless angular movement during operation. This results in simple, reliable control across all functions.
  5. Compact Design for Easy Transportation: The platform’s compact and clever layout makes it easy to transport, including for container shipping, without compromising performance or stability.

Parameter

Max. Working Height20.63m
Max. Platform Height18.63m
Max. Working Range12.08m
Max. Load Capacity256kg
Boom Luffing Range0~+72°
Rotation Angle of Turntable/
Rotation Angle of Platform/
Max. Tail Wagging0.54mm
Max. Travel Speed5.5km/h
Min. Turning Radius5m
Min. Ground Clearance330mm
Max. Grade Ability45%
Tire Specification/
Engine ModelYCF3050-T302
Rated Power of Engine36.8kw/(2400)(r/min)
Total Weight9900kg
Platform Size1830×760×1150mm
Overall Length8520mm
Overall Width2300mm
Overall Height2400mm
Wheel Base2500mm
