Max. Working Height:26.38m
Max. Platform Height:24.38m
Max. Working Range:18.9m
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

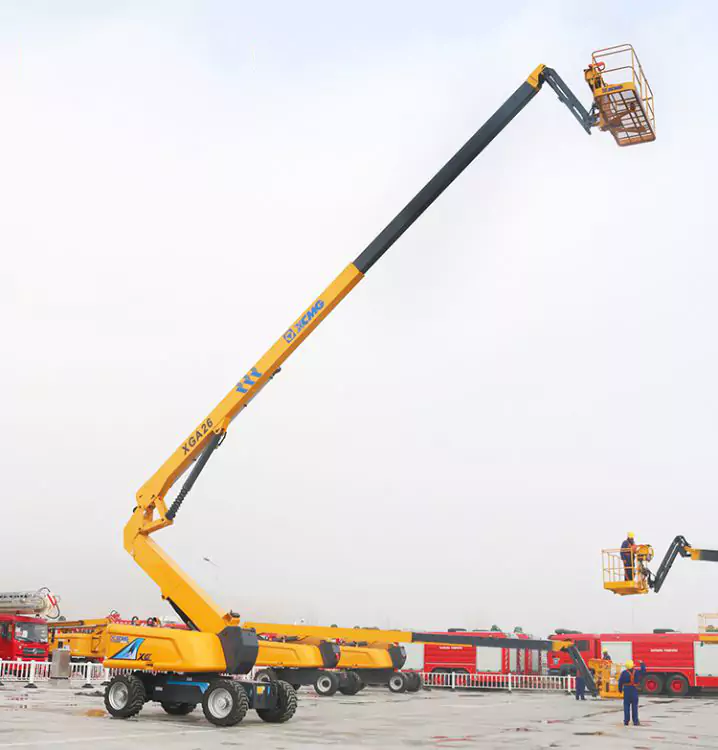

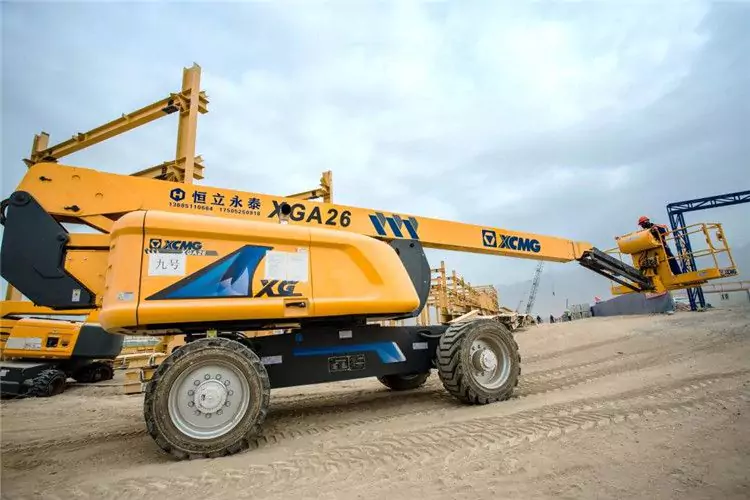

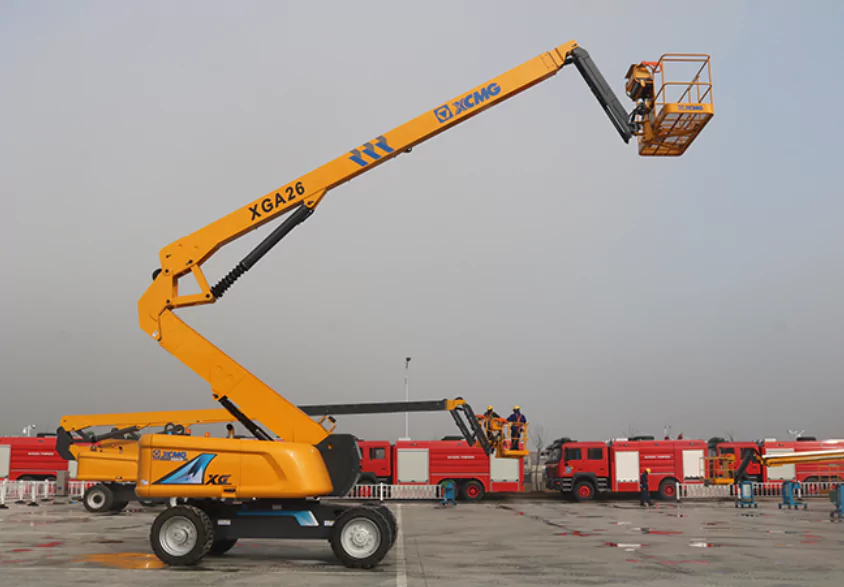

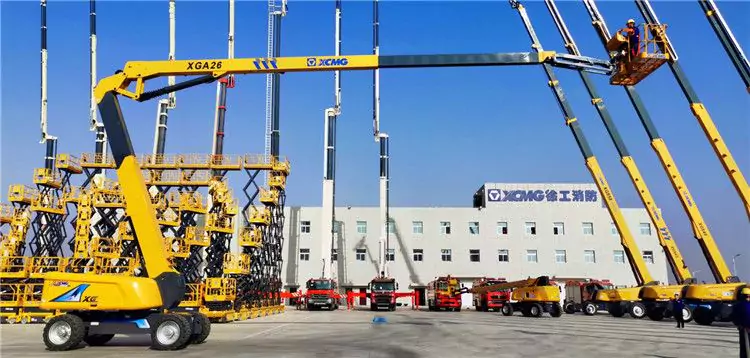

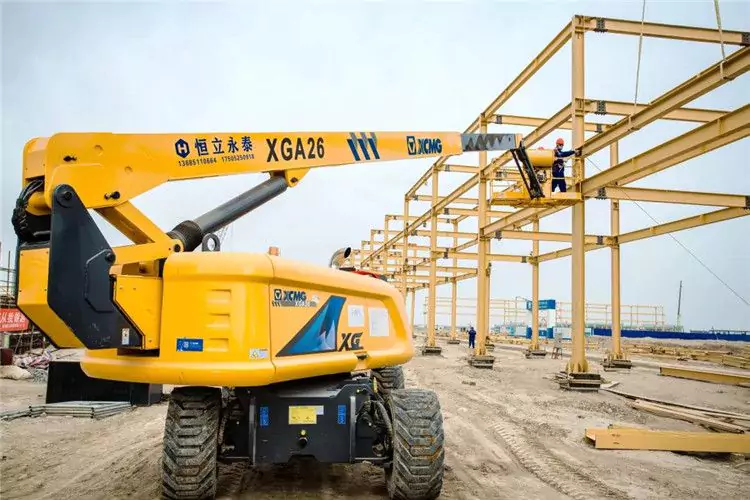

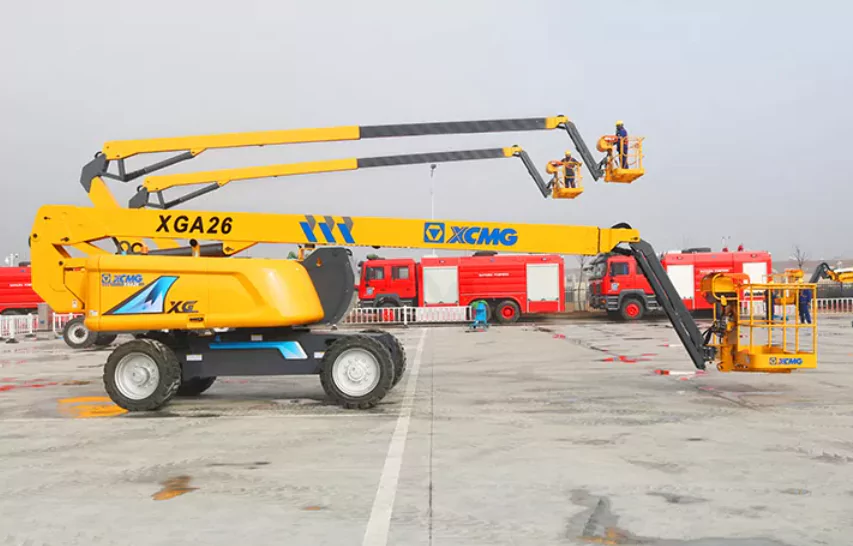

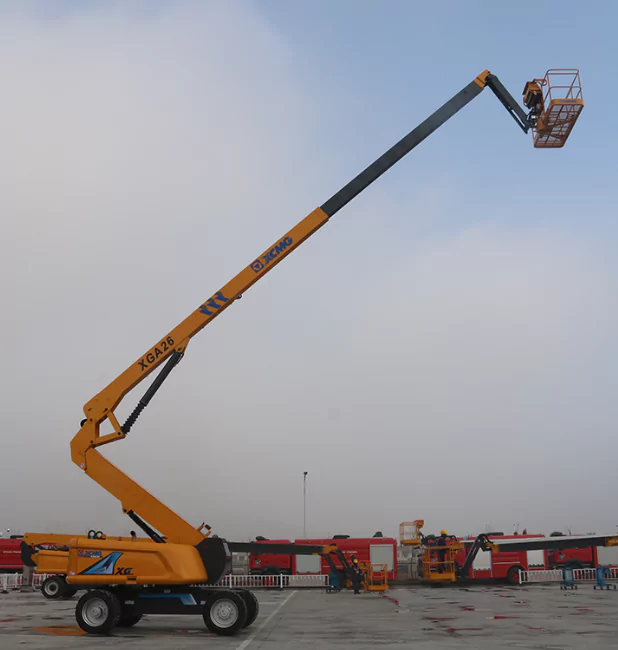

XCMG XGA26 Articulating Boom Lift
XGA26 hydraulic articulated boom lift towable reaches as high as 26.38m operation height. It is outstanding in terms of extending and operation range and efficient operation efficiency. The initial energy saving system according to power improves fuel efficiency to the maximum extend.
It features advanced performance, precise control, safe and reliable operation, meeting demands from building construction, bridge and equipment maintenance, shipyard and petrochemical industry and users from rental service.
Advantages and highlights:
1.Maximum working range 9m to reach operation area at different directions.
2.Available to implement all-directional aerial work through the elevating, telescopic and slewing control, and thus making the machine more flexible.
3.Flexible 4WD multi-mode steering system and the leading grade.
4.The customized valve control system and all accurately controlled motions effectively improve the motion smoothness.
5.The flow anti-saturation design is applied to provide efficient and stable composite motion experiences.
6.Initial power self-matching system could save the energy, dropping the comprehensive fuel consumption under each work condition.
Parameter
Max. Working Height | 26.38m |
Max. Platform Height | 24.38m |
Max. Working Range | 18.9m |
Max. Load Capacity | 230kg |
Boom Luffing Range | -1~+70° |
Rotation Angle of Turntable | 360°(Continuous) |
Rotation Angle of Platform | 160° |
Max. Tail Wagging | 1330mm(Boom lifted) |
Max. Travel Speed | 5km/h |
Min. Turning Radius | 4.2m(Four turn)/ 6.7m(Two turn) |
Min. Ground Clearance | 260mm |
Max. Grade Ability | 45% |
Tire Specification | 18/625 |
Engine Model | Foton Cummins QSF2.8t3TC71 |
Rated Power of Engine | 53kw/2200rpm |
Total Weight | 17800kg |
Platform Size | 2400×900mm |
Overall Length | 11280mm |
Overall Width | 2490mm |
Overall Height | 3000mm |
Wheel Base | 3000mm |
