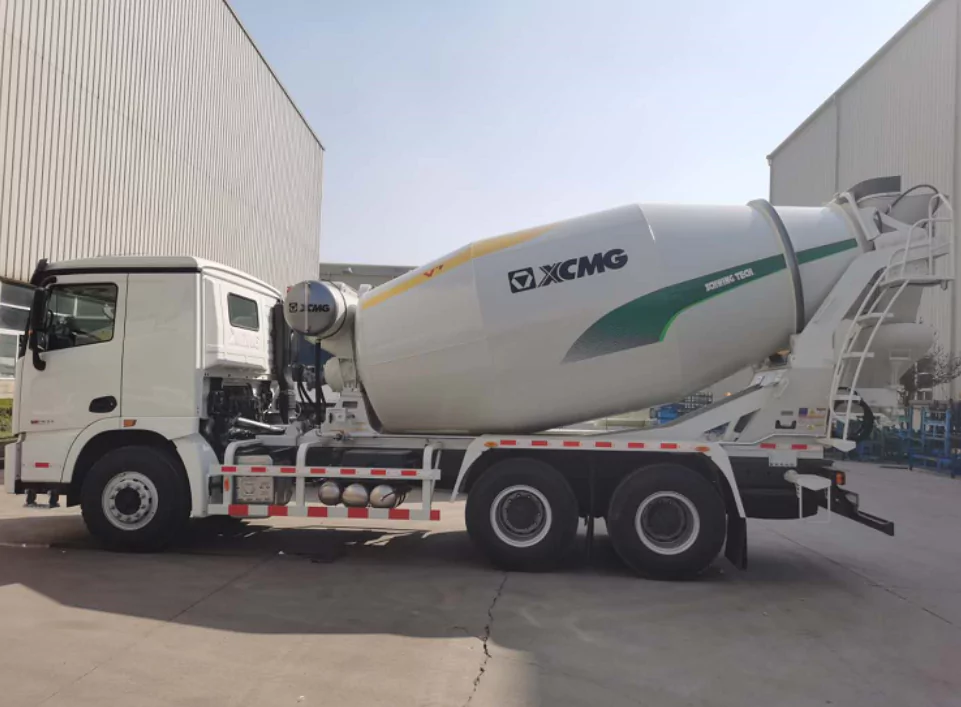

XCMG XGA5250GJBK2 (8m³) Concrete Truck Mixer

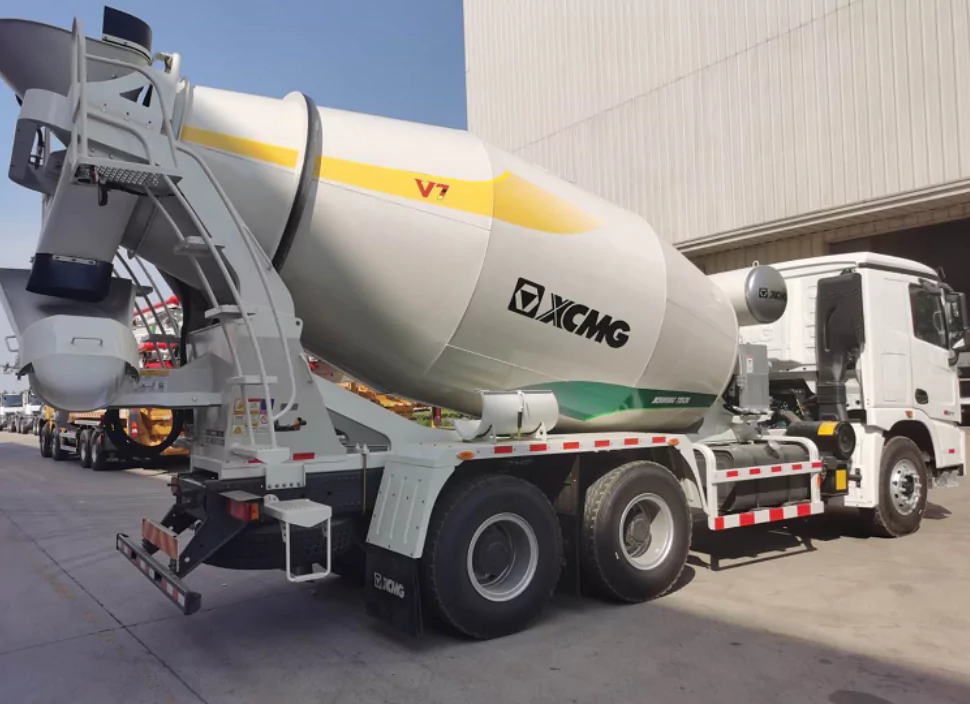

XCMG XGA5250GJBK2 (8m³) Concrete Truck Mixer-1

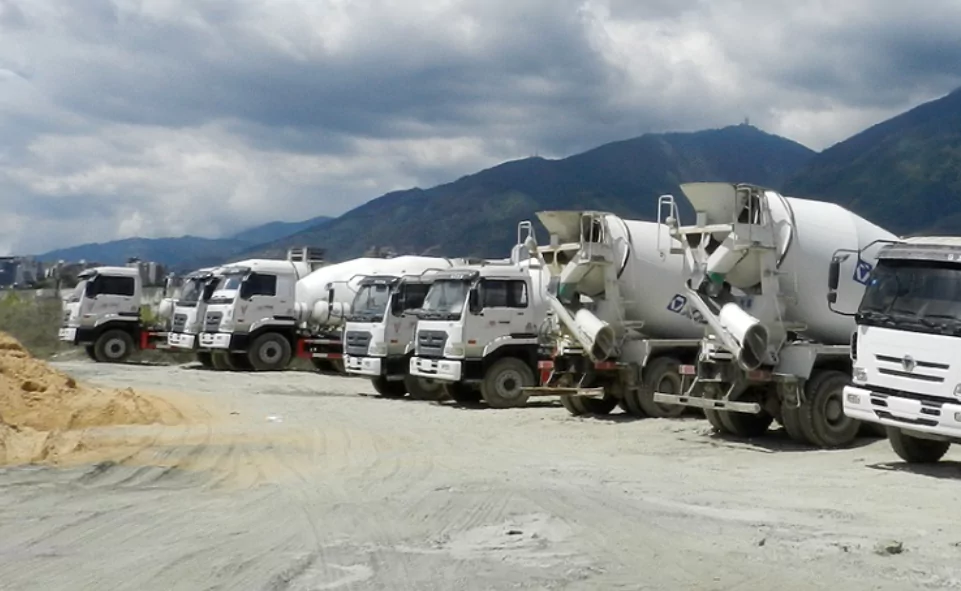

XCMG XGA5250GJBK2 (8m³) Concrete Truck Mixer-2

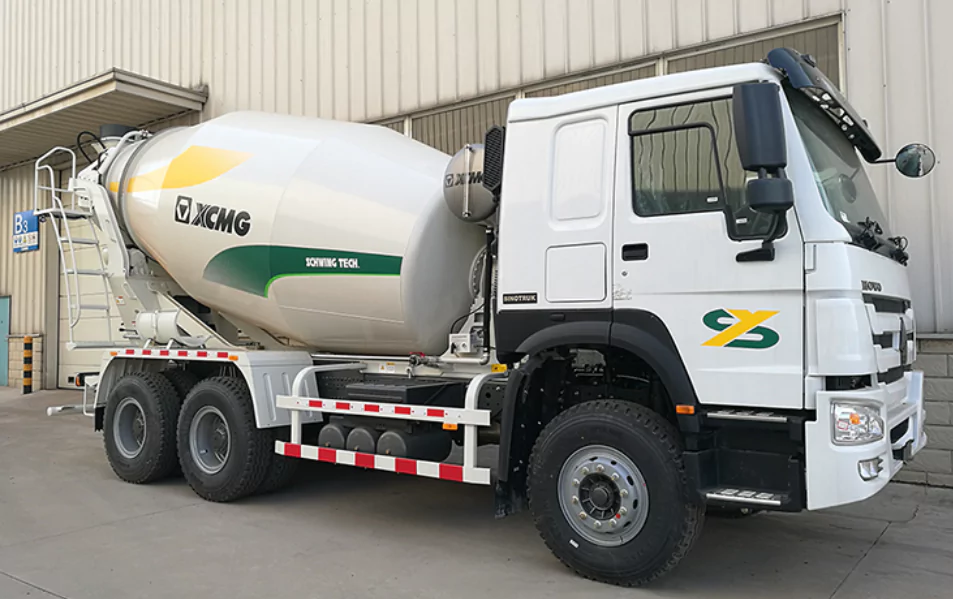

XCMG XGA5250GJBK2 (8m³) Concrete Truck Mixer-3
XCMG XGA5250GJBK2 (8m³) Concrete Truck Mixer-4
XCMG XGA5250GJBK2 (8m³) Concrete Truck Mixer
VS


Drive Type6×4

Kerb Mass:14500kg

GVW :34300kg


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

XCMG XGA5250GJBK2 (8m³) Concrete Truck Mixer


The XCMG XGA5250GJBK2 (8m³) concrete mixer truck is an advanced and efficient solution for transporting and mixing concrete on construction sites. With a capacity of up to 8 cubic meters, this mixer truck is designed to meet the needs of large-scale construction projects while ensuring optimum performance and reliability. The powerful engine and rugged chassis provide excellent stability and maneuverability, making it easy to traverse urban environments and construction sites.

This concrete mixer truck features a state-of-the-art mixing drum that ensures the concrete is evenly mixed, delivering consistent quality with every load. The design of the mixer drum minimizes material waste and increases discharge efficiency, making it an economical choice for contractors. Equipped with a user-friendly control panel, operators can easily manage the mixing and unloading processes, thereby improving overall workflow efficiency.

Safety is the top priority of the XGA5250GJBK2, which includes advanced safety features such as automatic drum rotation control and a reliable braking system. The spacious and comfortable cab is designed for operator convenience, providing excellent visibility and ergonomics for long working hours.

In addition, the mixer is made of durable materials to withstand harsh working conditions, ensuring a long service life and reduced maintenance costs. XCMG XGA5250GJBK2 (8m³) concrete mixer truck is not only a reliable workhorse for concrete transportation, but also a wise investment for construction companies pursuing project efficiency and quality.

Parameter

Drive Type6×4
Kerb Mass14500kg
GVW34300kg
Max. Speed90km/h
Min. Turning Diameter18m
Grade Ability≥38%
Fuel Tank300L
Dimension9560×2550×4000mm
Wheelbase4000+1400mm
Min. Clearance270mm
Approach Angle24°
Departure Angle13°
Cabin ModelG7LM
Left/Right DrivingLHD
ACOptional
Person Allowed in2
Engine ModelWD615.47
Emission StandardEUR II
Displacement9.726L
Output Power273KW
Max Torque Speed1460km/h
Transmission Model10JSD160
PTOOptional
Front Axle Model7.5T
Rear Axle Model16T
Main Reducer Ratio4.8
Rim8.50V-20
Tire12.00R20 18PR
