Max. Working Height：20.5m
Max. Platform Height：18.5m
Max. Working Range：13.2m
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

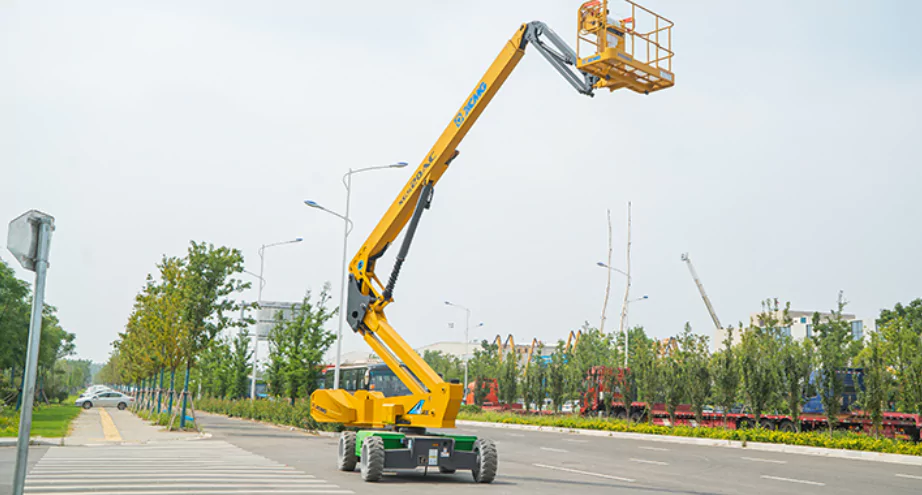

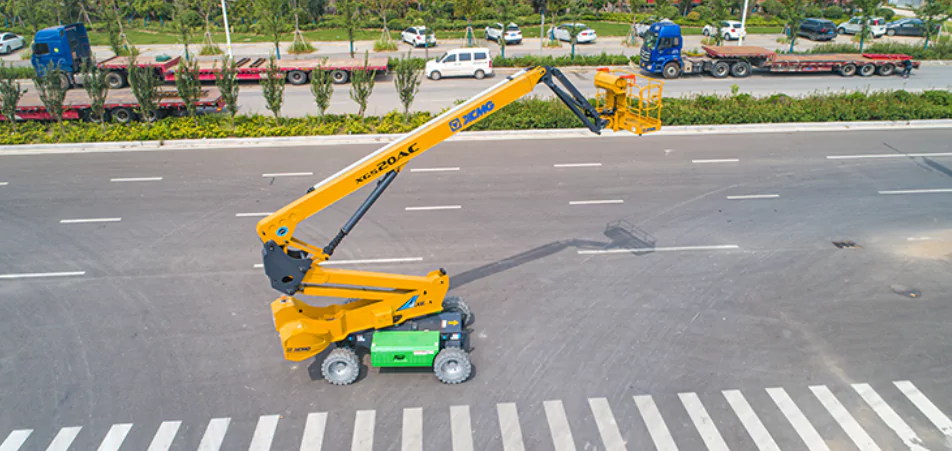

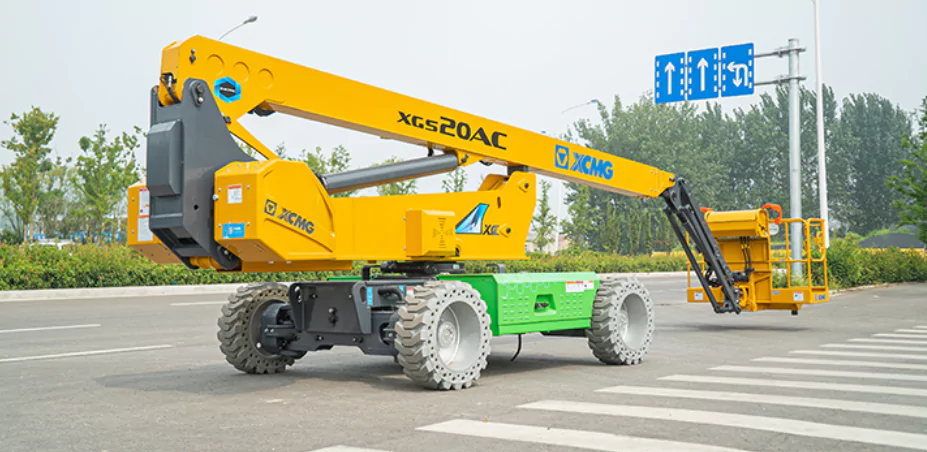

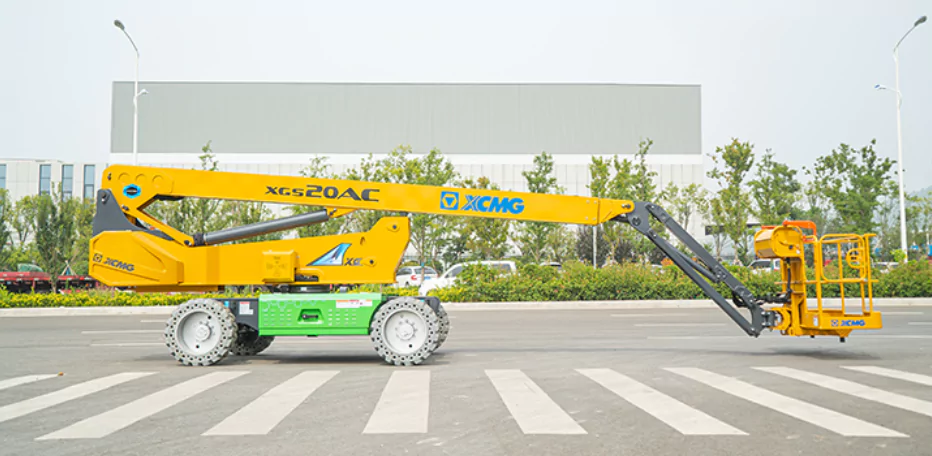

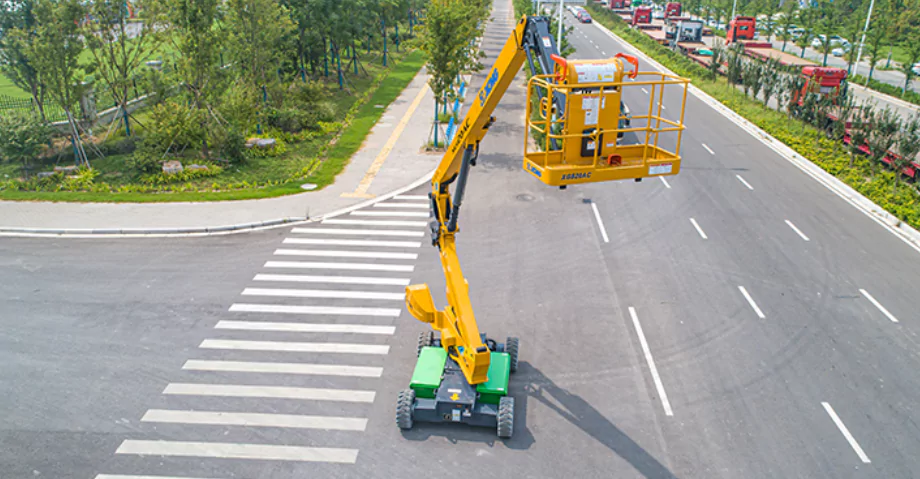

XCMG XGS20AC Telescopic Boom Lift
XCM-G XGS20AC electric telescopic lift 20m aerial lift platform has a working height of 20.5m and an outreach of 13.2m, with unrestricted load capacity of 300kg, Its four-wheel drive and steer enables a turning radius of 5 m, driven by the 420 Ah 48 V DC lithium power source, which is maintenance-free and comes with a five-year warranty.
According to XCMG, the use of lithium batteries for the new XGS20AC(K) model will provide three to five times more power capacity than lead acid battery alternatives. In addition, the lithium battery can be up to 1.5 times smaller in size. Moreover, it provides longer service life as well as less pollution.
Parameter
| Max. Working Height | 20500mm |
| Max. Platform Height | 18500mm |
| Max. Working Range | 13200mm |
| Max. Load Capacity | 300kg |
| Boom Luffing Range | -5~76° |
| Rotation Angle of Turntable | 360 continuous |
| Rotation Angle of Platform | / |
| Max. Tail Wagging | / |
| Max. Travel Speed | 0.6km/h |
| Min. Turning Radius | 5mm |
| Min. Ground Clearance | / |
| Max. Grade Ability | 45% |
| Tire Specification | / |
| Engine Model | / |
| Rated Power of Engine | / |
| Total Weight | 8600 kg |
| Platform Size | 1830×760×1150mm |
| Overall Length | 9800mm |
| Overall Width | 2490mm |
| Overall Height | 2640mm |
| Wheel Base | 2500mm |
