Max. Working Height：58.6m
Max. Platform Height：56.6m
Max. Working Range：24.8m
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

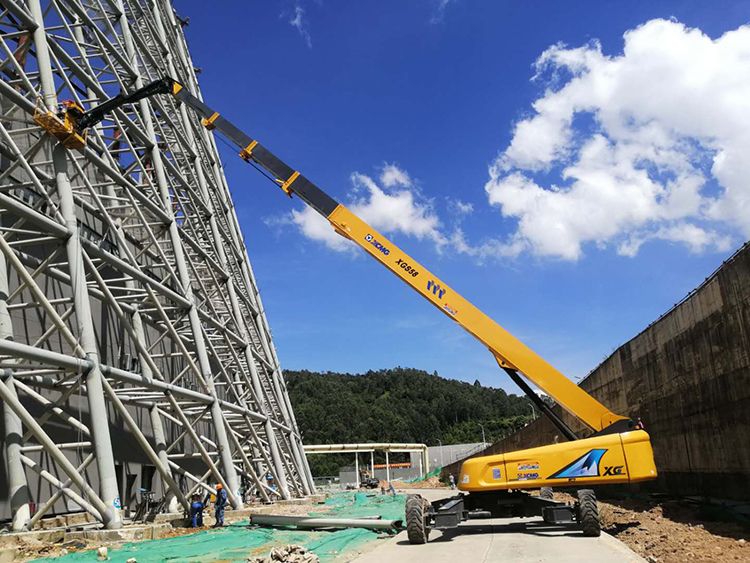

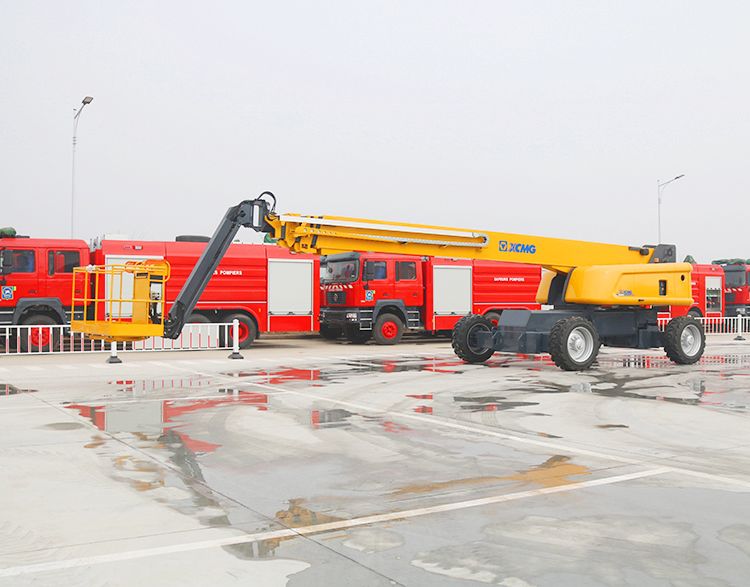

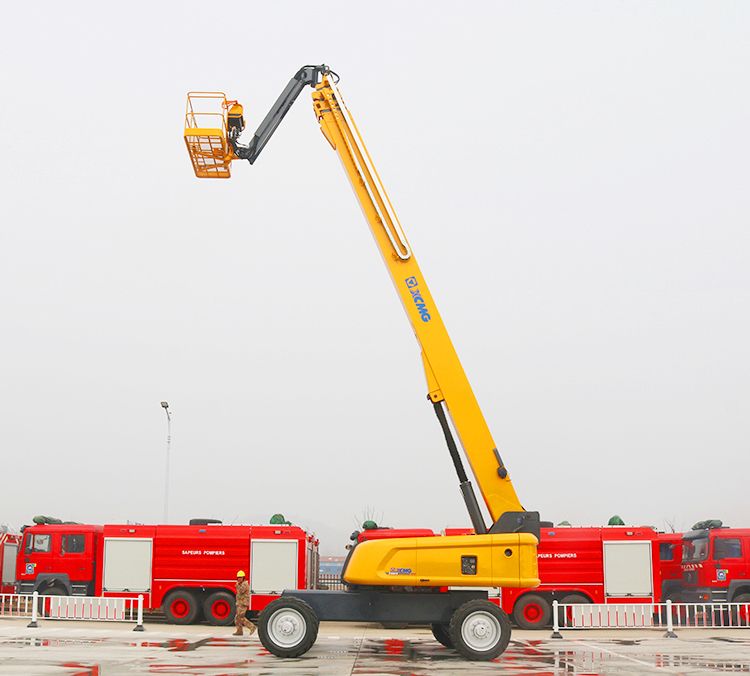

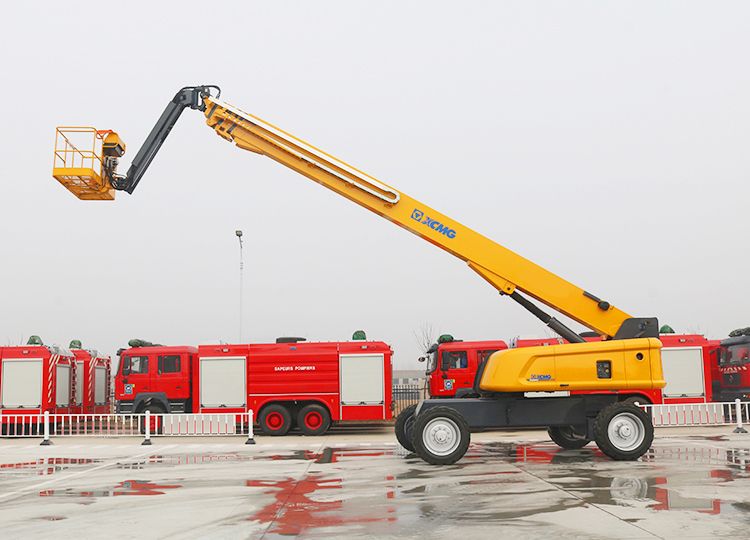

XCMG XGS58 (GTBZ58S) Telescopic Boom Lifts
XCMG XG series aerial work platform includes scissor lifts, articulated boom lifts, telescopic boom lifts. XGS telescopic boom lifts series cover 22m to 58m in height, with the characteristics of wide operating space coverage, safety, high efficiency and energy saving, accurate and stable operation, and are widely used in various aerial operations.
XCMG aerial work platform XGS58 Scope of Application:
It is suitable for high altitude work and material transportation, piping laying, installation of coverings, coating fireproof materials, painting paint, installation of elastic pillars, etc. It can reduce the time of scaffold construction and disassembly, realize the three-dimensional cross construction, reduce the construction cost and improve the construction efficiency.
XCMG aerial work platform XGS58 Highlights:
-
The working height is 58m and the maximum bearing weight is 230/450kg. The dual-load control system can automatically adjust the working range according to the load to meet the different bearing needs of users.
-
Three telescopic boom, a tower boom and a small flying boom is equipped to overcome obstacles and achieve wide range of operation.
-
Sensitive hydraulic system is loaded to achieve more accurate control.
-
Multiple safety designs are adopted to ensure the safety of construction personnel and machines.
Parameter
| Max. Working Height | 58.6m |
| Max. Platform Height | 56.6m |
| Max. Working Range | 24.8m |
| Max. Load Capacity | 230/450kg |
| Boom Luffing Range | -1～+80° |
| Rotation Angle of Turntable | 360°(Continuous) |
| Rotation Angle of Platform | 160° |
| Max. Tail Wagging | 2320mm |
| Max. Travel Speed | 4.5km/h |
| Min. Turning Radius | 9.5/6.6m |
| Min. Ground Clearance | 250mm |
| Max. Grade Ability | 45% |
| Tire Specification | 445/50D710 |
| Engine Model | Deutz TCD3.6 L4 |
| Rated Power of Engine | 74.4kw/2300rpm |
| Total Weight | 27900kg |
| Platform Size | 2400×900mm |
| Overall Length | 19450/14600mm |
| Overall Width | 2490/5030mm |
| Overall Height | 3070mm |
| Wheel Base | 5220/4590mm |
