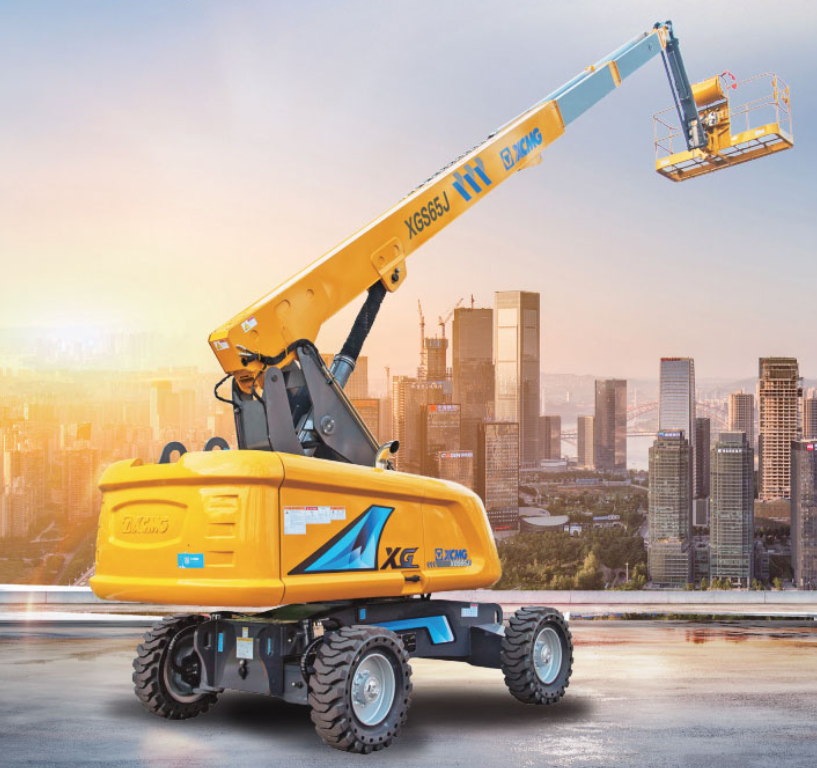

XCMG XGS65J Telescopic Boom Lift
VS


Max. Working Height:22m

Max. Platform Height:20m

Max. working range:17.2m


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

XCMG XGS65J Telescopic Boom Lift


Performance Characteristics:

1. X-shaped Swinging Legs And Full-wheel Steering

Four axles could swing independently, which features the advantages shown below: the overall width should be narrowed during transportation and storage; large wheelbase could be realized for low-altitude or slope traveling; wide span could be reached for superstructure boom, keeping the support steady. In addition, while the axles are swinging, the full wheels could auto- matically match their angles for straight traveling, with three steering modes coordinated with each other.



2. Proportional Dual Leveling

Dual leveling mode of telescopic crank and work platform, improving the product precision that could be controlled within 2.5 ° and hence promoting the aerial safety.



3. Precise And Steady Control

Customized proportional valves have the flow curve designed according to action features, ensuring the excellent micro manipulation. The pressure com- pensation behind valve and the anti-saturation design of flow could make the composite movement more effective and steady.

Parameter

Max. Working Height22m
Max. Platform Height20m
Max. Working Range17.2m
Max. Load Capacity300kg
Boom Luffing Range-3°~ +73°
Rotation Angle of Turntable360°
Rotation Angle of Platform/
Max. Tail Wagging/
Max. Travel Speed6.3Km/h
Min. Turning Radius6m
Min. Ground Clearance230mm
Max. Grade Ability45%
Tire Specification36×14-20 355/55D625
Engine ModelKubota V2403-CR-EW02
Rated Power of Engine36.8kw/2700rpm
Total Weight27200kg
Platform Size2440mm × 900mm

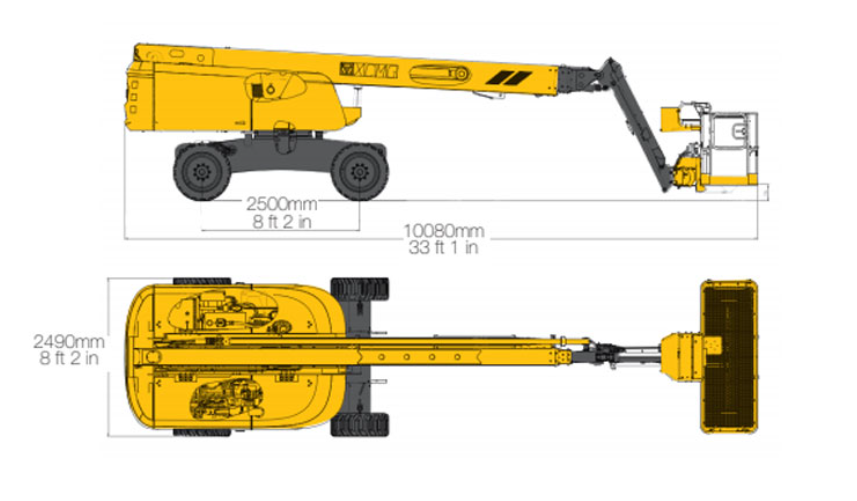

Overall Length10080mm
Overall Width2490mm
Overall Height2460mm
Wheel Base2500m
