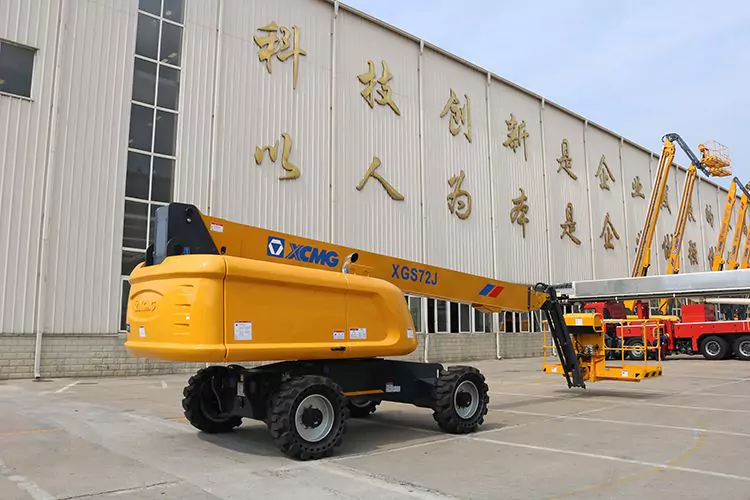

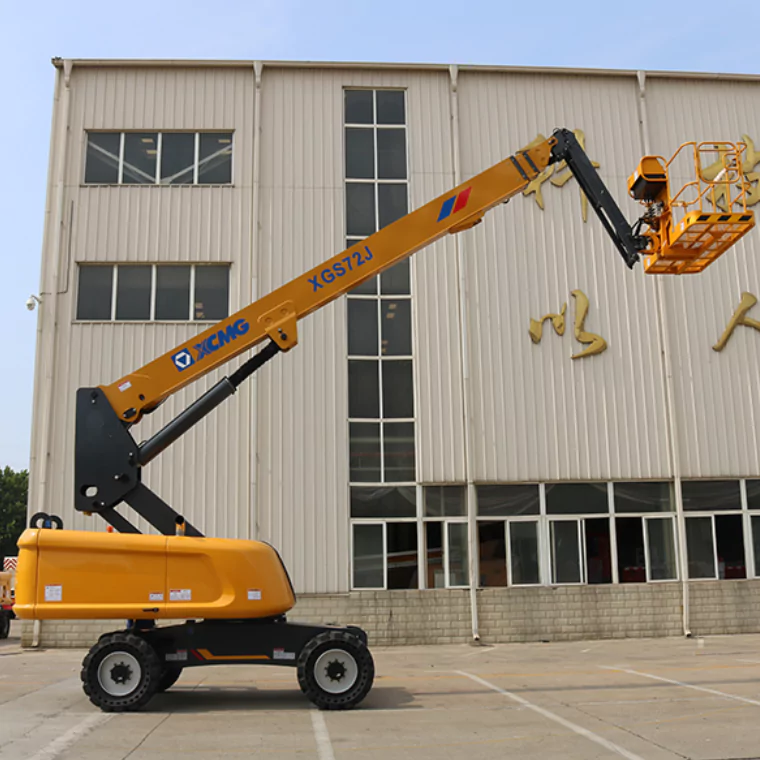

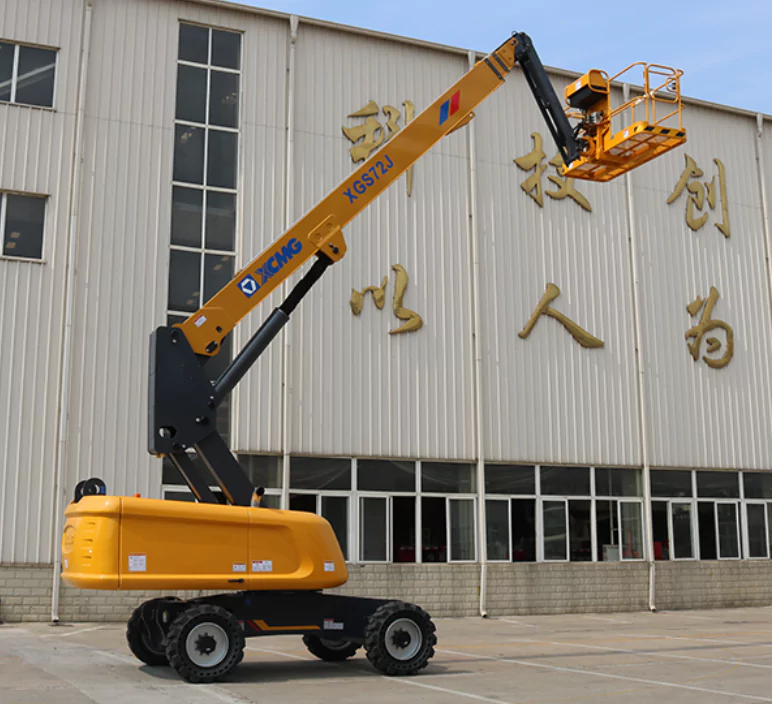

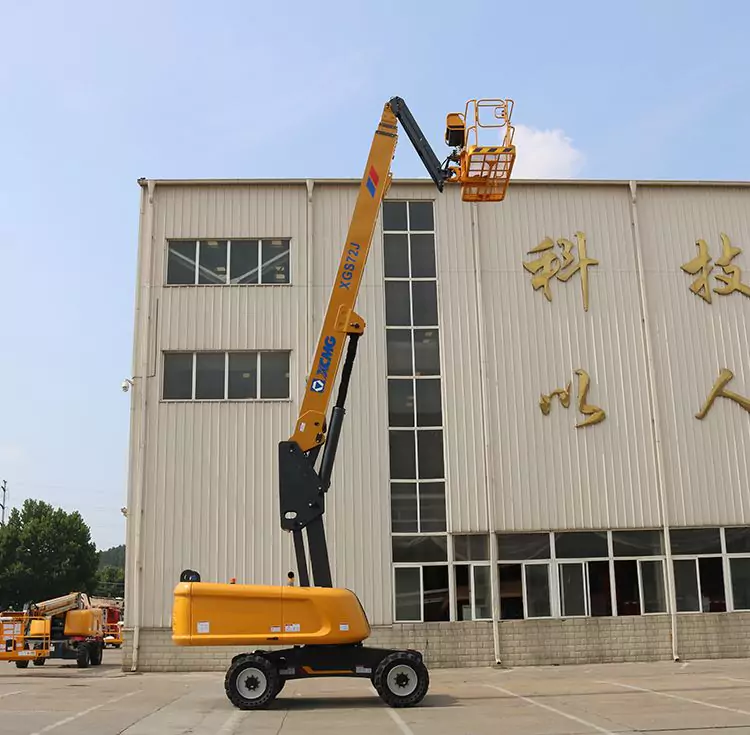

XCMG XGS72J Telescopic Boom Lift

Home Product Telescopic Boom Lift Aerial Working Equipment

View larger image

XCMG XGS72J Telescopic Boom Lift

Max. Working Height：24m

Max. Platform Height：22m

Max. working range：18.3m

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

XCMG XGS72J Telescopic Boom Lift

Advantages and features:

1. Realize the dynamic adjustment of vehicle center of gravity, making the complete vehicle more stable.

2. XCM-G telescopic work platform XGS72J is excellent in drive and adaptability to road.

3. Making its work performance at leading edge.

4. Improves safety of extending mechanism and extends service life of steel rope.

5. Implementing the auto leveling, the dynamic monitoring and the fault warning.

Parameter

Max. Working Height	24m
Max. Platform Height	22m
Max. Working Range	18.3m
Max. Load Capacity	230kg
Boom Luffing Range	-5 ~ +75°
Rotation Angle of Turntable	360°
Rotation Angle of Platform	/
Max. Tail Wagging	/
Max. Travel Speed	6km/h
Min. Turning Radius	6m
Min. Ground Clearance	230mm
Max. Grade Ability	45%
Tire Specification	385/65D22.5
Engine Model	Deutz TD 2.9 L4
Rated Power of Engine	55.4kw/(2600)(r/min)
Total Weight	12500kg
Platform Size	2400×900mm
Overall Length	10150mm
Overall Width	2490mm
Overall Height	2800mm
Wheel Base	2500mm
