View larger image
Rated power: 165/2300kW/r/min
Transport Weight：13750kg
Dimensions：8175*2495*3440mm
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

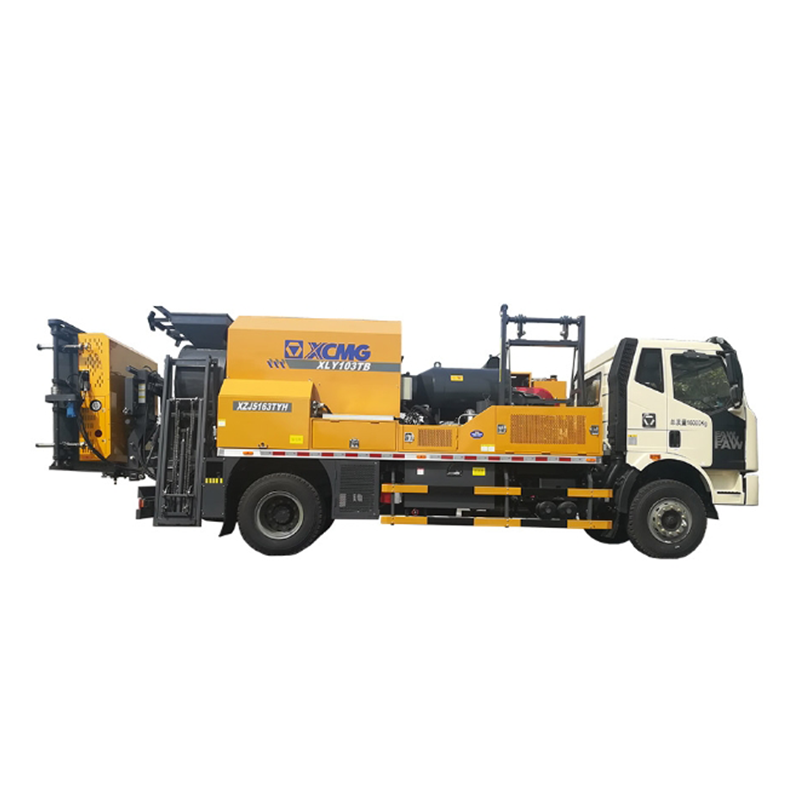

XCMG XLY103TB Pavement Maintenance Vehicle
XLY103TB pavement maintenance vehicle is applicable for the rapid repair of chuck holes on highway, national and provincial trunk roads, municipal roads and asphalt pavement, and can meet various construction process requirements such as rapid heating of cold finished product mixture, regenerative heating of milling old materials, field frying of asphalt mixture and in-place recycling of pavement. In addition, the vehicle is characterized by multiple function in one machine, easy operation and high reliability.
Parameter
| Drum bunker Effective capacity | 1 m³ |
| Screed heating mode | Heated air circulation |
| Single heating time of mixing silo | 15～ 20 min |
| Feeding speed of rotary silo | 380 kg/min |
| Feeding mode | Hydraulic automation |
| Upper hopper capacity | 0.13 m³ |
| Heating wall(Optional) Effective heating area of heating wall | 2.5 m² |
| Heating depth | 6cm |
| Partitions quantity | 3 |
| Hot asphalt system Tank body capacity | 480 L |
| Screed heating mode | Diesel burner |
| Emulsified asphalt system Tank body capacity | 40 L |
| Screed heating mode | Electrical heating (3kw) |
| Diesel cleaning box volume | 15 L |
| Volume of the waste box | 0.48 m³ |
| Type | FAW Jiefang CA1160P62K1L2A1E5Z |
| Engine type | CA4DK1-22E51 |
| Engine power/speed | 165/2300 kW/r/min |
| Driving type | 4×2 |
| Emission standard | China Stage V |
| Maximum traveling speed | 101 km/h |
