Rated Power:206/2200Kw/rpm
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

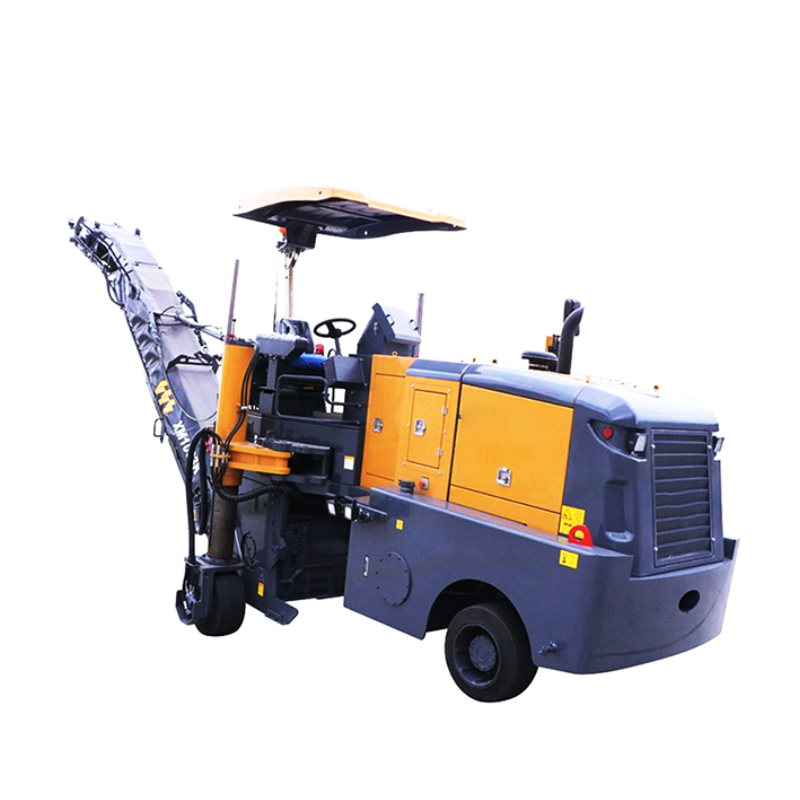

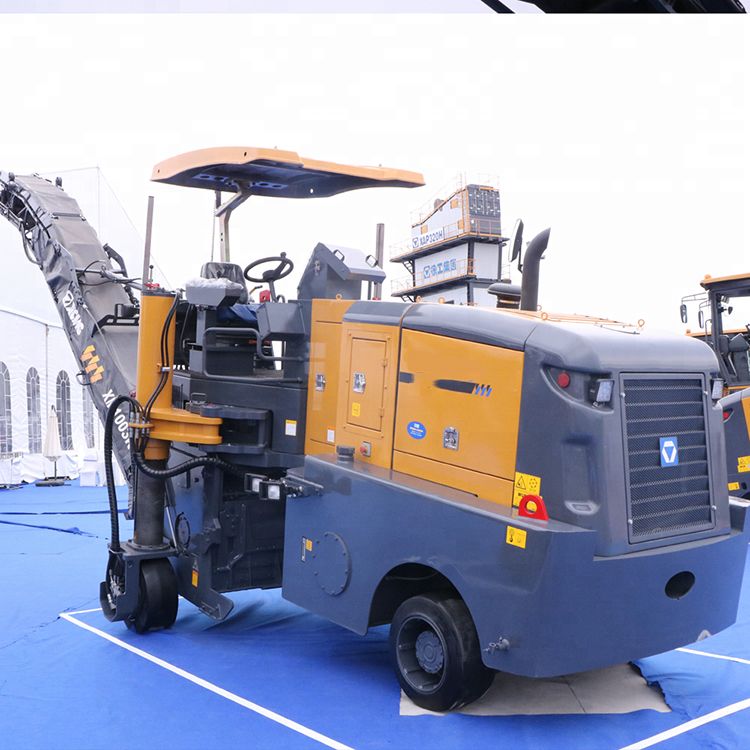

XCMG XM1305F Cold Milling Machine
The XM1305F milling machine is high-performance medium milling machine with front conveyor, which is mainly used for excavation and renovation of asphalt concrete pavement in highways, town roads, air ports, parking lots etc. and is also for cleaning upheaval, grease, overlapping curves, tracks and so on, the machine also can excavate groove, and also used for galling and milling.
This equipment adopts intelligent control, limit load, sprinkler intelligent control, engine high temperature protection, construction data management and other advanced technologies. It is a road maintenance equipment with advanced technology, high efficiency, convenient and flexible operation and high reliability.
Parameter
Engine Model | SC9DK280G3 |
Manufacturer | Shangchai |
Rated power/speed | 206/2200kw/rpm |
Working speed | 0-30m/min |
Traveling speed | 0-5km/h |
Theoretical gradeability | 80% |
Ground clearance | 300mm |
Gross machine weight | 21500kg |
Maximum Milling width | 1300mm |
Maximum milling depth | 300mm |
Amount of tools pcs | 100Bundle |
Diameter of rotor (Including cutter) | 980mm |
Transportation dimensions | / |
Dimensions of belt conveyor | / |
Fuel tank | 480L |
Hydraulic oil tank | 120L |
Water tank | / |
Request a Quote
