Rated Power:103/2200Kw/rpm
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

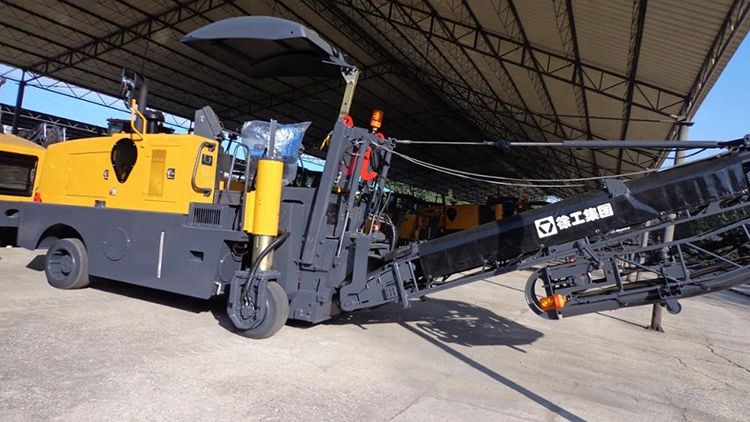

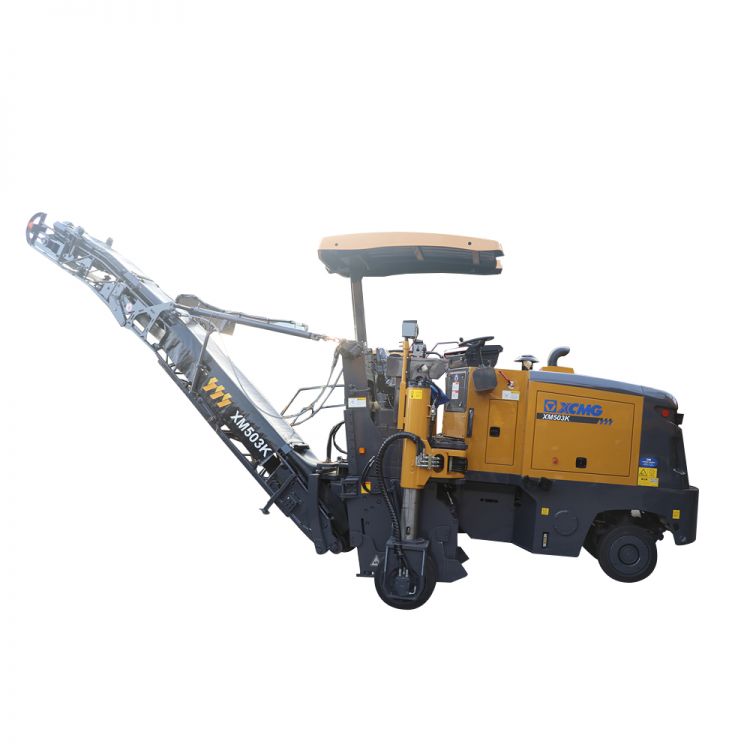

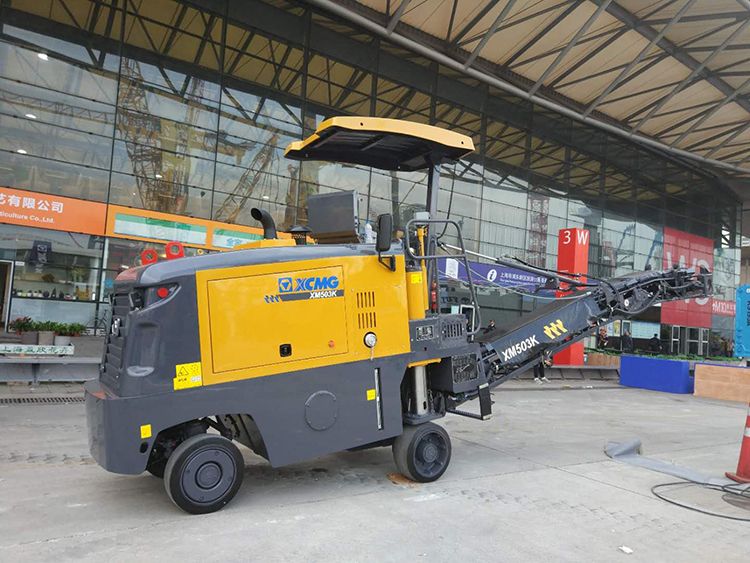

XCMG XM503K Cold Milling Machine
● Power system: It adopts the advanced, mature and reliable Shangchai new generation four-valve 140 horsepower SC4H water-cooled engine, which has strong power and low fuel efficiency.
●Travel system: tire-type, four-wheel drive, hydraulic and mechanical drive, capable of infinitely variable speed, and has one driving gear and three working gears. The rear wheel is an independent suspended support wheel. The right rear wheel can swing back inward to facilitate edge milling.
● Steering system: fully hydraulic front axle steering, with steering angle indication function; small steering radius, capable of milling operations along the caisson cover.
● Milling system: It adopts hydraulic and mechanical transmission mode, which makes milling reliable and powerful; imported cutter head ensures the service life of the tool; it has the function of slow rotation of the rotor, which facilitates tool change.
● Milling depth control: By adjusting the lifting and lowering of the left and right rear legs, wedge-shaped milling is allowed, and it has a fast and slow depth control function; a depth indicator ruler is installed on the rear legs to display the milling depth. The equipment can be equipped with an optional automatic leveling system.

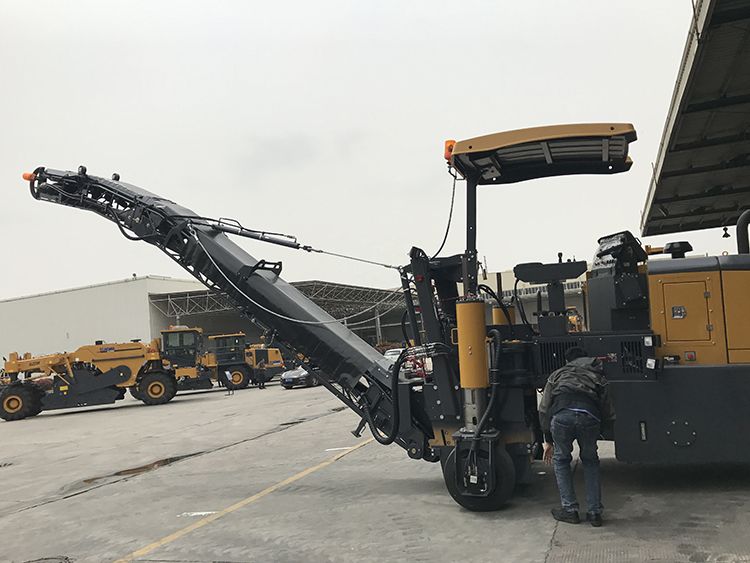

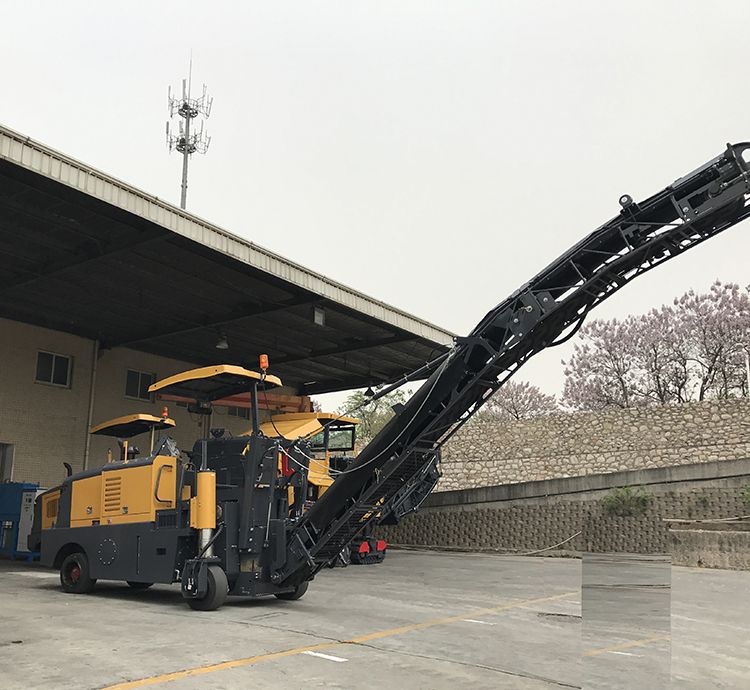

● Conveying system: It has a fully enclosed conveying belt with a maximum discharge height of 3.8 meters. It has the ability to swing around 30 degrees and the function of adjusting the discharge height.
● Ceiling: Hydraulic cylinder lifts and lowers the ceiling, and electronically controlled height adjustment makes transportation more convenient.
● Water sprinkling system: Fan-shaped water nozzles spray water onto the cutter head to cool the cutter and reduce the spread of dust during milling. The large-capacity water tank allows the machine to work uninterrupted for a longer time. Electric water pump and sprinkler head are easy to disassemble and clean.
● Driving station and instrument panel: The seat can be adjusted forward and backward; the control platform is spacious; the instrument panel and each control handle conform to the ergonomic design concept, with comfortable operation and good visibility.
● Lighting system: The machine is equipped with night working lights to facilitate night operations.
● Hydraulic pick (optional): quick-change joint connection to achieve road crushing.
Parameter
Engine Model | SC4H-C140 |
Manufacturer | Shangchai |
Rated power/speed | 103/2200kw/rpm |
Working speed | 0-30.7m/min |
Traveling speed | 0-7.5km/h |
Theoretical gradeability | 60% |
Ground clearance | 210mm |
Gross machine weight | 7950kg |
Maximum Milling width | 500mm |
Maximum milling depth | 210mm |
Amount of tools pcs | 60Bundle |
Diameter of rotor (Including cutter) | 750mm |
Transportation dimensions | 3676X1888X2530mm |
Dimensions of belt conveyor | 6000X860X860mm |
Fuel tank | 180L |
Hydraulic oil tank | 80L |
Water tank | 330L |
