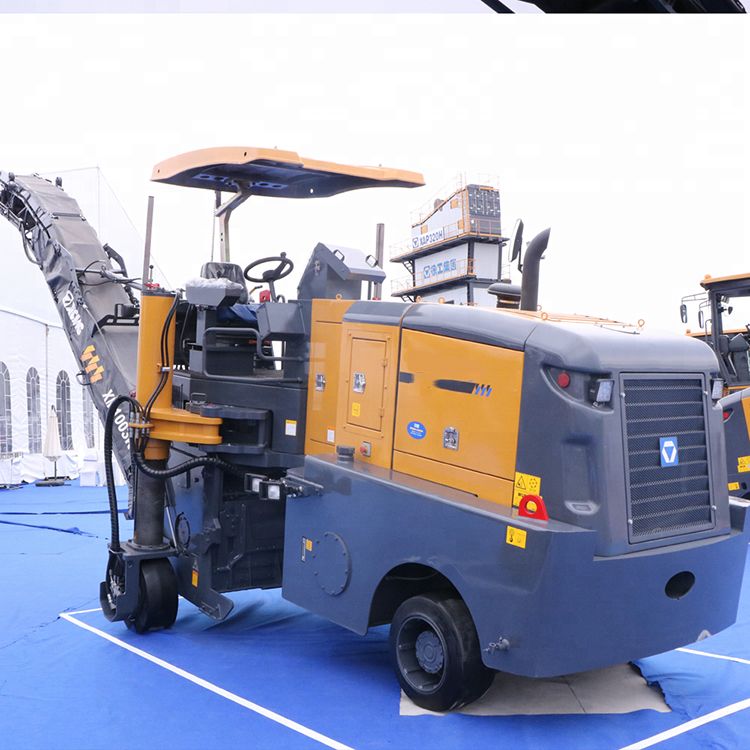

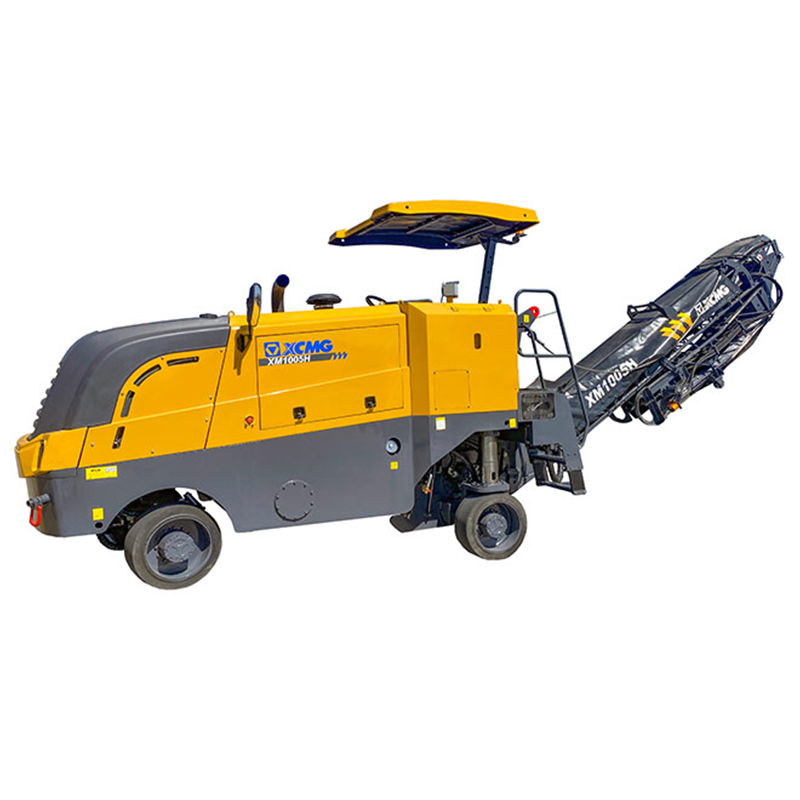

XCMG XM1005H Cold Milling Machine
VS


Engine Model:Cummins QSB6.7
Maximum Milling Width:1000mm
Rated Power:164/2200Kw/rpm

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

XCMG XM1005H Cold Milling Machine

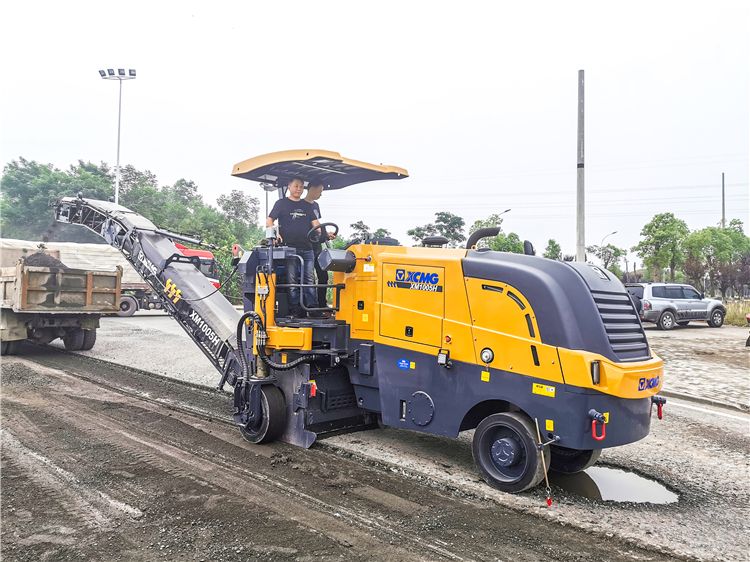

XM1005H road milling machine is a high-performance 1M milling machine. It is mainly used for excavation and refurbishment of asphalt concrete pavements of highways, urban roads, airports, goods yards and parking, etc. It can effectively remove the upheaval, oil swell, cobwebbing, track, etc of pavement; excavate the pavement pit and groove; and also can be used for the brushing of cement pavement and milling of surface staggering.

The equipment has highly intelligent control technologies, including one-key construction control technology, power self-distribution technology, engine speed intelligence control technology, four-wheel all-hydraulic drive technology, intelligent water spraying control technology, construction data management technology and vehicle health management technology, etc., so the equipment has advanced technology, simple operation and effective construction.

This equipment has a high working efficiency, simple construction technology, easily controllable milling depth, convenient and flexible operation, good maneuvering characteristics and high reliability. The materials resulting from milling can be directly recycled and widely used in the renovation, maintenance and curing of bituminous concrete pavement.

Parameter

Engine ModelQSB6.7
ManufacturerCummins
Rated power/speed164/2200kw/rpm
Working speed0-50m/min
Traveling speed0-8.5km/h
Theoretical gradeability57%
Ground clearance205mm
Gross machine weight/
Maximum Milling width1000mm
Maximum milling depth220mm
Amount of tools pcs/
Diameter of rotor (Including cutter)860mm
Transportation dimensions4800*2295*2650 4800*1985*2650mm
Dimensions of belt conveyor7435*1020*980mm
Fuel tank520L
Hydraulic oil tank120L
Water tank850L
