Feature

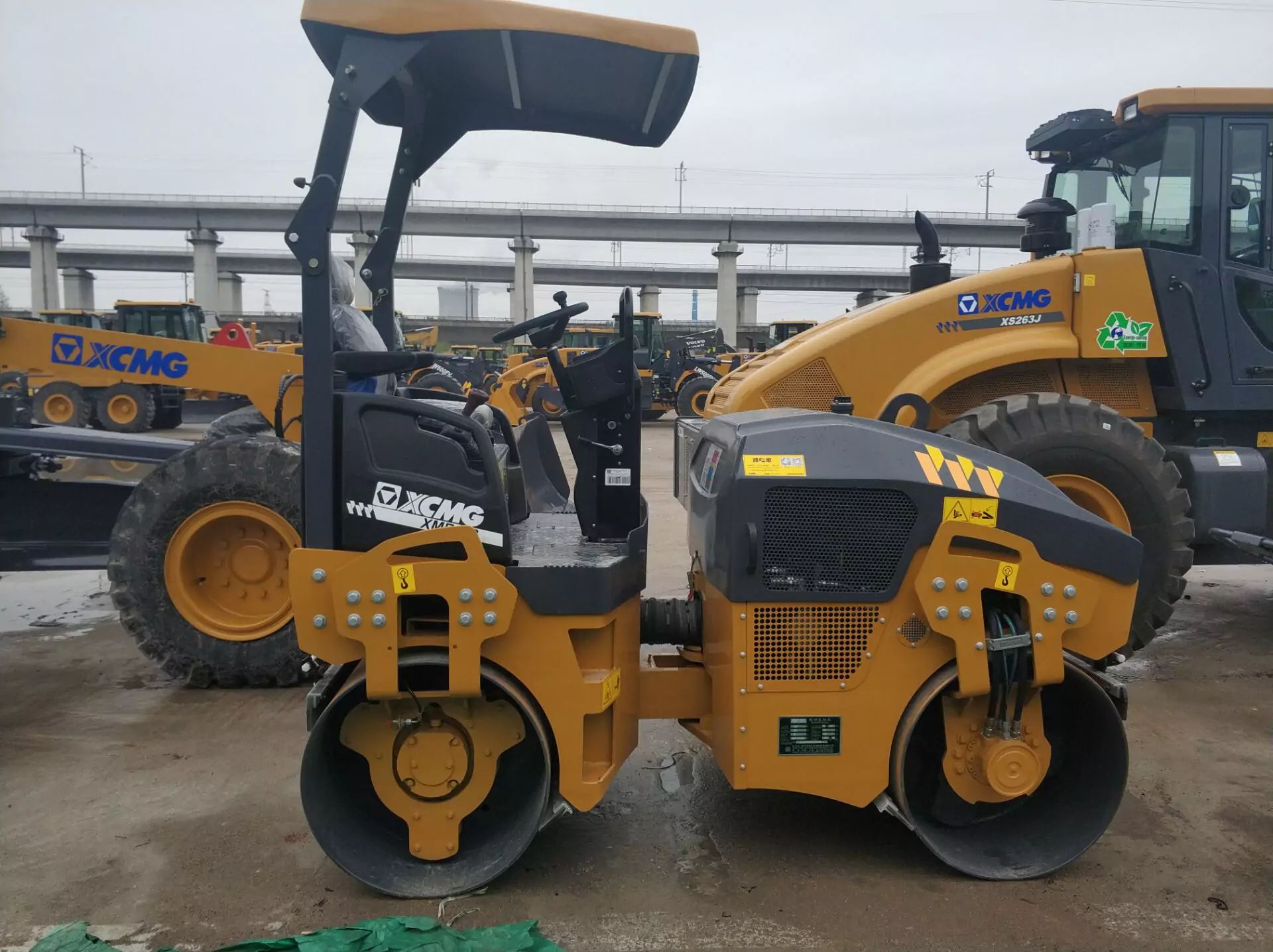

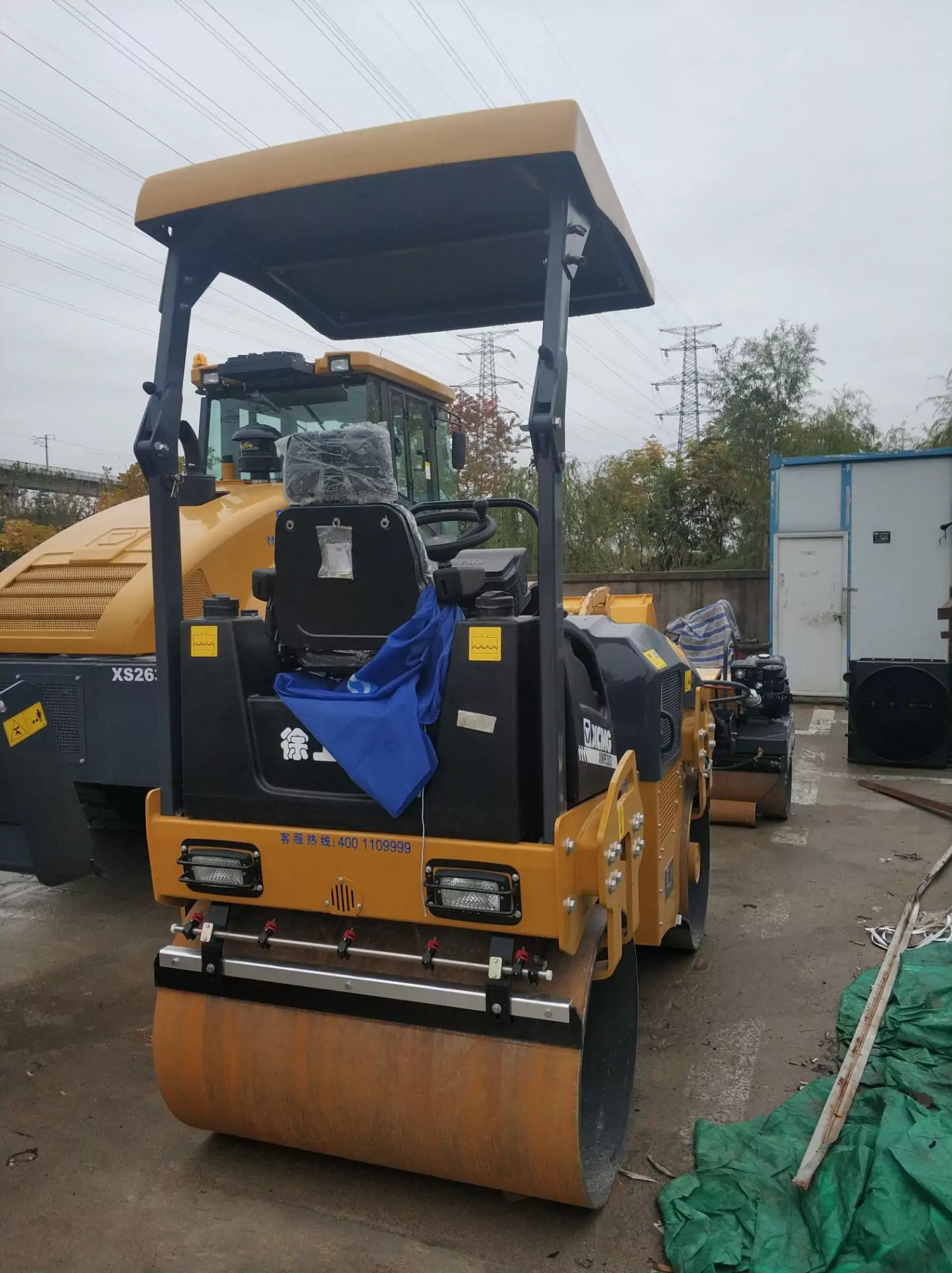

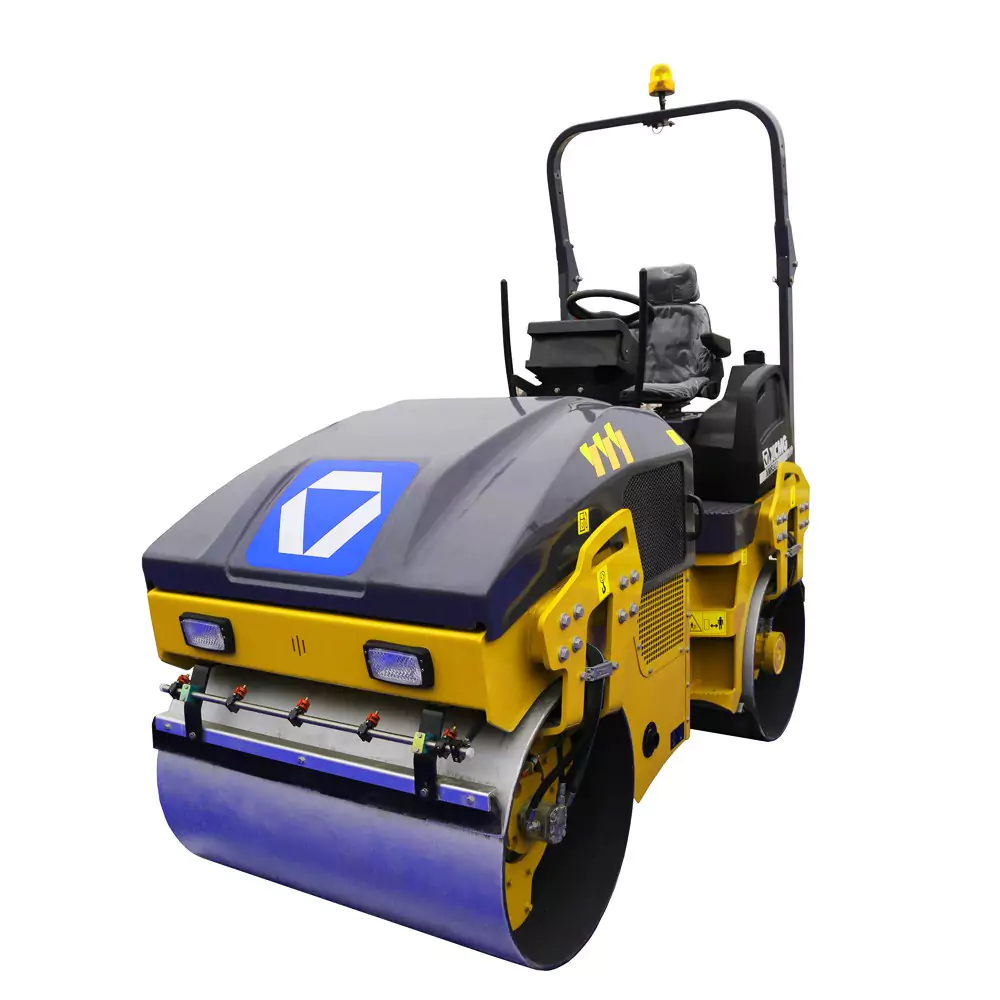

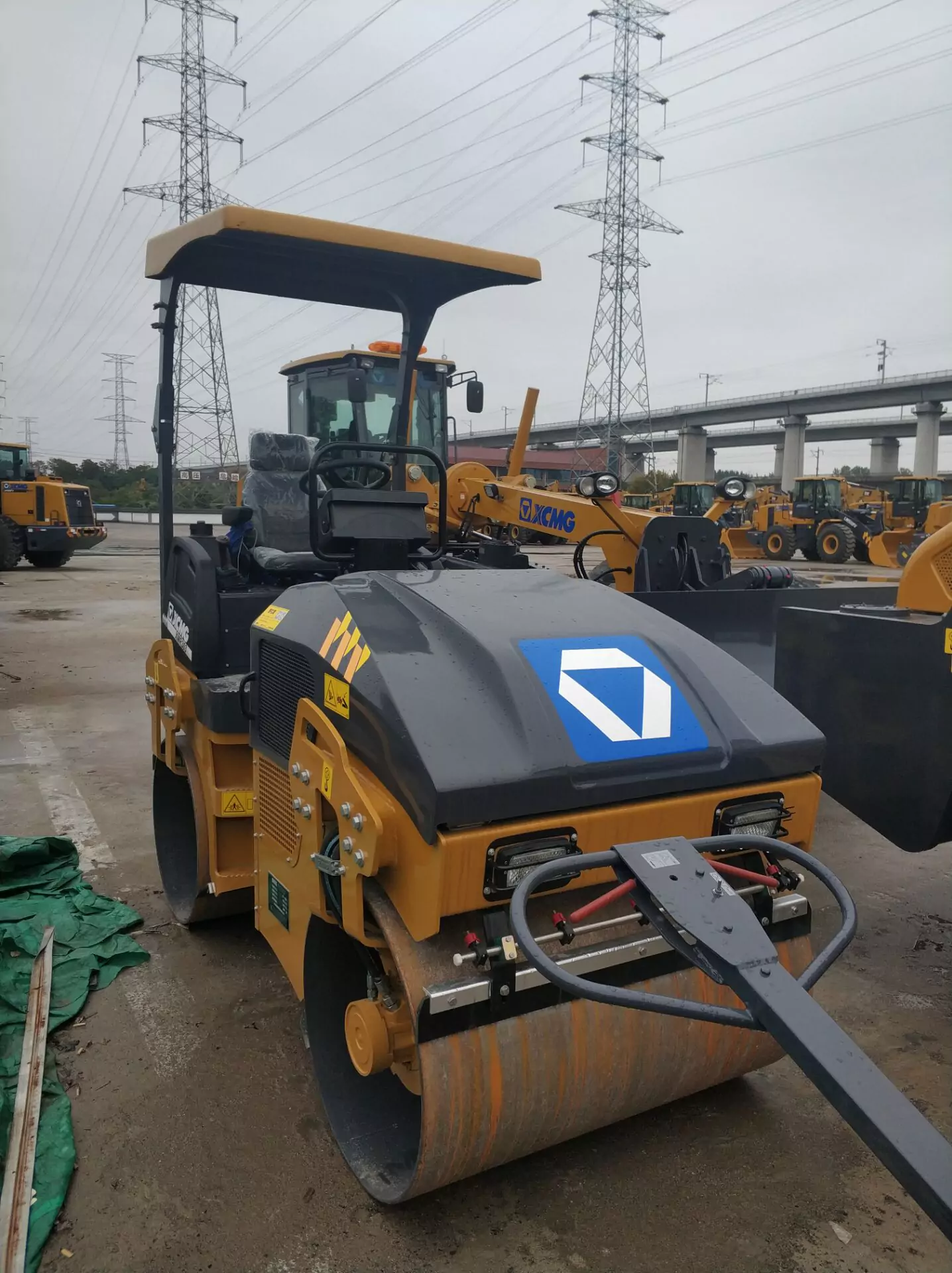

XCMG XMR303 Light Weight Compactor
XMR303 double-drum vibratory road roller is a light-duty vibratory road roller in operating weight of 3t. It’s mainly applicable for the compacting of surface layers and curbs for asphalt and cement projects and the compacting of base and sub-base layers and sand and gravel materials and is an ideal compacting machine for the constructions of parking lots, compacting of driving lanes, sidewalks, and bikeways, and the maintenances of all roads. It features small amplitude and high frequency and is attached with mud scraper and sprinkler.
Parameter
| Type | / |
| Operating weight | 3000Kg |
| Axle load, front | 1500Kg |
| Axle load, rear | 1500Kg |
| Static linear load | 129N/cm |
| Engine manufacturer | Changchai |
| Engine Model | ZN390B |
| Rated Power | 28.5Kw/rpm |
| Speed range | 0-9.8km/h |
| Vibration frequency | 60Hz |
| Vibration amplitude | 0.46mm |
| Centrifugal force | 32kN |
| Working width | 1200mm |
| Max. gradeability | 30% |
| Track radius, out | 2990/4190mm |
| Overall dimensions | 2682×1328×2682mm |
