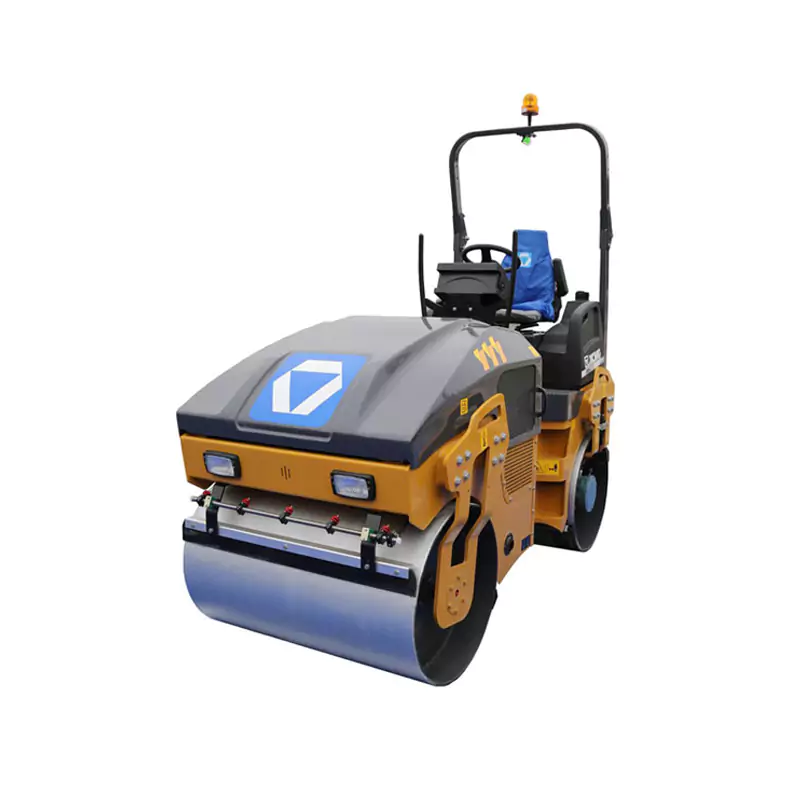

XCMG XMR353E Light Weight Compactor
VS


Engine Model:Changchai ZN390B
Operating Weight: 3500Kg
Axle Load Front:1750Kg

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

XCMG XMR353E Light Weight Compactor


XMR353E vibratory road roller is a single-drive single-vibrating road roller developed on the basis of original XMR303 vibratory road roller and meets the China-III emission regulation for non-road mobile machinery. It’s mainly applicable for the compacting of surface layers and curbs for asphalt and cement projects and the compacting of base and sub-base layers and sand and gravel materials and is an ideal compacting machine for the constructions of parking lots, compacting of driving lanes, sidewalks, and bikeways, and the maintenances of all roads. It features small amplitude and high frequency and is attached with mud scraper and sprinkler. The vibrating can be interrupted for this vibratory road roller to complete the leveling of road and pre-compacting of fill stratum in place of a static road roller.

Parameter

Type/
Operating weight3500Kg
Axle load, front1750Kg
Axle load, rear1750Kg
Static linear load111/173N/cm
Engine manufacturerChangchai
Engine ModelZN390B
Rated Power28.5Kw/rpm
Speed range0-10.3km/h
Vibration frequency50Hz
Vibration amplitude0.5mm
Centrifugal force32kN
Working width1200mm
Max. gradeability30%
Track radius, out2990/4190mm
Overall dimensions2682×1328×2752mm
