View larger image
Features
Working Width: 2360mm
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

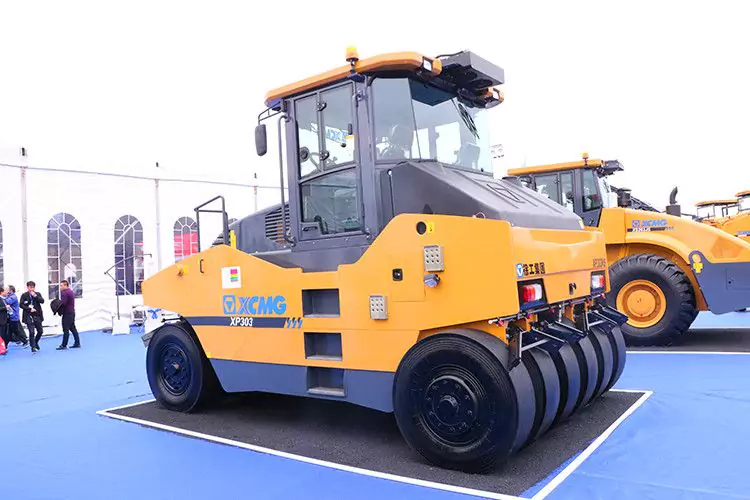

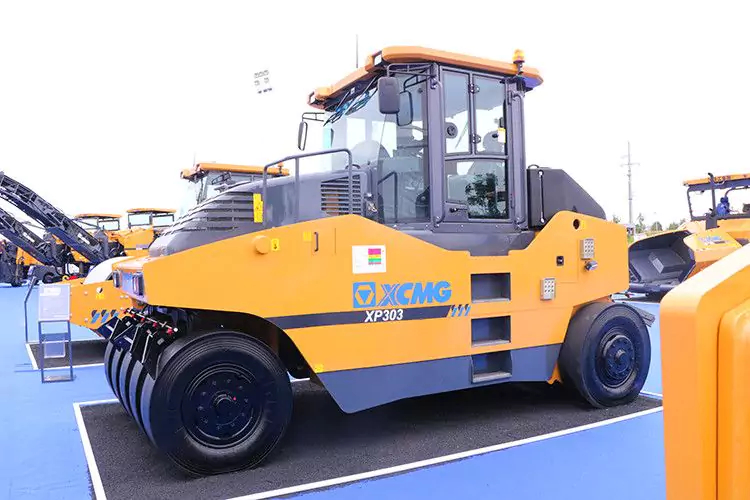

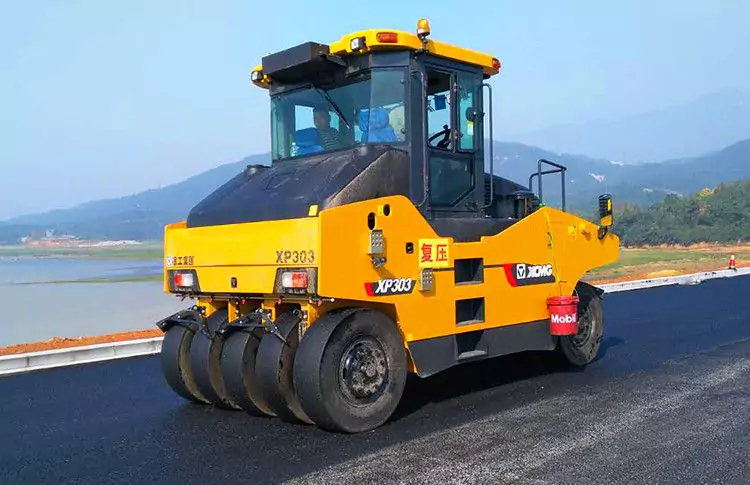

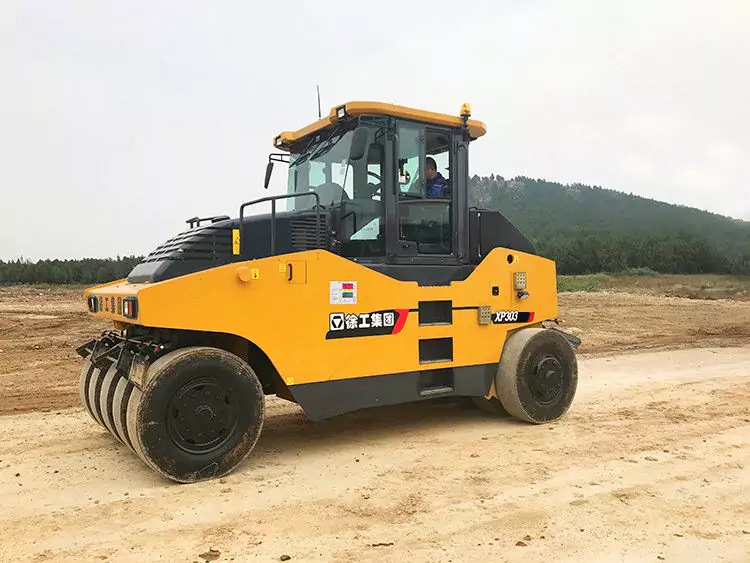

XCMG XP303 Pneumatic Roller
XP303 pneumatic roller is a large-tonnage tyre roller produced according to market requirements, which will take pneumatic tyres as working device for compacting paved materials. The tyre roller is mainly applicable for compacting operation of asphalt pavement, foundation layer, secondary foundation layer, dam and filling engineering. It is an ideal set of compacting equipment for building high grade highway, airport, port, dam and industrial construction site.
Parameter
| Maximum operating weight | 30300Kg |
| Water tank capacity | 650L |
| Counterweight total | 14550Kg |
| Engine manufacturer | SDEC |
| Engine Model | SC7H180.2G3 |
| Rated Power | 132Kw/1800rpm |
| Speed range(Forward)Speed (1)(2)(3) | 0-8/0-17/-km/h |
| Speed range(Backward)Speed (1)(2) | -/-km/h |
| Max. gradeability | 30% |
| Track radius, out | 7620mm |
| Ground clearance | 300mm |
| Wheel base | 3840mm |
| Steering angle | 35° |
| Braking distance | <5m |
| Working width | 2360mm |
| Tire numbers | Front 4/Rear 5 |
| Tire overlap | 65mm |
| Ground pressure | 200～ 545Kpa |
| tyre size | 13/80-20PR |
| Number of tire layers | 16 |
| tyre presure | 600～ 650Kpa |
| Overall dimensions | 4925×2530×3400mm |
