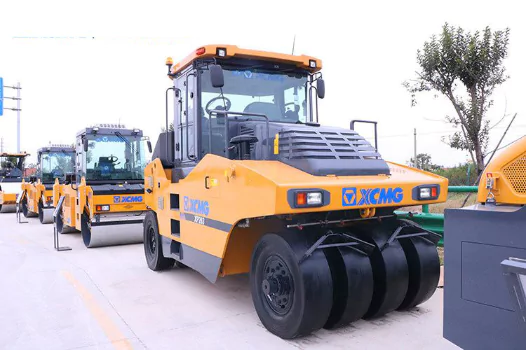

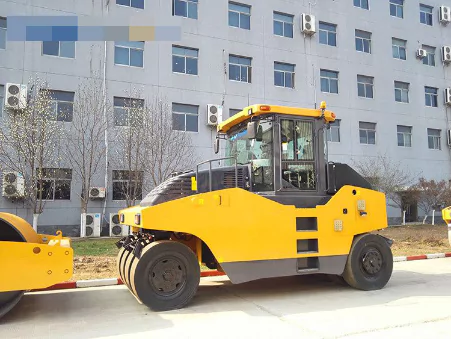

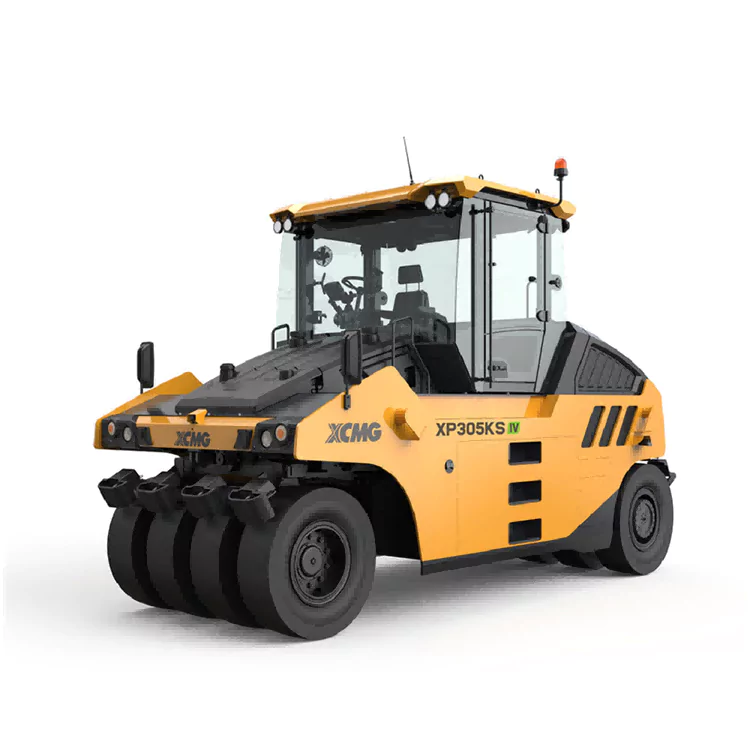

XCMG XP305KSIV Pneumatic Roller

(1) Machine information

The machine weighs 30.3 tons, with 5 front and 6 rear tires, front-wheel steering and rear-wheel drive.

(2) Efficient compaction

The machine has a single tire load of 2.75 tons, a strong ground contact pressure of 460 kPa, and increased surface density and compaction depth. It uses a special 11.00-20-16PR bias tire, with a large overlap between the front and rear wheels and high compaction flatness.

(3) Dual-bridge drive technology

The internationally advanced dual-bridge drive is adopted, which can achieve greater climbing ability and higher driving speed, and the machine has strong driving ability. It also realizes the industry’s first 5 front and 6 rear tire layout, with stronger climbing ability, which can reach 30%. At the same time, the machine speed can reach 14 km/h, and the operating efficiency is high. There is no chain drive, which makes driving safer.
