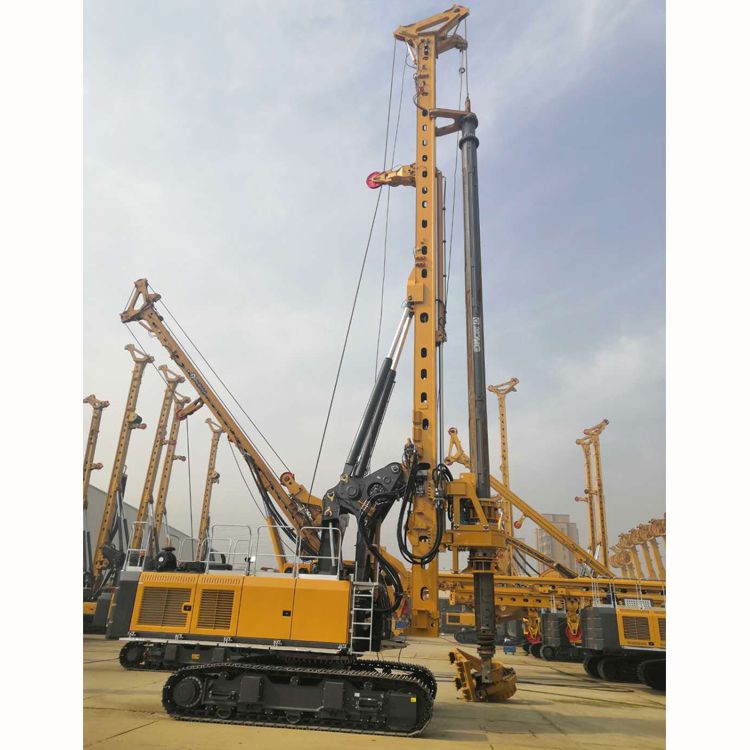

XR130E-1

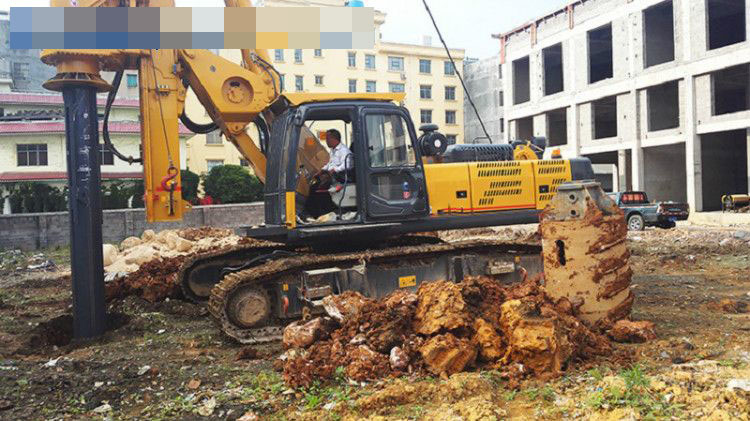

XR130E-4

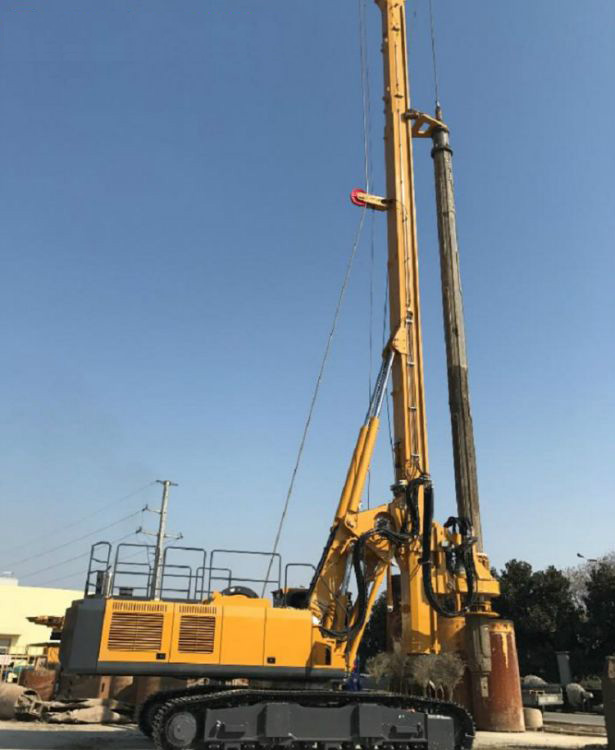

XR130E-2

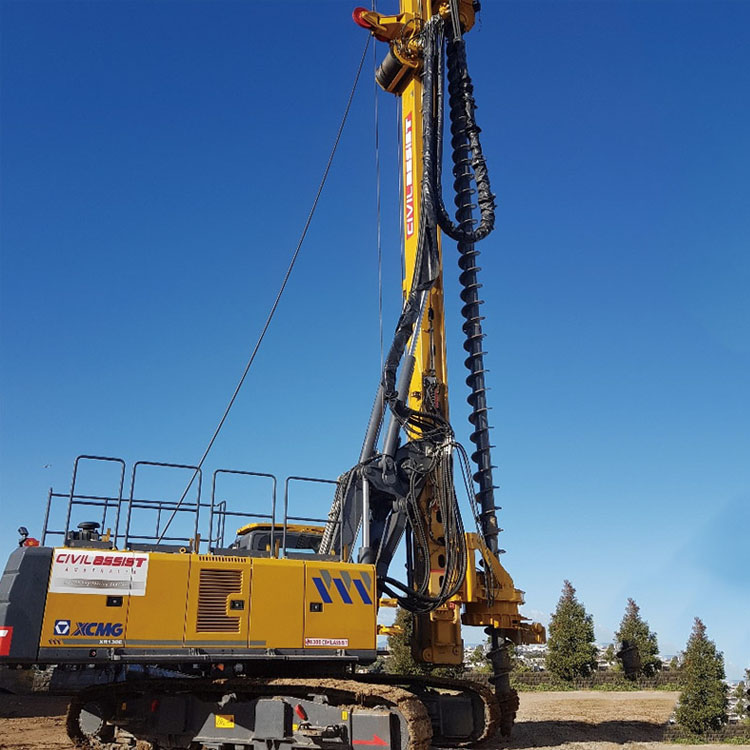

XR130E-1 (2)

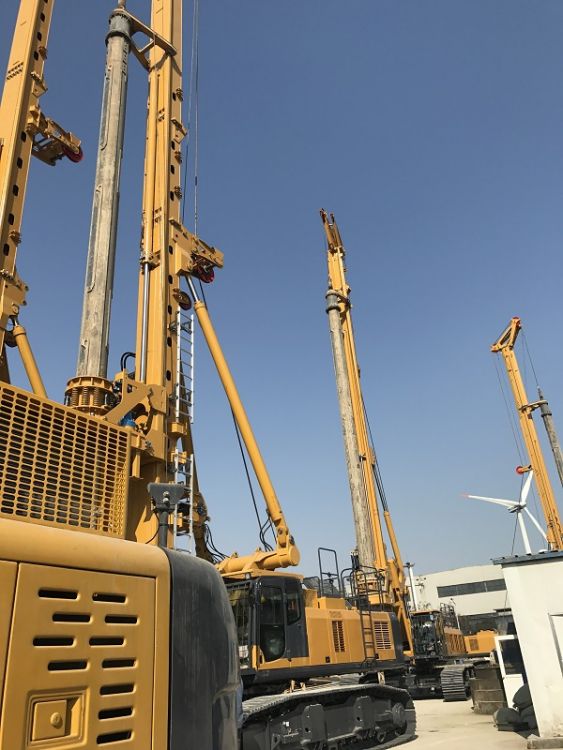

XR130E-3

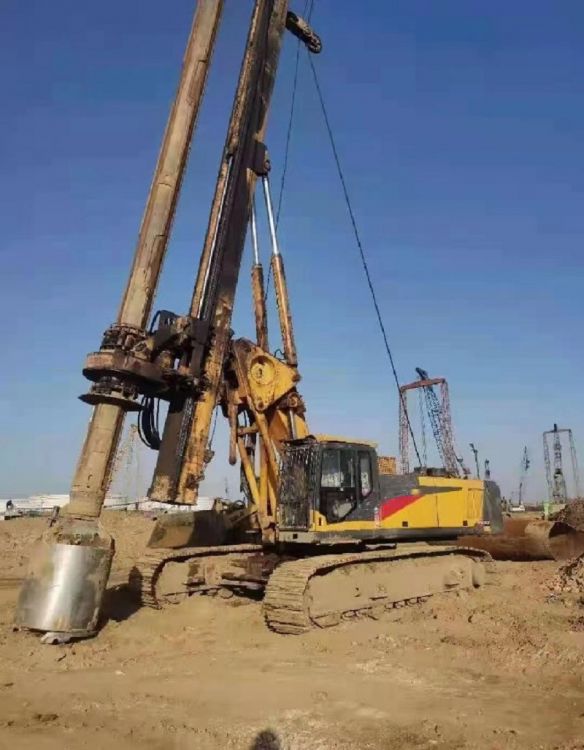

XR130E-5
XCMG XR130E CFA Rotary Drilling Rig
VS


Operating weight:45t

Rated Power:169kW


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

XCMG XR130E CFA Rotary Drilling Rig


XCMG XR130E CFA applicable for concrete cast in situ pile for foundation construction such as urban construction,railway,highway,bridge,subway and building.

XR130E rotary drilling rig adopts special hydraulic telescopic crawler chassis for rotary drilling rigs and large-diameter slewing bearing, which meets the super stability and ease of transport, and the extra-long wheelbase, which is more adaptable to the ground.



1、Adopting special hydraulic telescopic crawler chassis for rotary drilling rigs and large diameter slewing bearing, it meets the super stability and convenience of transport, and the extra-long wheelbase makes it more adaptable to the ground.

2、The whole machine is transported with poles, the transport width is only 2.5 metres, the transport height is only 3.5 metres, the transport weight is light, and the use is more convenient.

3、High output speed of power head, main and sub roll working end, more efficient construction efficiency.

4、Reliable performance, high cost performance, more expansion functions, more choice.

5、It adopts Guangxi Cummins electronically controlled turbocharged engine, with strong power, and its emission meets the Euro III emission standard, and it can be equipped with imported Cummins engine as an option.

6、Using Kawasaki hydraulic system, more reliable, while applying many mature technologies of XCMG.

7、Adopting CAN bus all-electric control technology, simplifying the hydraulic pipeline, improving the reliability of the whole vehicle, and fully embodying the integration of man, machine, liquid and electricity.

8, a variety of specifications of the drill pipe configuration can be selected to meet the efficient construction of different strata.

9、Optional cylinder pressurisation, winch pressurisation, casing drive, long spiral and other functions to meet the various needs of customers.

Parameter

--Engine
Engine ModelQSB7-C227
Rated Power169kW
--Rotary Drive
Max.output torque130kN.m
Rotary Speed8-35r/min
Max.Drilling Diameterφ750mm
Max.Drilling Depth17m
--Crowd cylinder
Max.pull-down piston push340kN
Max.pull-down piston pull/
Max.pull-down piston stroke/
--Crowd Winch
Max.pull-down piston push/
Max.pull-down piston pull/
Max.pull-down piston stroke/
--Main Winch
Max.pulling force75kN
Max.line speed26m/min
--Auxiliary Winch
Max.pulling force50kN
Max.line speed70m/min
Mast Rake(Slide/forwards/backwards)/
--Undercarrige
Max.traveling speed2.7km/h
Max.grade ability40%
Min.clearance345mm
Track shoe width600mm
Distance between tracks2500-3600mm
--Hydraulic system
Working pressure35MPa
Overall Drilling Weight42/36t
--Dimension
Working condition7490×3600×22176mm
Transporation condition14097×2500×3500mm
