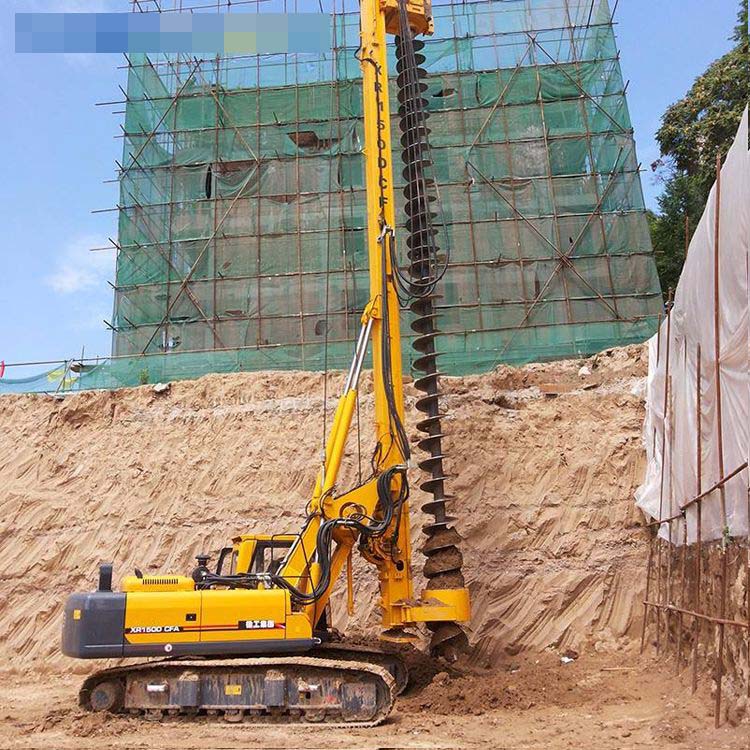

  • XR150D CFA-1

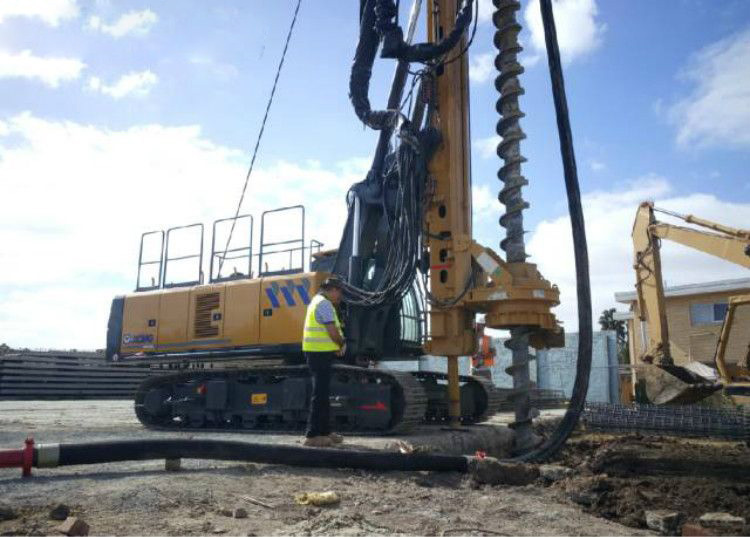

  • XR150D CFA-2

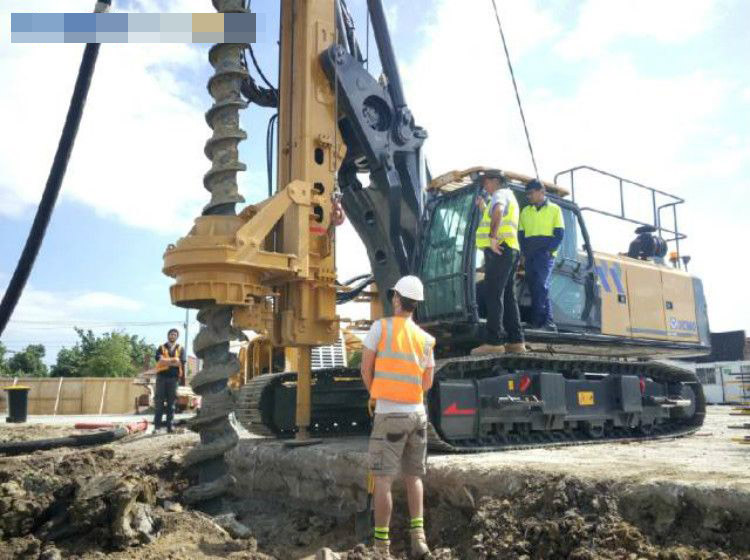

  • XR150D CFA-3

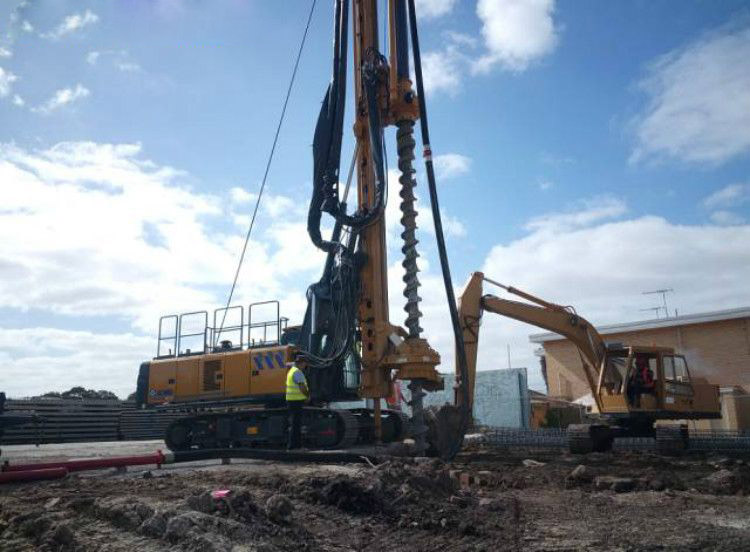

  • XR150D CFA-4

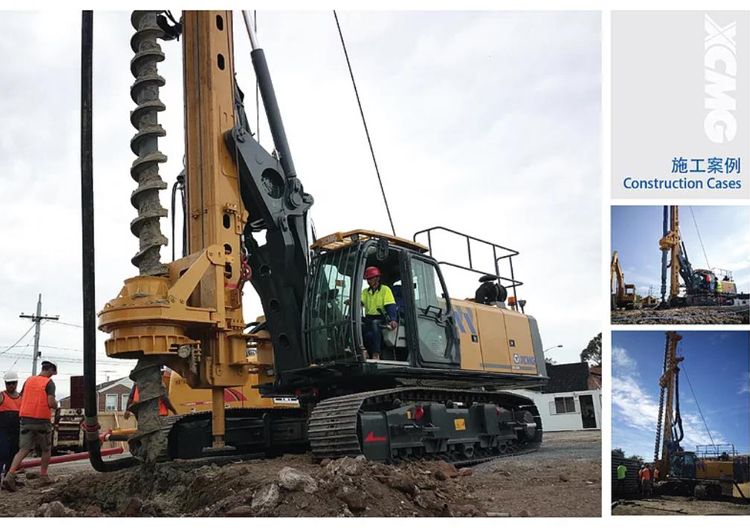

  • XR150D CFA-6
View larger image
XR150D CFA-1
XR150D CFA-2
XR150D CFA-3
XR150D CFA-4
XR150D CFA-6
XCMG XR150D CFA Rotary Drilling Rig
VS


Operating weight:48/43t

Rated Power:150kW


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

XCMG XR150D CFA Rotary Drilling Rig


XCMG XR150D CAF adopts special hydraulic telescopic crawler chassis for rotary drilling rigs and large-diameter slewing bearing to satisfy super stability and convenience of transport. It adopts the original imported Cummins electronically controlled turbocharged engine, which has strong power, and the emission meets the Euro III emission standard, which is environmentally friendly and energy-saving.



1、Adopting special hydraulic telescopic crawler chassis for rotary drilling rigs and large diameter slewing bearing to meet the super stability and convenient transport.

2、Adopting the original imported Cummins electronically controlled turbocharged engine, with strong power, and the emission meets the Euro III emission standard, which is environmentally friendly and energy-saving.

3、Imported Kawasaki hydraulic parts, power system matching is reasonable, high construction efficiency.

4、Main winch adopts four times the rate of wire rope lifting, effectively improve the lifting force.

5、Multi-purpose, CFA method and rotary drilling method can be achieved by replacing the working device.

6、Automatic control of the main winch lifts the drilling tools to match the concrete filling, improving the reliability of filling.

7、Centralised lubrication system is equipped as standard, which makes maintenance more convenient.

8、a variety of specifications of the drill pipe configuration can be selected to meet the efficient construction of different strata.

Parameter

--Engine
Engine ModelQSB7-C202
Rated Power150kW
--Rotary Drive
Max.output torque150kN.m
Rotary Speed7-33r/min
Max.Drilling Diameterφ800mm
Max.Drilling Depth20m
--Crowd cylinder
Max.pull-down piston push400kN
Max.pull-down piston pull/
Max.pull-down piston stroke/
--Crowd Winch
Max.pull-down piston push/
Max.pull-down piston pull/
Max.pull-down piston stroke/
--Main Winch
Max.pulling force72kN
Max.line speed28m/min
--Auxiliary Winch
Max.pulling force50kN
Max.line speed70m/min
Mast Rake(Slide/forwards/backwards)/
--Undercarrige
Max.traveling speed2.5km/h
Max.grade ability40%
Min.clearance384.5mm
Track shoe width700mm
Distance between tracks4200mm
--Hydraulic system
Working pressure35MPa
Overall Drilling Weight48/43t
--Dimension
Working condition8620×4200×22850mm
Transporation condition13060×2960×3125mm
