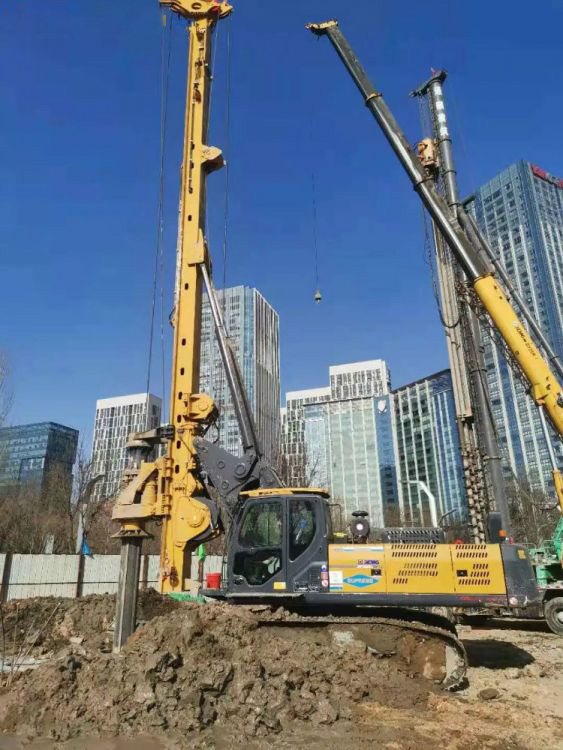

XR160E

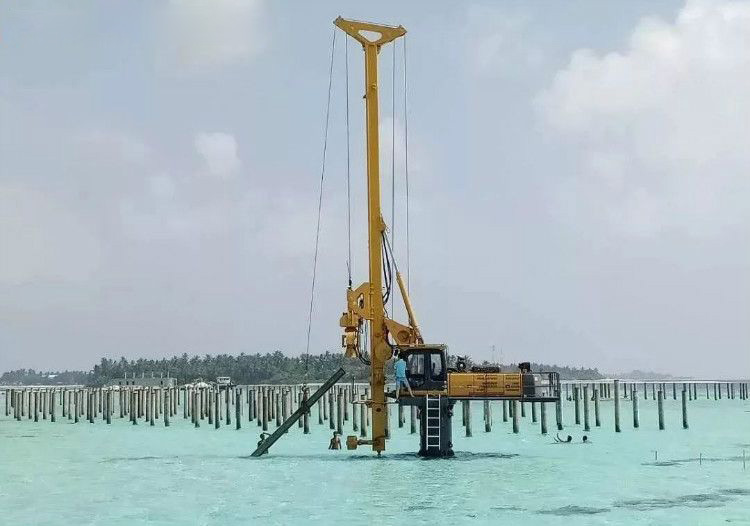

XR160E-1

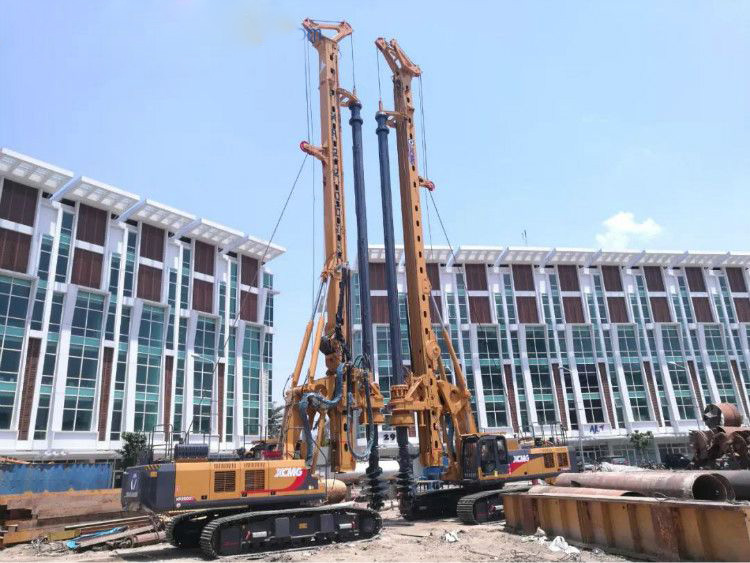

XR160E-6

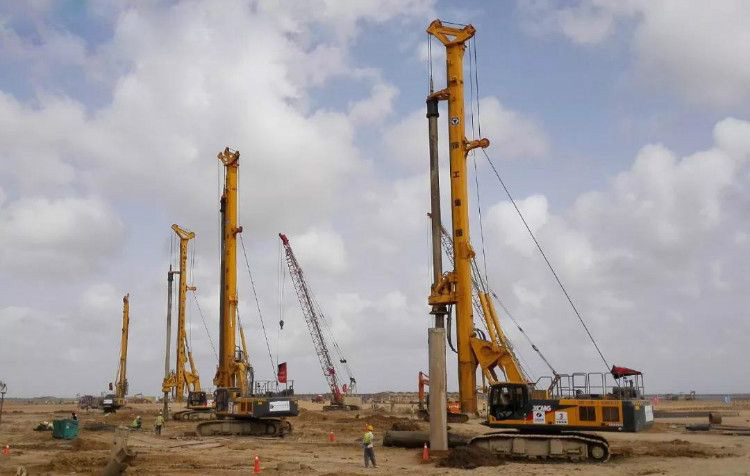

XR160E-7

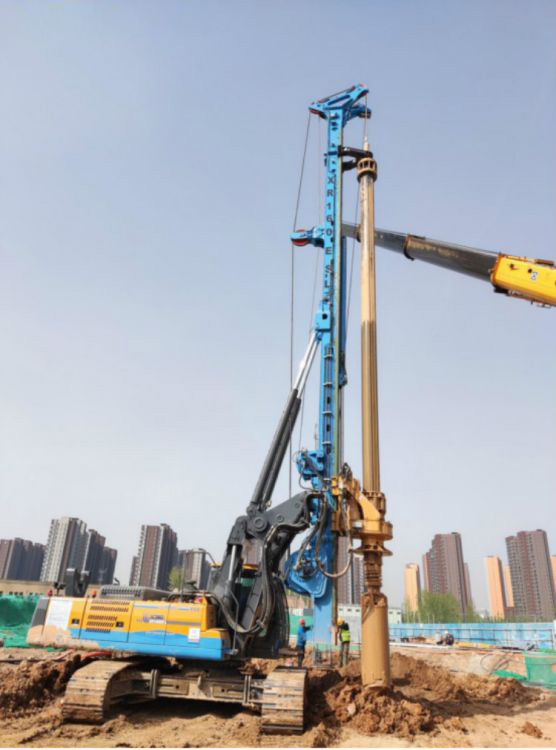

XR160E-3
XCMG XR160E Rotary Drilling Rig
VS


Operating weight:53t

Rated Power:150kW


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

XCMG XR160E Rotary Drilling Rig


XCMG XR160E rotary drilling rig is multi-functional, which can achieve rapid switching of functions such as cylinder pressurisation, winch pressurisation, long auger and double power head to meet more different project construction needs.



1、Multi-functional machine, it can realise rapid switching of functions such as cylinder pressurization, winch pressurization, long spiral, double power head, etc., to meet more different engineering construction needs;

2、Configured with Cummins electronically controlled turbocharged engine, strong power, convenient and quick service;

3、The maximum output torque of the power head can reach 160kN.m, and the rotating speed can reach 35r/min, which makes the working efficiency higher;

4、The power head can be equipped with optional high-speed soil dumping function;

5、Main and vice winch both adopt single-row rope technology, the wire rope life is 2~4 times longer than multi-layer rope, and the use cost is lower;

6、Adopting double-acting arm large parallelogram luffing mechanism, the support angle is large, the support range increases by 24%, the operation is more stable;

7、Hydraulic main system adopts negative flow control technology, fast response, good handling performance;

8、High power double hydraulic oil cooler, meet the high temperature area construction;

9、Intelligent control system realises the functions of automatic adjustment and display of verticality of drilling mast, automatic slewing, automatic soil dumping and so on;

10、Adopting special hydraulic crawler chassis for TDP series rotary drilling rigs, large diameter slewing bearing, better working stability.

Parameter

--Engine
Engine ModelQSB7
Rated Power150kW
--Rotary Drive
Max.output torque160kN.m
Rotary Speed5-35r/min
Max.Drilling Diameter1500 / 1300mm
Max.Drilling Depth56m
--Crowd cylinder
Max.pull-down piston push160kN
Max.pull-down piston pull160kN
Max.pull-down piston stroke4.2m
--Crowd Winch
Max.pull-down piston push160kN
Max.pull-down piston pull180kN
Max.pull-down piston stroke13m
--Main Winch
Max.pulling force160kN
Max.line speed80m/min
--Auxiliary Winch
Max.pulling force60kN
Max.line speed80m/min
Mast Rake(Slide/forwards/backwards)4/5/15°
--Undercarrige
Max.traveling speed2.5km/h
Max.grade ability40%
Min.clearance/
Track shoe width700mm
Distance between tracks2960-4200mm
--Hydraulic system
Working pressure35MPa
Overall Drilling Weight53t
--Dimension
Working condition7862 x 4200 x 19028mm
Transporation condition14053 x 2960 x 3295mm
