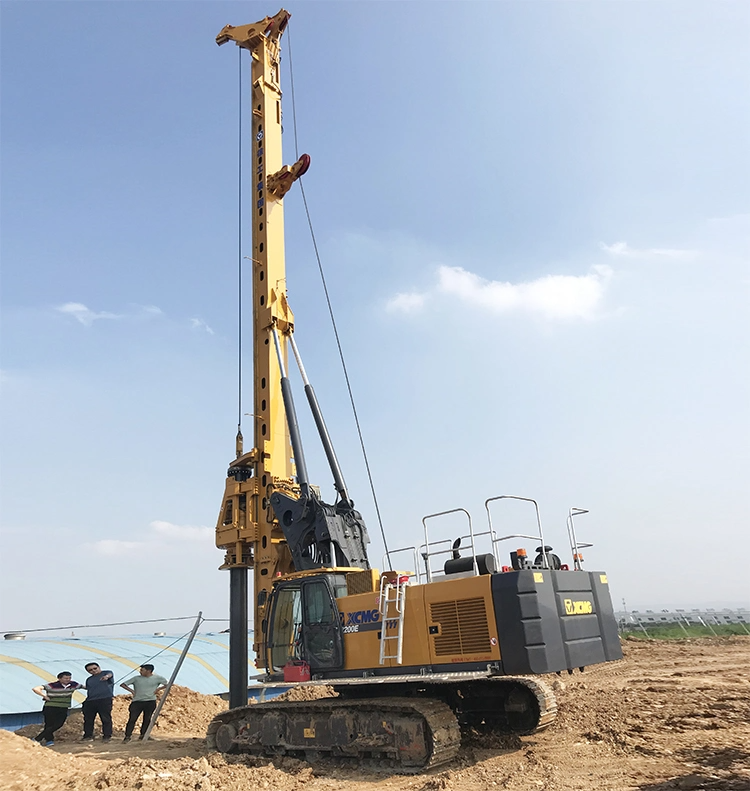

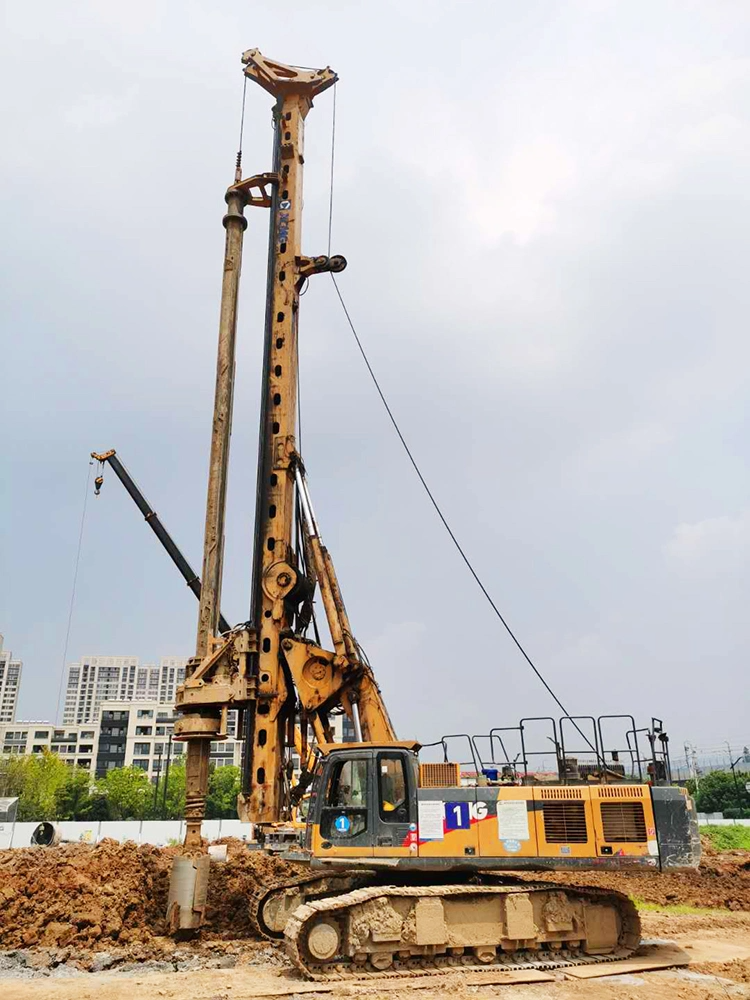

XCMG XR200E Rotary Drilling Rig

XCMG XR200E rotary drilling rig is multi-functional, which can achieve rapid switching of functions such as cylinder pressurisation, winch pressurisation, long auger and double power head to meet more different project construction needs.

1、Multi-functional machine, it can realise rapid switching of functions such as cylinder pressurization, winch pressurization, long spiral, double power head, etc., to meet more different engineering construction needs;

2、Configured with Cummins electronically controlled turbocharged engine, strong power, convenient and quick service;

3、The maximum output torque of the power head can reach 160kN.m, and the rotating speed can reach 35r/min, which makes the working efficiency higher;

4、The power head can be equipped with optional high-speed soil dumping function;

5、Main and vice winch both adopt single-row rope technology, the wire rope life is 2~4 times longer than multi-layer rope, and the use cost is lower;

6、Adopting double-acting arm large parallelogram luffing mechanism, the support angle is large, the support range increases by 24%, the operation is more stable;

7、Hydraulic main system adopts negative flow control technology, fast response, good handling performance;

8、High power double hydraulic oil cooler, meet the high temperature area construction;

9、Intelligent control system realises the functions of automatic adjustment and display of verticality of drilling mast, automatic slewing, automatic soil dumping and so on;

10、Adopting special hydraulic crawler chassis for TDP series rotary drilling rigs, large diameter slewing bearing, better working stability.
