Model:/
Rated Power(kW):399kW
Max.output torque(kN﹒m):/
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

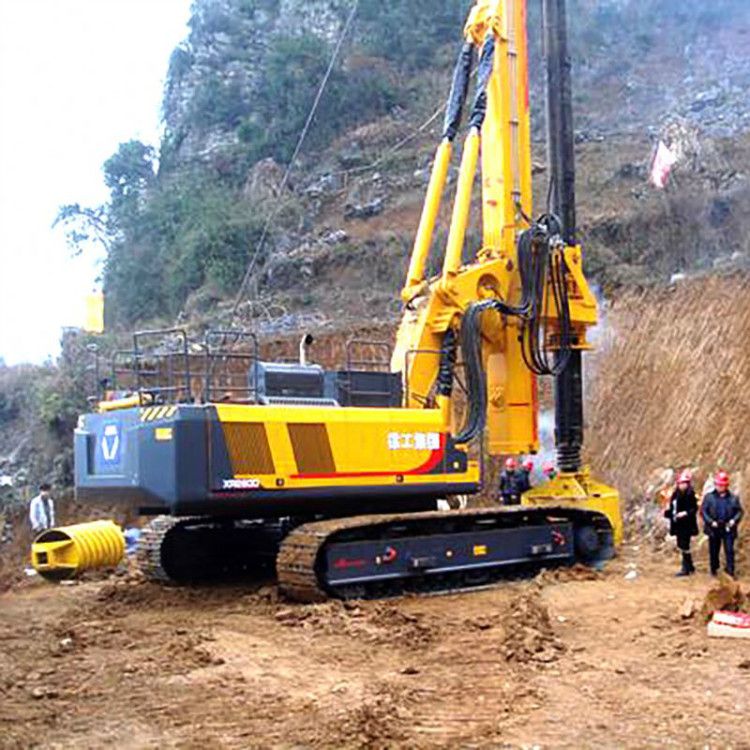

XCMG XR600E Rotary Drilling Rig
XCMG The XR600E applicable for concrete cast in situ pile for foundation construction such as urban construction,railway,highway,bridge,subway and building.
XR600E rotary drilling rig adopts optimised design of double boom luffing mechanism and optimised hinge point position, taking into account the construction stability and the convenience of transit.
1、Special hydraulic telescopic crawler chassis, large diameter slewing bearing, with super stability and convenient transport;
2、Cummins turbocharged engine with advanced electro-hydraulic control technology, strong power.
3、Front single-row rope main winch structure, wire rope life is greatly extended, lower cost of use.
4、Multiple drilling rod configurations are available to meet the construction of large hole deep pile hard ground construction, the maximum drilling depth of 102 metres.
5、Optional multi-function configuration: outrigger cylinder, casing drive. Good expandability.
6、The power head has normal mode and rock entry mode, respectively for soil and rock layer operation, which improves the construction efficiency;
7、Centralised lubrication system is equipped as standard, which makes maintenance more convenient and improves work reliability.
Parameter
--Engine | |
Engine Model | / |
Rated Power | 399kW |
--Rotary Drive | |
Max.output torque | / |
Rotary Speed | / |
Max.Drilling Diameter | φ4000mm |
Max.Drilling Depth | 150m |
--Crowd cylinder | |
Max.pull-down piston push | / |
Max.pull-down piston pull | / |
Max.pull-down piston stroke | / |
--Crowd Winch | |
Max.pull-down piston push | / |
Max.pull-down piston pull | / |
Max.pull-down piston stroke | / |
--Main Winch | |
Max.pulling force | / |
Max.line speed | / |
--Auxiliary Winch | |
Max.pulling force | / |
Max.line speed | / |
Mast Rake(Slide/forwards/backwards) | / |
--Undercarrige | |
Max.traveling speed | / |
Max.grade ability | / |
Min.clearance | / |
Track shoe width | / |
Distance between tracks | / |
--Hydraulic system | |
Working pressure | / |
Overall Drilling Weight | 225t |
--Dimension | |
Working condition | / |
Transporation condition | / |
Request a Quote
