Axle Load Front：5400Kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

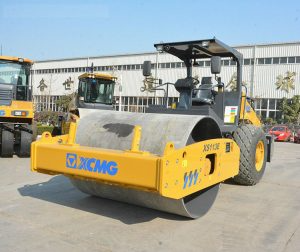

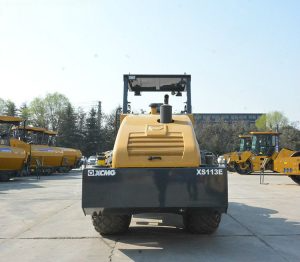

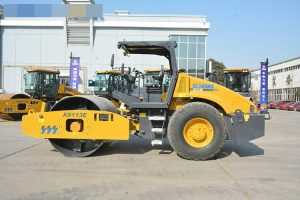

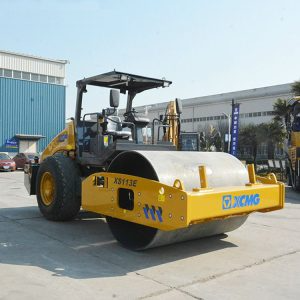

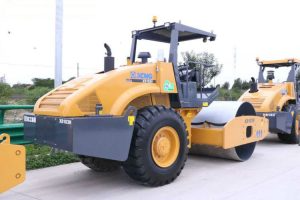

XCMG XS113E Single Drum Rollers & Soil Compactors
XS113E is a self-propelled, single-drum, fully-hydraulic, double-drive vibratory roller which is especially developed for the Southeast Asian market, with high exciting force, high compaction efficiency, good compaction quality etc. It is widely used in the compaction of base layer, subbase layer and rock fill on forestry roads, railways, highways, airports, ports, dams and industrial construction sites.
Parameter
| Operating weight | 10400Kg |
| Axle load, front | 5400Kg |
| Axle load, rear | 5000Kg |
| Static linear load | 248N/cm |
| Engine manufacturer | Cummins |
| Engine Model | 4BTA3.9-C125 |
| Rated Power | 93Kw/2200rpm |
| Speed range(Forward)Speed (1)(2)(3)(4) | 0-7.5/0-10/-/- |
| Speed range(Backward)Speed (1)(2)(3) | -/-/-/ |
| Vibration frequency | 30/35Hz |
| Vibration amplitude | 1.8/0.9mm |
| Centrifugal force | 240/158kN |
| Working width | 2130mm |
| Max. gradeability | 40% |
| Track radius, out | 6800mm |
| Overall dimensions | 5940×2300×3150mm |
