XCMG XS143J Single Drum Rollers & Soil Compactors

Home Product Single Drum Roller Roller/Compactor

View larger image

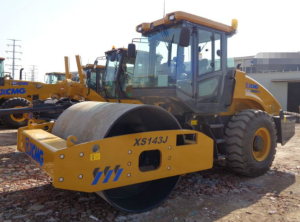

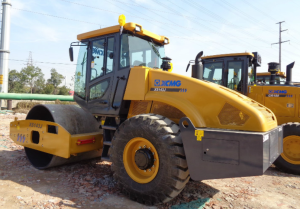

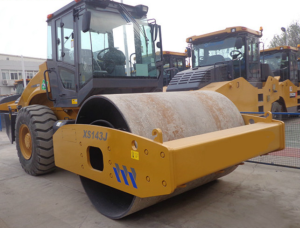

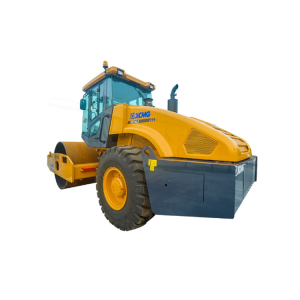

XCMG XS143J Single Drum Rollers & Soil Compactors

Engine Model：SDEC SC4H140.1G2

Operating Weight： 14000Kg
Axle Load Front：7300Kg

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

XCMG XS143J Single Drum Rollers & Soil Compactors

XS143J has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc, and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects, with the maximum working depth up to 1.0m and above. Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, port, etc.

Parameter

Operating weight	14000Kg
Axle load, front	7300Kg
Axle load, rear	6700Kg
Static linear load	315N/cm
Engine manufacturer	SDEC
Engine Model	SC4H140.1G2
Rated Power	103Kw/1800rpm
Speed range(Forward)Speed (1)(2)(3)(4)	0-2.85/0-5.08/0-11.7/-km/h
Speed range(Backward)Speed (1)(2)(3)	0-2.88/0-5.02/-km/h
Vibration frequency	28/33Hz
Vibration amplitude	1.9/0.95mm
Centrifugal force	274/190kN
Working width	2130mm
Max. gradeability	30%
Track radius, out	6800mm
Overall dimensions	6150×2300×3200mm
