Axle Load Front：8000Kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

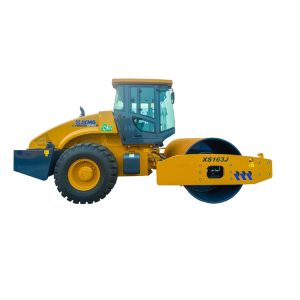

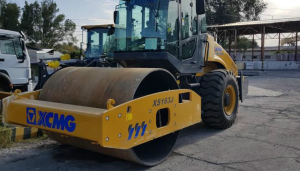

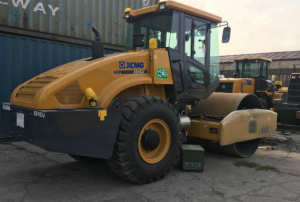

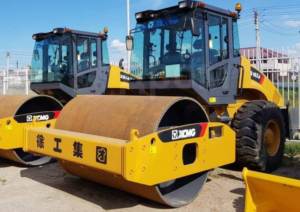

XCMG XS163J Single Drum Rollers & Soil Compactors
XS163J has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc, and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects, with the maximum working depth up to 1.0m and above. Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, port, etc.
Parameter
| Operating weight | 16000Kg |
| Axle load, front | 8000Kg |
| Axle load, rear | 8000Kg |
| Static linear load | 376N/cm |
| Engine manufacturer | SDEC |
| Engine Model | SC4H140.1G2 |
| Rated Power | 103Kw/1800rpm |
| Speed range(Forward)Speed (1)(2) | 0-2.93/0-5.76km/h |
| Speed range(Backward)Speed (1)(2)(3) | 0-2.93/0-5.76/-/km/h |
| Vibration frequency | 28/33Hz |
| Vibration amplitude | 1.9/0.95mm |
| Centrifugal force | 290/200kN |
| Working width | 2130mm |
| Max. gradeability | 30% |
| Track radius, out | 6800mm |
| Overall dimensions | 6150×2300×3200mm |
