Axle Load Front：10000Kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

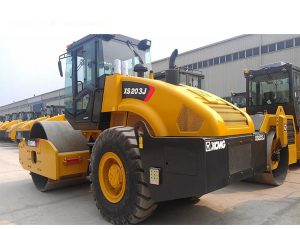

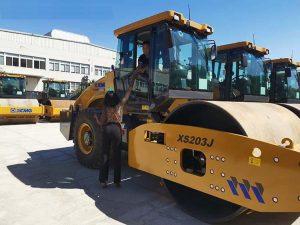

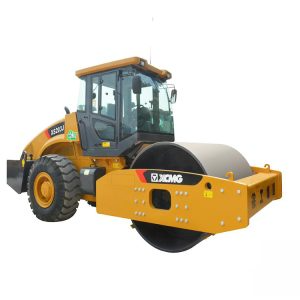

XCMG XS203J(Tire Ⅱ) Single Drum Rollers & Soil Compactors
XS203J(Tire Ⅱ) vibratory road roller is a high-efficiency energy-saving super-heavy-duty mechanical-driven single-drum vibratory road roller independently developed by XCMG.This product is mainly applicable for the compacting of ground and is suitable for the compacting operations of pebble, sandy soil, moraine soil, blasted rock, and clay as well as for compacting of concrete and stabilized soil foundation materials in various large projects. It’s an ideal compacting equipment for the construction of high-grade highways, airports, ports, dams, and industrial construction sites.
Parameter
| Operating weight | 20000Kg |
| Axle load, front | 10000Kg |
| Axle load, rear | 10000Kg |
| Static linear load | 470N/cm |
| Engine manufacturer | SDEC |
| Engine Model | SC8D175.2G2B1 |
| Rated Power | 128Kw/1800rpm |
| Speed range(Forward)Speed (1)(2)(3)(4) | 0-2.95/0-5.78/0-9.4/-km/h |
| Speed range(Backward)Speed (1)(2)(3) | -/-/-/ |
| Vibration frequency | 28/33Hz |
| Vibration amplitude | 1.9/0.95mm |
| Centrifugal force | 353/245kN |
| Working width | 2130mm |
| Max. gradeability | 30% |
| Track radius, out | 6500mm |
| Overall dimensions | 6220×2300×3200mm |
