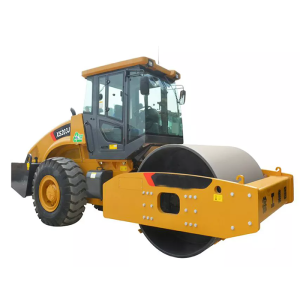

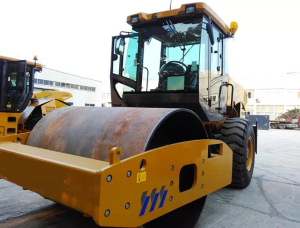

XCMG XS205S Single Drum Rollers
XS205S-2
XCMG XS205S Single Drum Rollers & Soil Compactors
VS


Engine Model:Cummins QSB5.9-C190
Operating Weight: 20000Kg
Axle Load Front:13500Kg

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

XCMG XS205S Single Drum Rollers & Soil Compactors


XS205S single drum roller is medium, self-propelled, full-hydraulic vibratory roller, has the big exciting force, high compaction efficiency, good compaction quality, used mainly for compaction operation of base coarse, sub-base coarse, stone filling of high-speed railway, high-grade highway, airport, harbor, dams and industrial construction site.

Performance Characteristics:
1. Hydraulic system
Adopt imported closed hydraulic drive system com- posed of variable displacement pump and motor to ensure better drive performance and gradeability.
Two gears infinitely variable speeds to ensure optimized working speeds under different working conditions.

2. Cumins engine
Equipped with Cumins electrical control en- gine,water-cooled, turbocharged with big power reservation, low oil consumption, small noises. Europe stage III emission standard.

3. Braking system
Braking system is made up with drive axle, wet type brakes at front drum speed reducer, and brake of closed hydraulic system. It owns travelling,parking, and emergency braking functions to ensure driving safety.

Parameter

Operating weight20000Kg
Axle load, front13500Kg
Axle load, rear6500Kg
Static linear load621N/cm
Engine manufacturerCummins
Engine ModelQSB5.9-C190
Rated Power142kW/190HP
Speed range(Forward)Speed (1)(2)(3)(4)0-4/0-5.9/0-10.6/-km/h
Speed range(Backward)Speed (1)(2)(3)-/-/-/
Vibration frequency28/33Hz
Vibration amplitude1.9/0.95mm
Centrifugal force385/270kN
Working width1600mm
Max. gradeability50%
Track radius, out6900mm
Overall dimensions/
