Axle Load Front：17000Kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

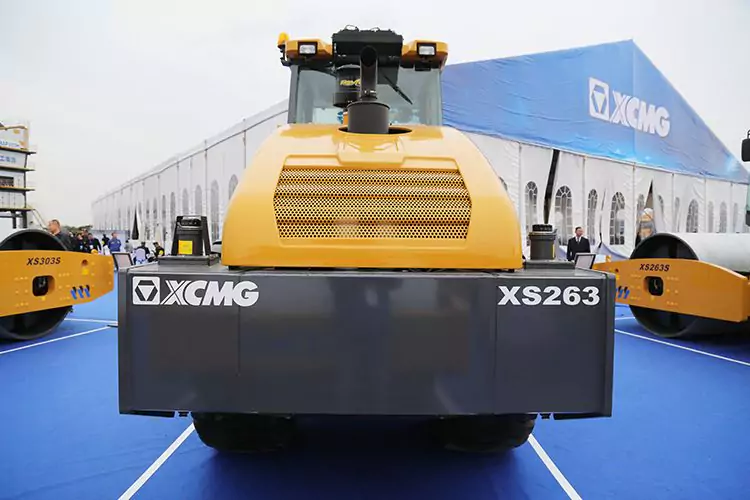

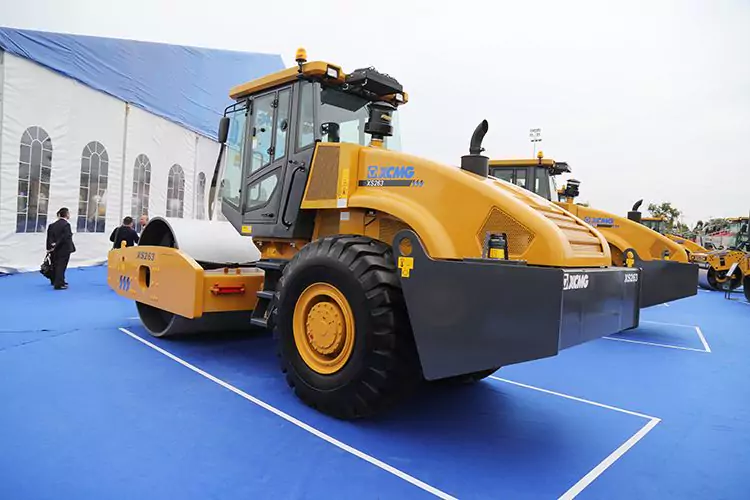

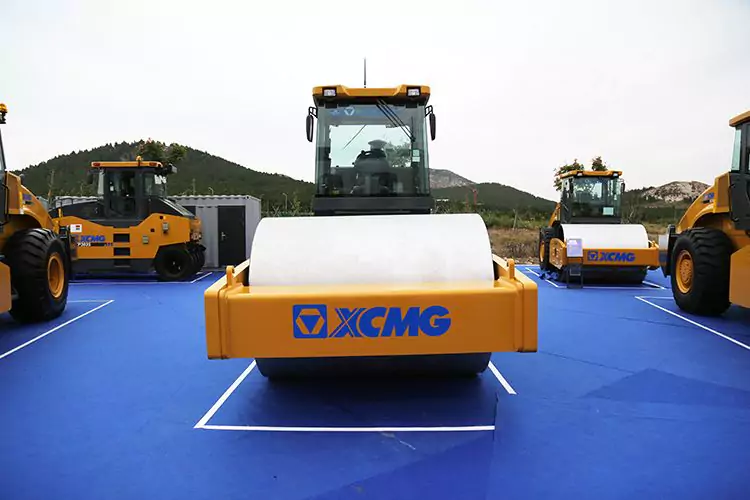

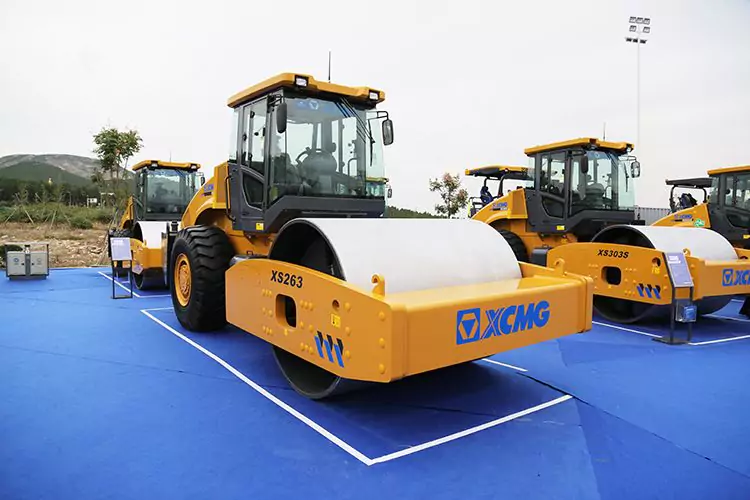

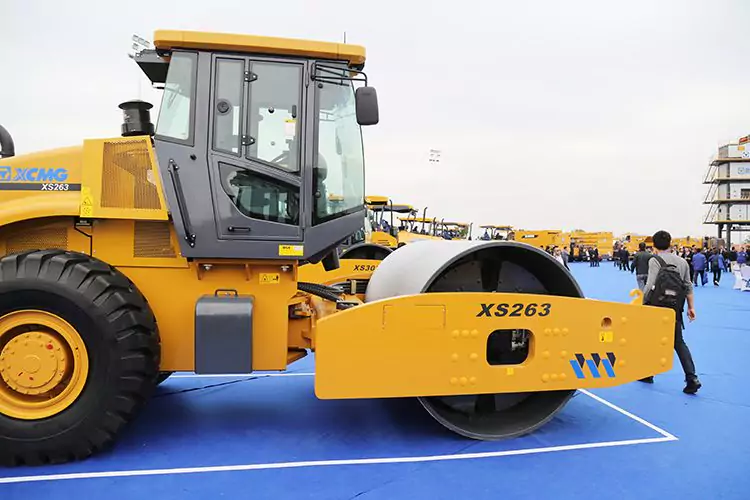

XCMG XS263 Single Drum Rollers & Soil Compactors
XS263 vibratory roller is a kind of extra-heavy self-propelled vibratory roller, mainly applicable for compaction work on base layer, sub-base layer of different materials and filling projects. It is an ideal choice for compacting high grade highway, airports, ports, dams and industrial construction sites. The application of high power engine and anti-skid hydraulic drive system better suits construction requirements in different regions.
Parameter
| Operating weight | 26000Kg |
| Axle load, front | 17000Kg |
| Axle load, rear | 9000Kg |
| Static linear load | 784N/cm |
| Engine manufacturer | SDEC |
| Engine Model | SC7H220.1G3 |
| Rated Power | 162Kw/2200rpm |
| Speed range(Forward)Speed (1)(2)(3)(4) | 0-3.5/0-5.2/0-5.2/0-10.6km/h |
| Speed range(Backward)Speed (1)(2)(3) | -/-/-/ |
| Vibration frequency | 27/32Hz |
| Vibration amplitude | 1.9/0.95mm |
| Centrifugal force | 410/300kN |
| Working width | 2170mm |
| Max. gradeability | 50% |
| Track radius, out | 7020mm |
| Overall dimensions | 6937×2430×3330mm |
