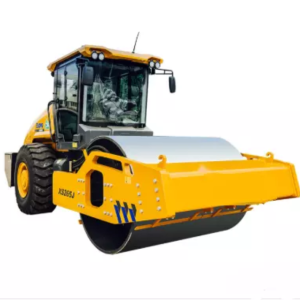

XCMG XS265J Single Drum Rollers
XS265J
XCMG XS265J Single Drum Rollers & Soil Compactors-1
XCMG XS265J Single Drum Rollers & Soil Compactors
VS


Engine Model:Shangchai SC7H190.2G3
Operating Weight: 26000Kg
Axle Load Front:13000Kg

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

XCMG XS265J Single Drum Rollers & Soil Compactors


1. Electronically controlled direct-shift power box transmission eliminates the foot clutch, bringing a new driving experience for automatic transmission vehicles;

2. Energy saving and high efficiency: Shangchai SC7H engine is matched to operate in the optimal fuel consumption working area, and the comprehensive fuel consumption is reduced by 10%; the electronically controlled direct shift power box is a moving shaft structure, and the comprehensive fuel consumption is reduced by 3%; the whole machine has a neutral idle function, and the comprehensive fuel consumption is reduced by 3%. Fuel consumption is reduced by 4%; the operating speed of the entire machine is at least 10% higher than that of competing products, and the operating efficiency is increased by 10%;

3. The cab is equipped with a large area of glass to provide a wide field of view from all angles; the fully-packaged interior has good sealing and reduces indoor noise; the interior space is large, and it comes standard with air conditioning and six air outlets for comfortable driving; the cab adopts a three-dimensional Vibration reduction, the vibration reduction effect is greatly improved.

Parameter

Operating weight26000Kg
Axle load, front13000Kg
Axle load, rear13000Kg
Static linear load582N/cm
Engine manufacturerShangchai
Engine ModelSC7H190.2G3
Rated Power140Kw/1800rpm
Speed range(Forward)Speed (1)(2)(3)(4)0-2.95/0-9.4/-/-km/h
Speed range(Backward)Speed (1)(2)(3)-/-/-/
Vibration frequency27/32Hz
Vibration amplitude1.9/0.95mm
Centrifugal force405/290kN
Working width2170mm
Max. gradeability35%
Track radius, out7000mm
Overall dimensions/
