XCMG XS335 Single Drum Rollers & Soil Compactors

Home Product Single Drum Roller Roller/Compactor

View larger image

Engine Model：Weichai WP12G375

Operating Weight： 33500Kg
Axle Load Front：22500Kg

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

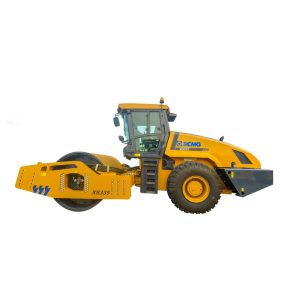

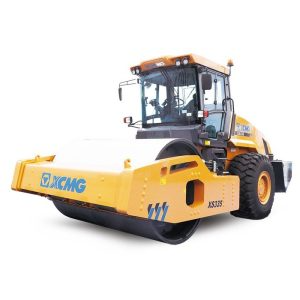

XCMG XS335 Single Drum Rollers & Soil Compactors

XS335 full-hydraulic single-drum vibratory road roller is a super-high tonnage vibratory road roller oriented for the compacting of high-depth rock fills and the super-thick pavements as well as the compacting of conventional pavements and is an ideal compacting machine for dam rock fills, super-thick water-stability bases, road substrate, and road beds. This machine is powered by high-power engine and multiple adaptability designs are taken for the compacting of rock filled dams to better meet the construction needs of dams.

Parameter

Operating weight	33500Kg
Axle load, front	22500Kg
Axle load, rear	11000Kg
Static linear load	938N/cm
Engine manufacturer	Weichai
Engine Model	WP12G375
Rated Power	276Kw/2200rpm
Speed range(Forward)Speed (1)(2)(3)(4)	0-4/0-5/0-5.5/0-10.4km/h
Speed range(Backward)Speed (1)(2)(3)	-/-/-/
Vibration frequency	26/31Hz
Vibration amplitude	2.2/1.1mm
Centrifugal force	670/480kN
Working width	2400mm
Max. gradeability	45%
Track radius, out	7060mm
Overall dimensions	7592×2800×3478mm
