View larger image
Axle Load Front：24000Kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

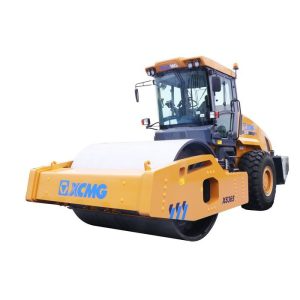

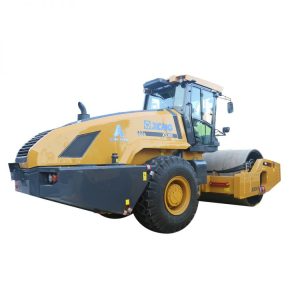

XCMG XS365 Single Drum Rollers & Soil Compactors
XS365 full-hydraulic single-drum vibratory road roller is a super-high tonnage vibratory road roller oriented for the compacting of high-depth rock fills and the super-thick pavements as well as the compacting of conventional pavements and is an ideal compacting machine for dam rock fills, super-thick water-stability bases, road substrate, and road beds. This machine is powered by high-power engine and multiple adaptability designs are taken for the compacting of rock filled dams to better meet the construction needs of dams.
Parameter
| Operating weight | 36000Kg |
| Axle load, front | 24000Kg |
| Axle load, rear | 12000Kg |
| Static linear load | 1000N/cm |
| Engine manufacturer | Weichai |
| Engine Model | WP12G375 |
| Rated Power | 276Kw/2200rpm |
| Speed range(Forward)Speed (1)(2)(3)(4) | 0-4/0-5/0-5.5/0-10.4km/h |
| Speed range(Backward)Speed (1)(2)(3) | -/-/-/ |
| Vibration frequency | 26/31Hz |
| Vibration amplitude | 2.3/1.2mm |
| Centrifugal force | 730/540kN |
| Working width | 2400mm |
| Max. gradeability | 40% |
| Track radius, out | 7060mm |
| Overall dimensions | 7592×2900×3478mm |
Request a Quote
