Drilling depth：1000m
Max. diameter of working floor： 500mm
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

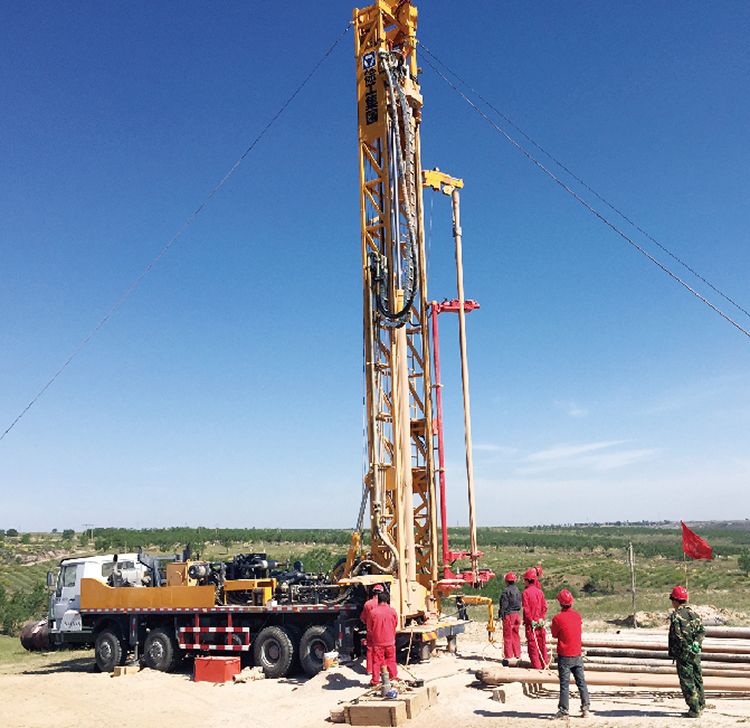

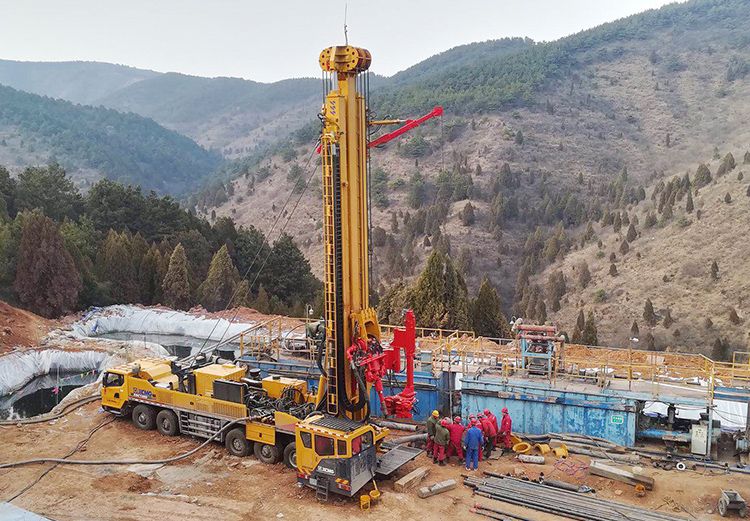

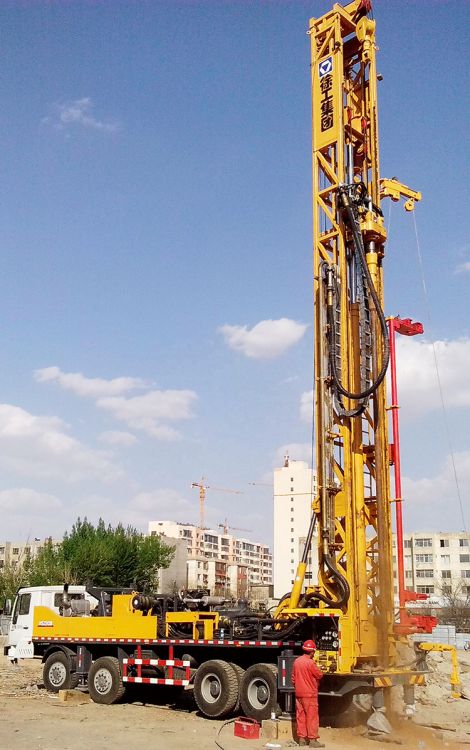

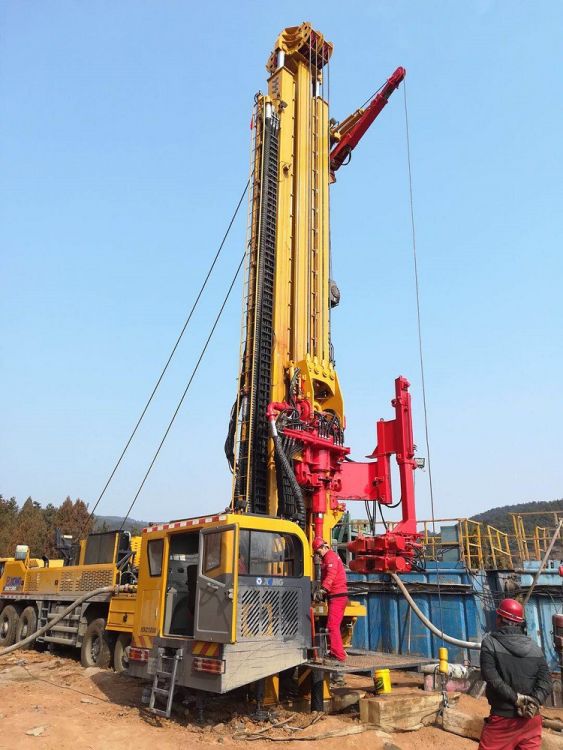

XCMG XSC10-500 Water Well Drilling Rig
XSC/XSL series deep(water) well drilling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency. Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc., and can also be used for coal-mine gas exploitation or salvage work.
Parameter
| Drilling depth | 1000m |
| Max. diameter of working floor | 500mm |
| Max. liting capacity | / |
| Max. feeding capacity | / |
| Max. lifting speed | 27m/min |
| Max. feeding speed | 61m/min |
| Rated power | 154kw |
| Hoisting capacity | 45kn |
| Max. breakout torque | / |
| Weight | 36t |
