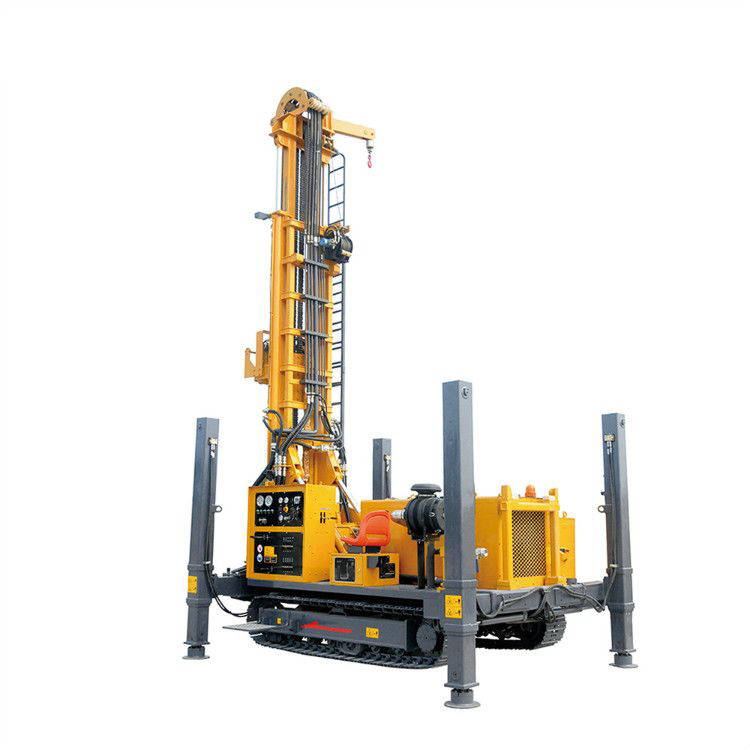

XCMG XSL4-180 Deep Well Drilling Rig
VS


Drilling depth400m(φ89)
Max. diameter of working floorφ400


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

XCMG XSL4-180 Deep Well Drilling Rig


XCM-G water well drilling rig 300 meter machine XSL4-180 uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency.
1, Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.
2, The top-mounted driving head principal shaft has a great drift diameter,which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.
3, Mature and reliable hydraulic top drive power head with large bearing capacity and good sealing effect.
4, The gap adjustable telescopic drill collar can meet the requirements of long casing construction and has high work eficiency.
5, Unique hydraulic matching technology for high system efficiency.
6, Integrated visualization pressurize and pressurize decompression feed system for fine adjustment of diling pressure according to dilling depth.

Parameter

Drilling depth400m(φ89)
Max. diameter of working floorΦ400mm
Max. liting capacity200kn
Max. feeding capacity100kn
Max. lifting speed26m/min
Max. feeding speed52m/min
Rated power92kw
Hoisting capacity15kn
Max. breakout torque/
Weight10.5t
