Max Pull/Thrust Force：133kN
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

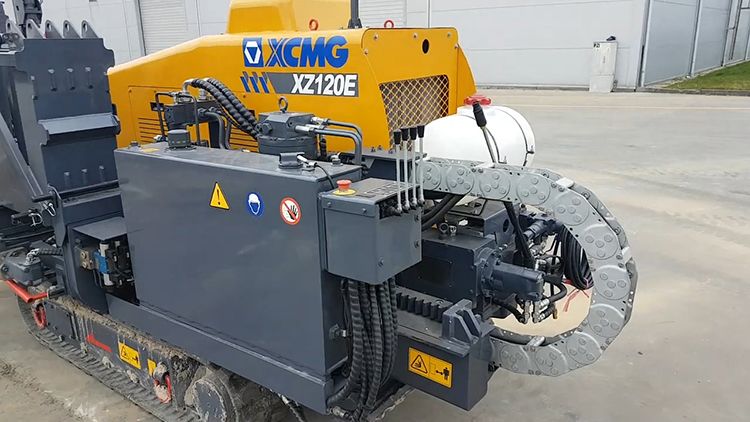

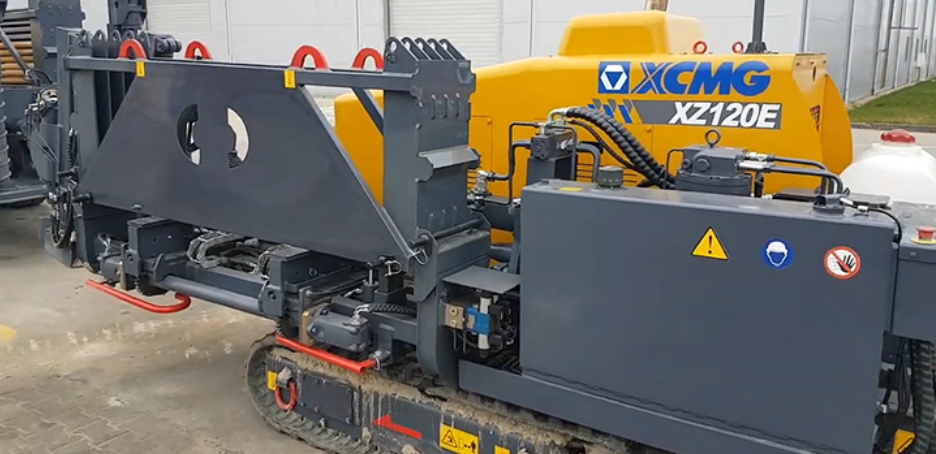

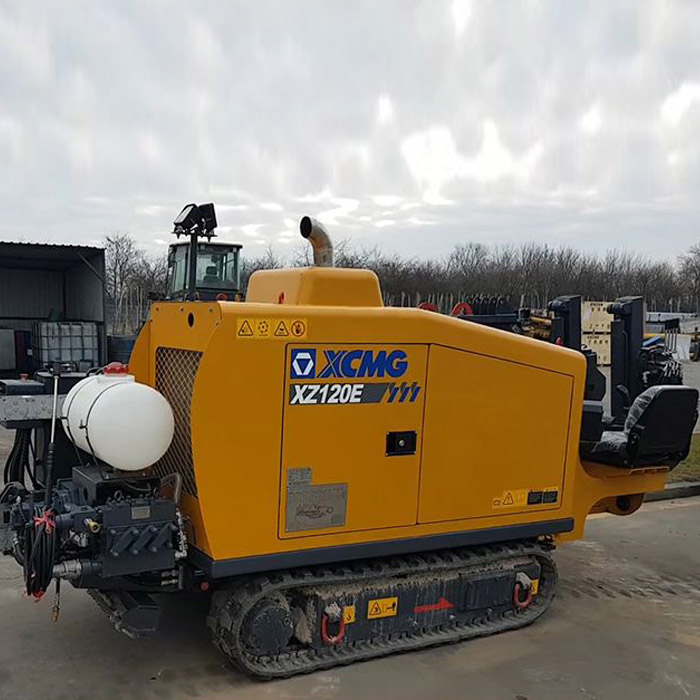

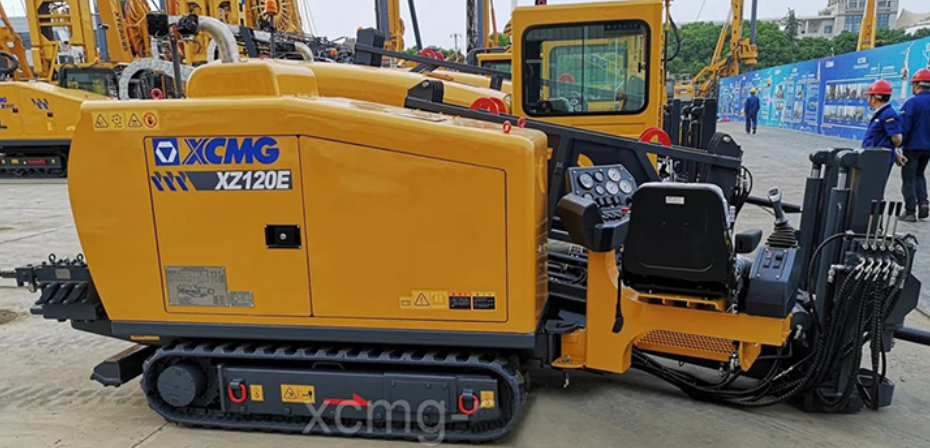

XCMG XZ120E Horizontal Directional Drilling Rig
It’s applicable for pipeline construction about Municipal Construction (Electric,Communication,Water Supply) and Natural Gas,Oil Delivery.
Parameter
| Engine | |
| Model | Cummins 4BTA3.9-C100 |
| Power rating | 74/2200kW/r/min |
| Thruet-Pull | |
| Max pull/thrust force | 133kN |
| Max pull/thrust speeed | 40m/min |
| Rotation | |
| Torque | 3000N·m |
| Max spindle speed | 230r/min |
| Mud pump | |
| Max fiow rate | 100L/min |
| Max pressure | 4MPa |
| Pipe | |
| Diameter×Length | φ54×1.8mm×m |
| Loader Crane | |
| Lifting weight | / |
| Loading capacity | / |
| Max inclination angle | 18° |
| Max backreamer diameter | φ500mm |
| Weight | 6t |
| Diamension（L×W×H） | 4500×2015×1450mm |
| Power Station dimension | / |
| Power Station weight | / |
