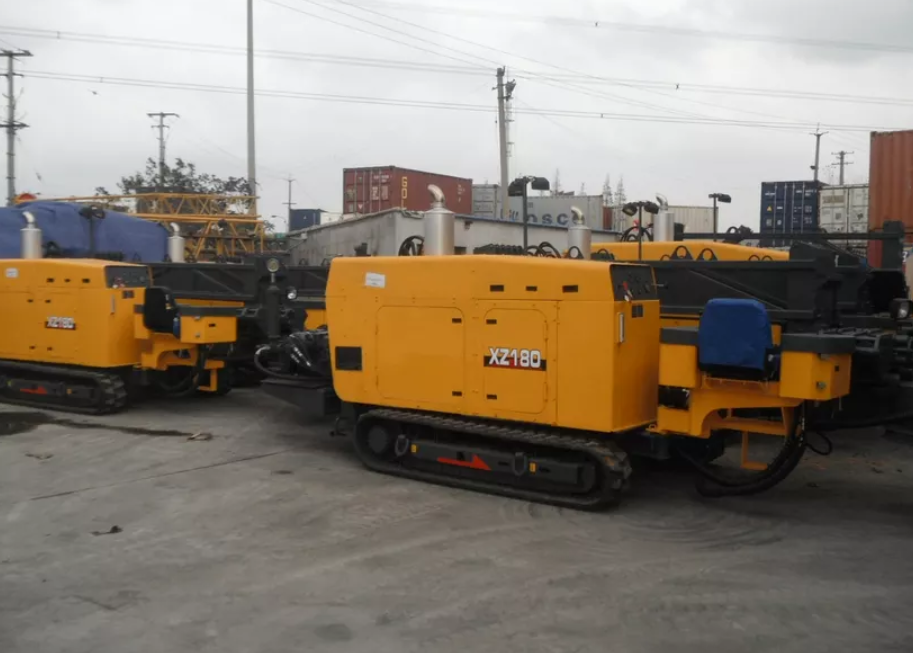

XCMG XZ180 Horizontal Directional Drilling Rig
VS


Engine Model:Cummins 6BT5.9-C130
Power Rating: 97/2200kW/r/min
Max Pull/Thrust Force:180kN

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

XCMG XZ180 Horizontal Directional Drilling Rig


The XZ180 horizontal directional drill dual -speed power head, running at low speed during drilling and dragging to ensure smooth construction; when the drilling rod is carried back and forth, the power head can accelerate the slide, reduce the auxiliary time, and improve the efficiency of work. The rubber crane has the least influence on roads, lawns and scenic spots. Applying the floating tiger tiger clamp of our company can effectively extend the service life of the drill rod. Rotate the operation desk, increase the scope of the operator’s vision, reduce the fatigue of the operator, and make the operating rig more simple and comfortable.

Parameter

Engine
ModelCummins 6BT5.9-C130
Power rating97/2200kW/r/min
Thruet-Pull
Max pull/thrust force180kN
Max pull/thrust speeed23m/min
Rotation
Torque6000N·m
Max spindle speed150r/min
Mud pump
Max fiow rate250L/min
Max pressure8MPa
Pipe
Diameter×Lengthφ60×3mm×m
Loader Crane
Lifting weight/
Loading capacity/
Max inclination angle22°
Max backreamer diameterφ600mm
Weight8.5t
Diamension(L×W×H)6500×2270×2340mm
Power Station dimension/
Power Station weight/
