Max Pull/Thrust Force:320kN
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

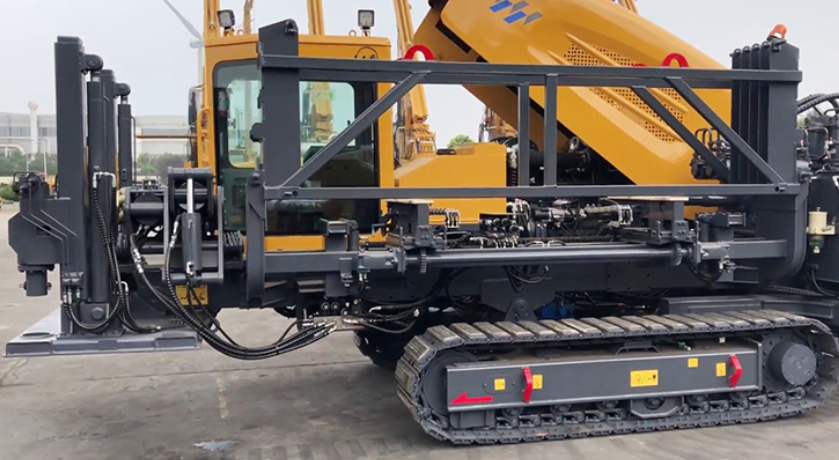

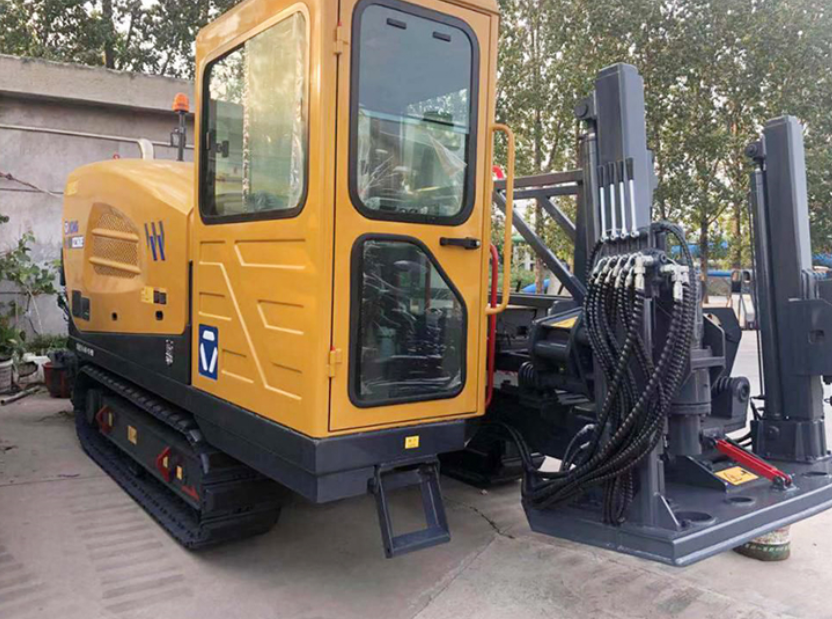

XCMG XZ320B Horizontal Directional Drilling Rig
Performance and Characteristics
1. Pluralities of advanced control technologies are adopted, including the PLC control, electro-hydraulic proportion control, load sensitive control, etc.
2. The pipe automatic disassembly and assembly device can improve the working efficiency, relieves the labor intensity and manual error operation of the operators, and reduces the construction personnel and the construction cost.
3. Automatic anchor: The down and the up of the anchor is driven by hydraulics. The anchor is great in force and is easy and convenient to operate.
4. The dual-speed spindle drive is operated with low speed when drilling and dragging back to ensure smooth construction, and can speed up to slide with 2 times of speed to reduce the auxiliary time and improve the working efficiency when returning and disassembling the drilling rod with empty loads.
5. The engine has the turbine torque increment characteristic, which can instantly increase the power to ensure the drilling power when coming across the complex geology.
6. Spindle drive has high rotation speed, good boring effect and high construction efficiency.
7. Single-lever operation: It is convenient to precisely control and is easy and comfortable to operate in performing various functions such as thrust/pullback and rotary, etc.
8. The rope controller can carry out the disassembly and assembly vehicle operation with single person, with safe and high-efficiency.
9. The floating vice with patent technology can effectively prolong the service life of the pipe.
10. The engine, hydraulic parameter monitoring alarm and a plurality of safety protection are provided to effectively protect the safety of the operators and the machines.
Parameter
Engine | |
Model | Cummins QSB5.9-C210 |
Power rating | 154/2200kW/r/min |
Thruet-Pull | |
Max pull/thrust force | 320kN |
Max pull/thrust speeed | 22m/min |
Rotation | |
Torque | 12000N·m |
Max spindle speed | 140r/min |
Mud pump | |
Max fiow rate | 320L/min |
Max pressure | 8MPa |
Pipe | |
Diameter×Length | / |
Loader Crane | |
Lifting weight | / |
Loading capacity | / |
Max inclination angle | 20° |
Max backreamer diameter | / |
Weight | 10500kg |
Diamension(L×W×H) | / |
Power Station dimension | / |
Power Station weight | / |
